DFL-2100/DFL-2400 Intrusion Detection System User Manual
89
Select discontinuous time period:
For discontinuous time period, DFL-2100/ DFL-2400 IDS Reporting System displays
a visual calendar to select required dates after the system manager clicks on “>>” key.
This calendar supports multiple choices and provides buttons for the system manager to
conveniently quick select time periods. The details of all functions and components are
described as following.

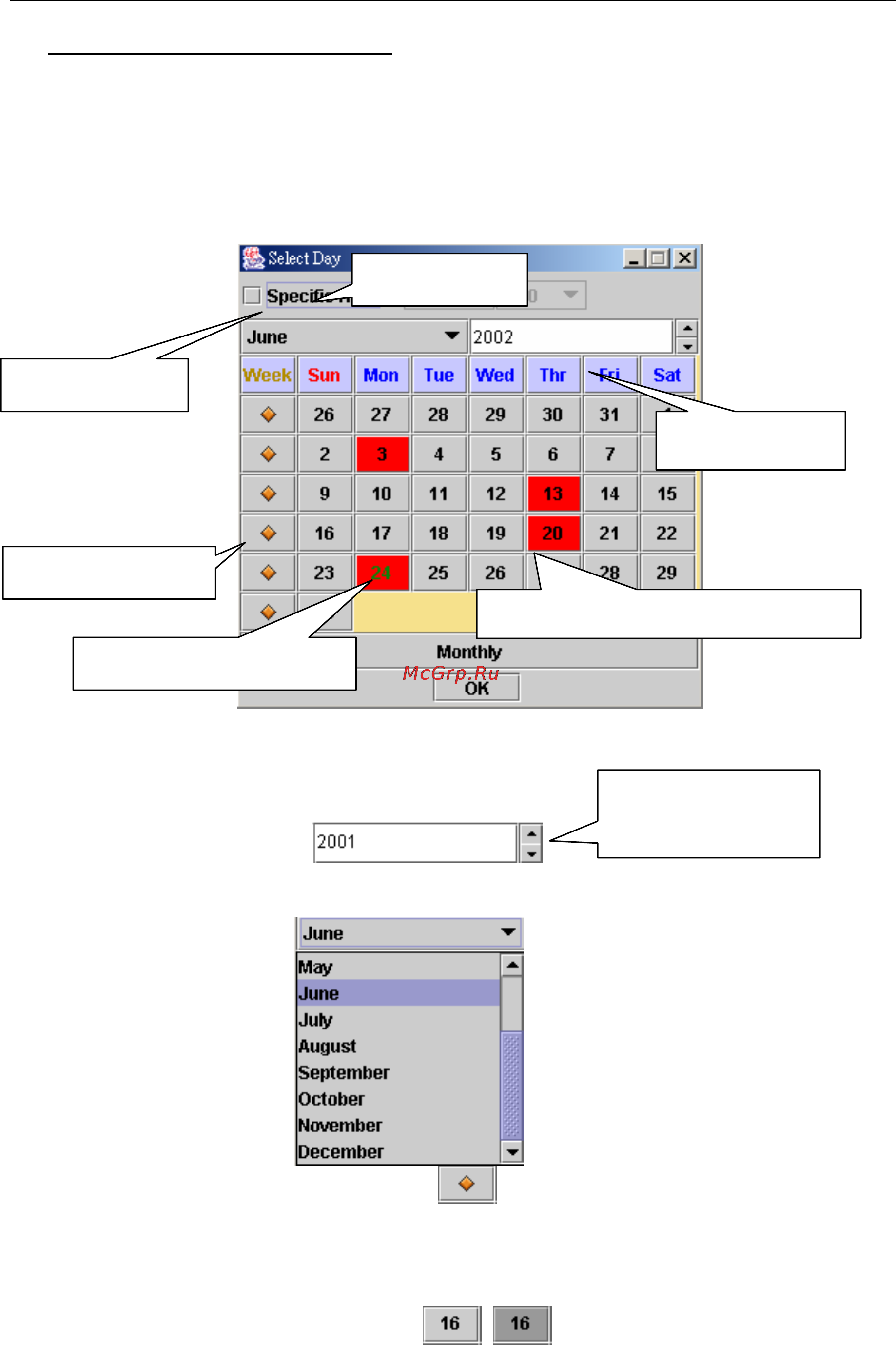

Figure 8-23: The selection of discontinuous periods
Notes of selection:
1. The field of year:
Use the up and down scrolling button to decide which year to display.
2. The field of month:
3. The selection button of week:
Click on the week selection button to select a week and click once more
to cancel this selection. When this button is selected, it is dark gray.
Otherwise, it is bright gray.
4. The selection button of day:
Time selection
“Week” button
Red means attack events occurred.
“Year” button
“Month” button
Green represent today
Up and down
scrolling button
