DFL-2100/DFL-2400 Intrusion Detection System User Manual
4
5

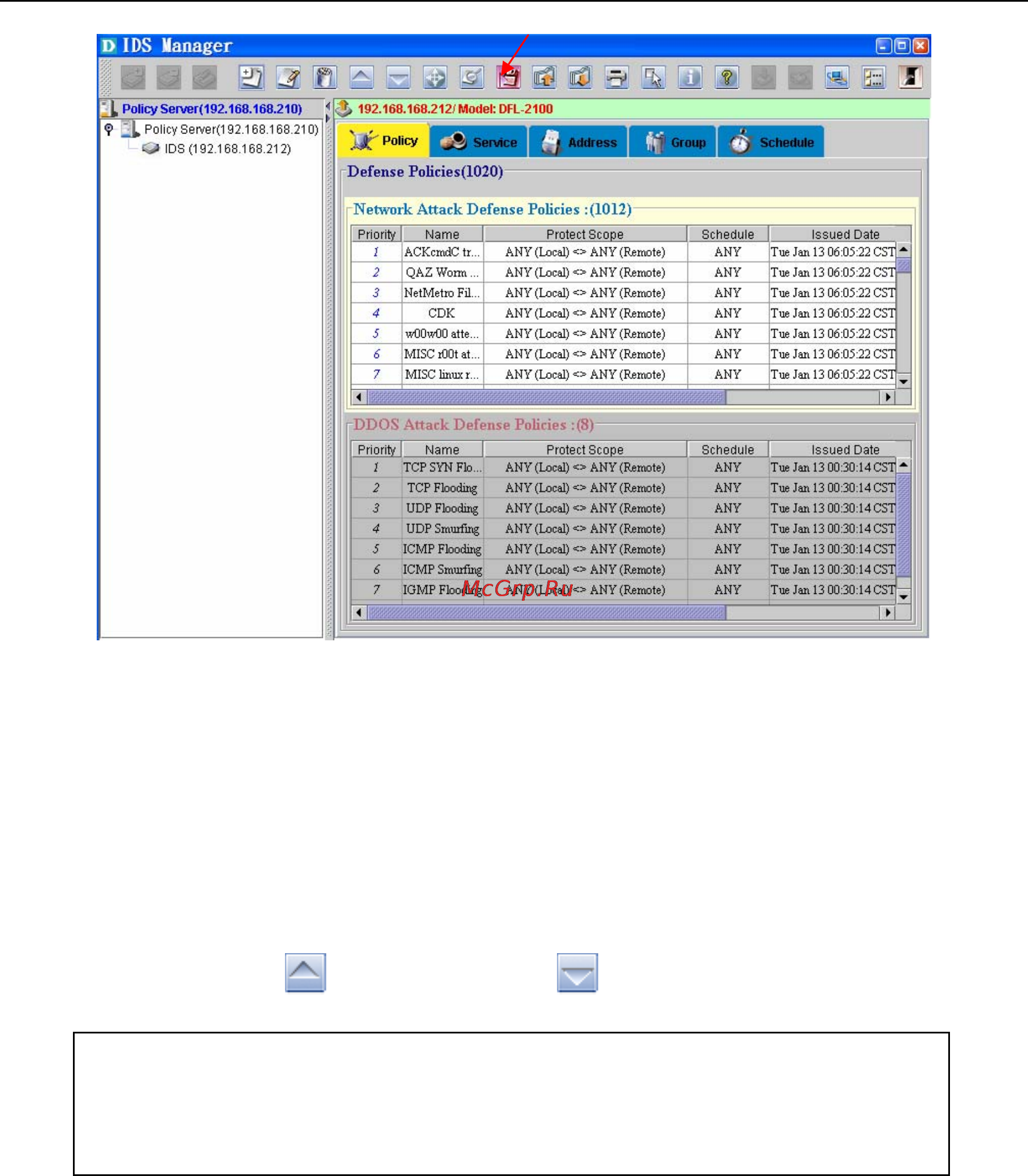

Figure 5-5: Click the “Confirm button” after change defense policies
Change the Priority of Policies
The detection policies may not mutual exclusive, i.e. a single packet may match
different policies concurrently. In order to solve this kind of conflicts, a priority mechanism
is introduced. The rule is: policy with higher priority is checked first, and the action is
determined according to first matched policy.
For administrators to change the priority of policies, there are two buttons on the
toolbar: “Higher Priority”
and “Lower Priority” .
Note In order to change the priority of policies, you have to double click
the policy book table first, a selected table will be highlighted. And
then select a policy to move it up or down. When it moves up, it
gets higher priority; otherwise, it gets lower priority.
