DFL-2100/DFL-2400 Intrusion Detection System User Manual
2
5

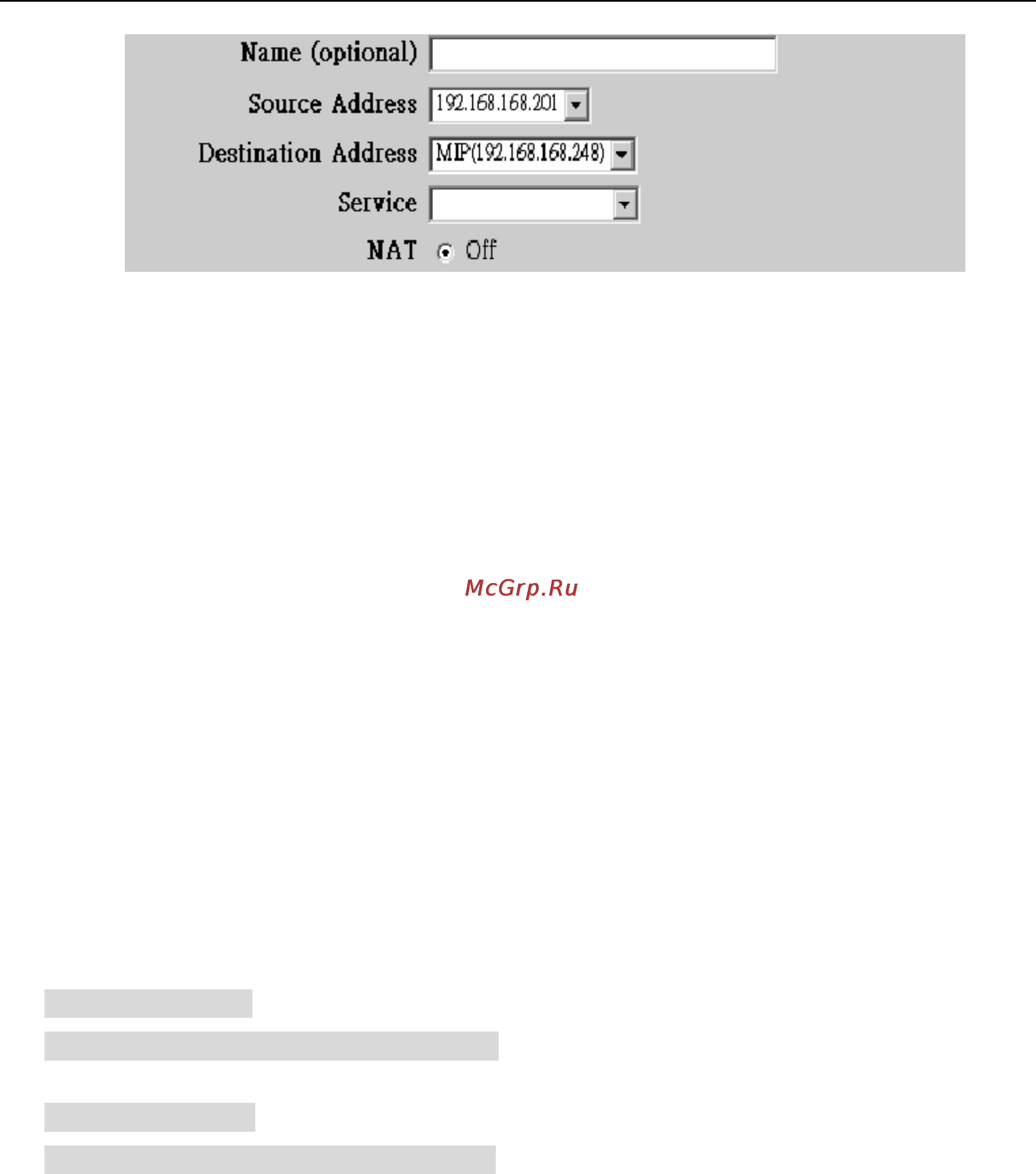

Figure 3-4: firewall must open the private service for DFL-2100/DFL-2400
set state
Description: There are four states in DFL-2100/DFL-2400. ‘Normal’ means DFL-
2100/DFL-2400 works normally according to given policies. ‘Protect’
means DFL-2100/DFL-2400 works like an access controller. It would let
packets pass according to given policies. ‘Stop’ means DFL-2100/DFL-
2400 would drop all the packets it receives. And ‘Bypass’ means DFL-
2100/DFL-2400 would let all the packets pass through freely without any
checks.
Syntax: set state [normal|protect|bypass|stop]
Arguments:
normal Set DFL-2100/DFL-2400 works normally
according to given policies
protect Set DFL-2100/DFL-2400 works like an
access controller
bypass Set DFL-2100/DFL-2400 would let all the
packets pass through freely without any
checks
stop Set DFL-2100/DFL-2400 drop all the
packets it receives
Example:
Ex 1:
>>set state normal
Change system state to NORMAL mode.
Ex 2:
>>set state bypass
Change system state to BYPASS mode.
set snmp
Description: Use the set snmp command to configure the DFL-2100/DFL-2400 Device for
Simple Network Management Protocol to gather statistical information
from the DFL-2100/DFL-2400 device and receive notification when events
of interest occur.
Syntax: set snmp [system | community | trap]
Arguments:
System<name> Define the physical location, name and
contract of the DFL-2100/DFL-2400
community < ro | rw | trap> Defines the name and the permission for
the SNMP community.
