DFL-2100/DFL-2400 Intrusion Detection System User Manual
41

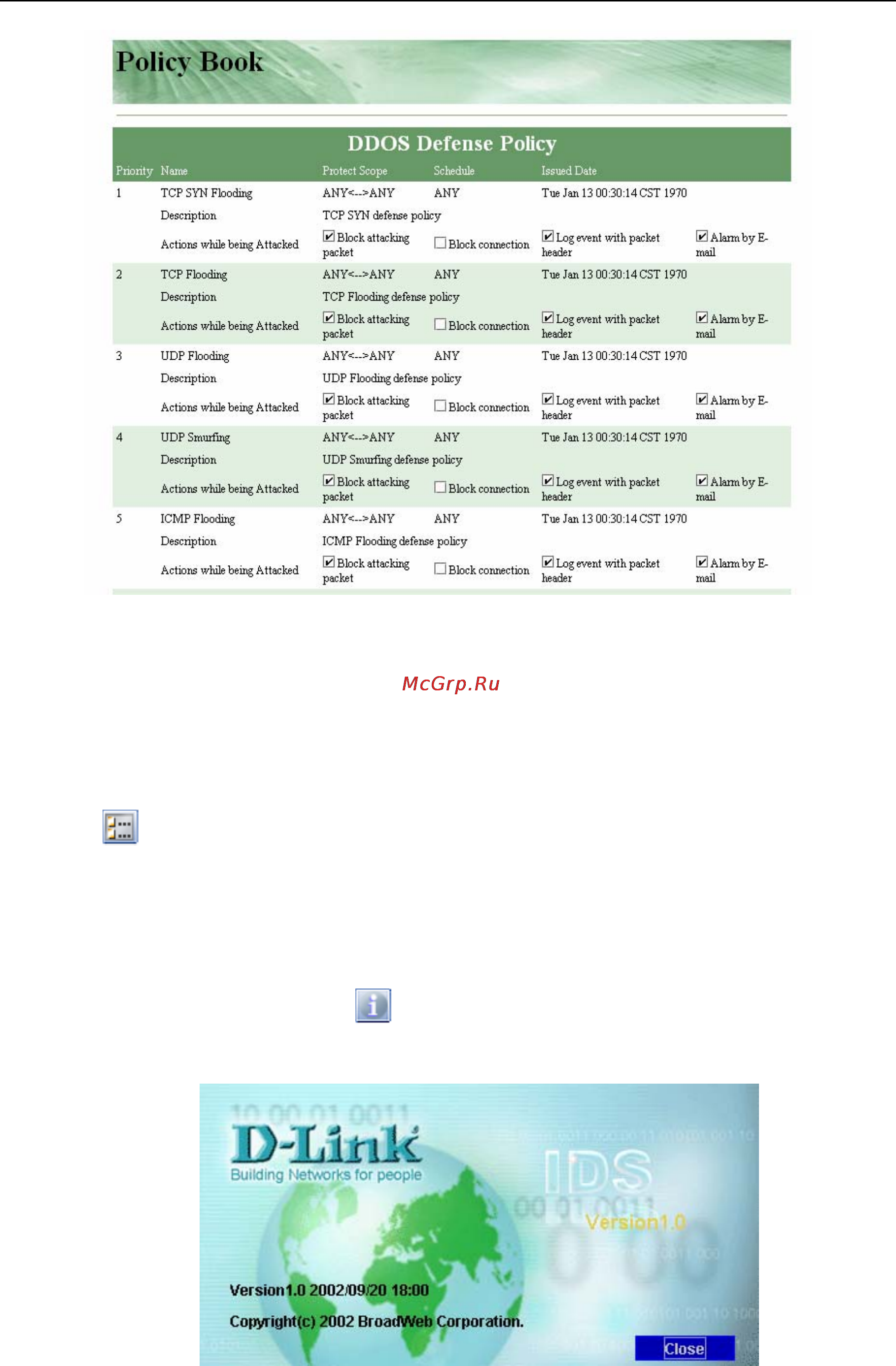

Figure 4-17: Print Policy Book Preview Screen
DFL-2100/DFL-2400 IDS Reporting System
The DFL-2100/DFL-2400 IDS Reporting System is an advance report system. Its
include the real time attack monitor, real time traffic monitor, and advance attack event
search system. We will show the subsystem detail at chapter 8. When the “Reporter”
button
on the toolbar is pressed, we will go into the “DFL-2100/ DFL-2400 IDS
Reporting System” and get the more detail attack events messages.
About DFL-2100/DFL-2400 IDS Management System
When the “About” button on the toolbar is pressed, the current version
information will be show by the popup window. Click “Close” to close this screen.
Figure 4-18: DFL-2100/ DFL-2400 Management System information
