DFL-2100/DFL-2400 Intrusion Detection System User Manual

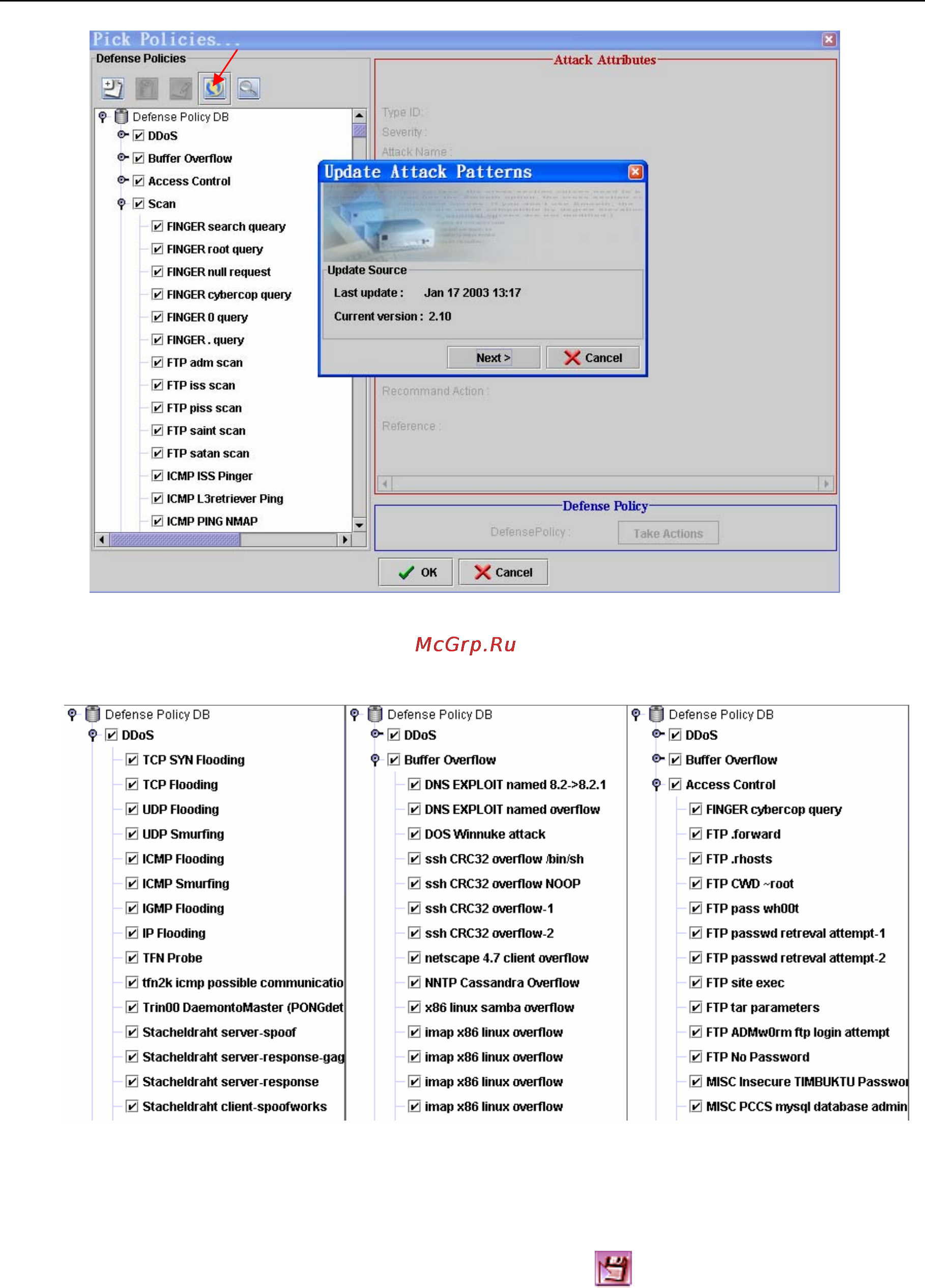

Figure 5-3: download latest attack pattern

4. You can find new defense policies in the policy list when you finish the

update.

Figure 5-4 : select your defense policies

5. When we select the defense policies, click the “OK” button return to the

main manage window. All the changes to the defense policies will not

take effect until the red-lighted Confirm button is clicked.
