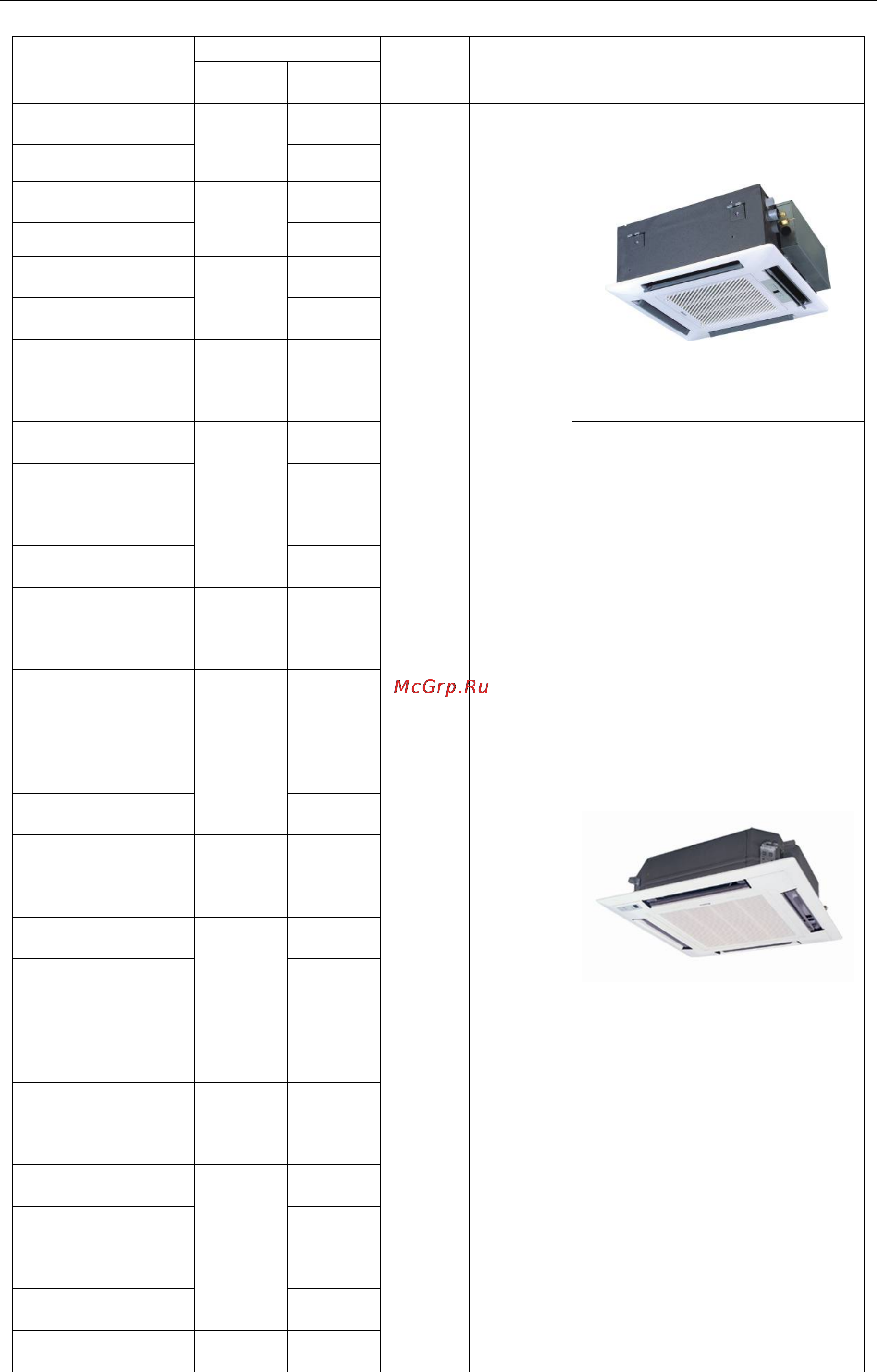

Dc Inverter VRF plus Water Heater Solution Service Manual PRODUCT
6
1.2.4 Cassette type
Model
Capacity
Ref
Power
Supply
Appearance
Cooling
(Btu/h)
Heating
(Btu/h)
GMV-R22T/NaA-K
7506
8530
R410A
220~240V
~
1Ph~50Hz
GMVL-R22T/NaA-K /
GMV-R28T/NaA-K
9550
10900
GMVL-R28T/NaA-K /
GMV-R36T/NaA-K
12280
13650
GMVL-R36T/NaA-K /
GMV-R45T/NaA-K
15360
17060
GMVL-R45T/NaA-K /
GMV-R28T/Na-K
9550
10900
GMVL-R28T/Na-K /
GMV-R36T/Na-K
12280
13650
GMVL-R36T/Na-K /
GMV-R45T/Na-K
15360
17060
GMVL-R45T/Na-K /
GMV-R50T/Na-K
17060
19790
GMVL-R50T/Na-K /
GMV-R56T/Na-K
19100
21500
GMVL-R56T/Na-K /
GMV-R63T/Na-K
21500
23880
GMVL-R63T/Na-K /
GMV-R71T/Na-K
24230
27300
GMVL-R71T/Na-K /
GMV-R80T/Na-K
27300
30030
GMVL-R80T/Na-K /
GMV-R90T/Na-K
30700
34120
GMVL-R90T/Na-K /
GMV-R100T/Na-K
34121
37532
GMVL-R100T/Na-K
/
GMV-R112T/Na-K
38210
42650
GMVL-R112T/Na-K /
GMV-R125T/Na-K 42650 46062
