Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
142

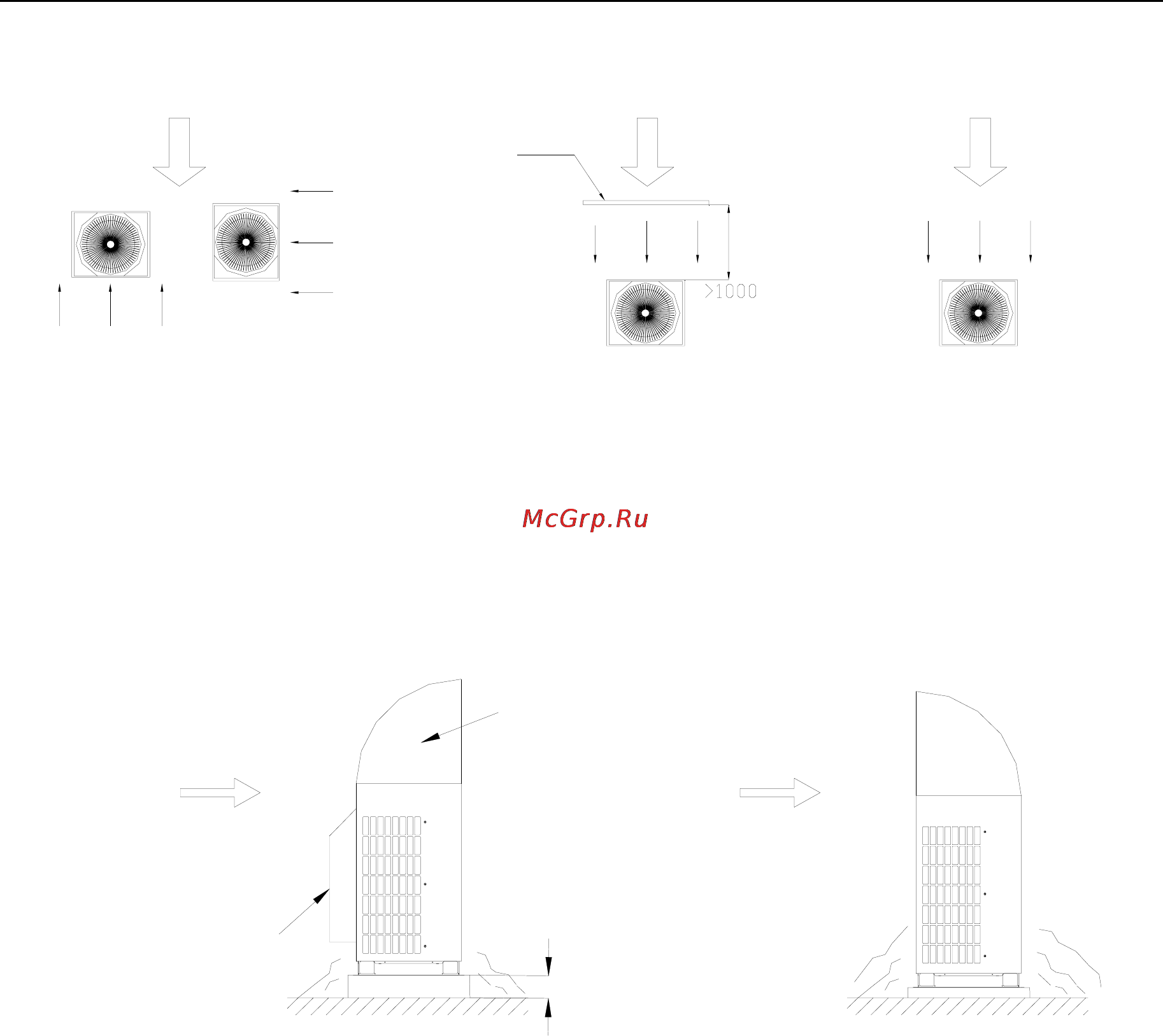

☆In consideration of seasonal wind during installation of outdoor units
Incorrect
Correct
Fresh air inlet
One side (rear side)
Fresh air inlet
One side (rear side)
Protector
In this state, defrosting time will be prolonged.
Fresh air inlet
One side (rear side)
Fresh air inlet
One side (rear side)
Correct
☆ In consideration of snow during installation of outdoor units
It is required to equip protectors on air outlet and air inlet and a higher foundation base to prevent
snow from covering air inlet and outlet.
Protector of air outlet
(provide at field)
Seasonal wind
Protector of air inlet
(provide at field)
Height of base in consideration of snow
Correct
Seasonal wind
Incorrect
