Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
195
gradient smooth and straight, avoid intersecting with other pipelines. The height of the
clamp fixing the pipe hanger frame shall be adjustable and fixed from the outer of thermal
insulation.
3).Distance between hanger frames:
Outer diameter of water
pipe (mm)
ф≤25 32＞ф≥25 ф≥32
Spacing between
horizontal pipes (mm)
800 1000 1500
Spacing between
standpipes (mm)
1500 2000
Each standpipe shall have two hanger frames at least.

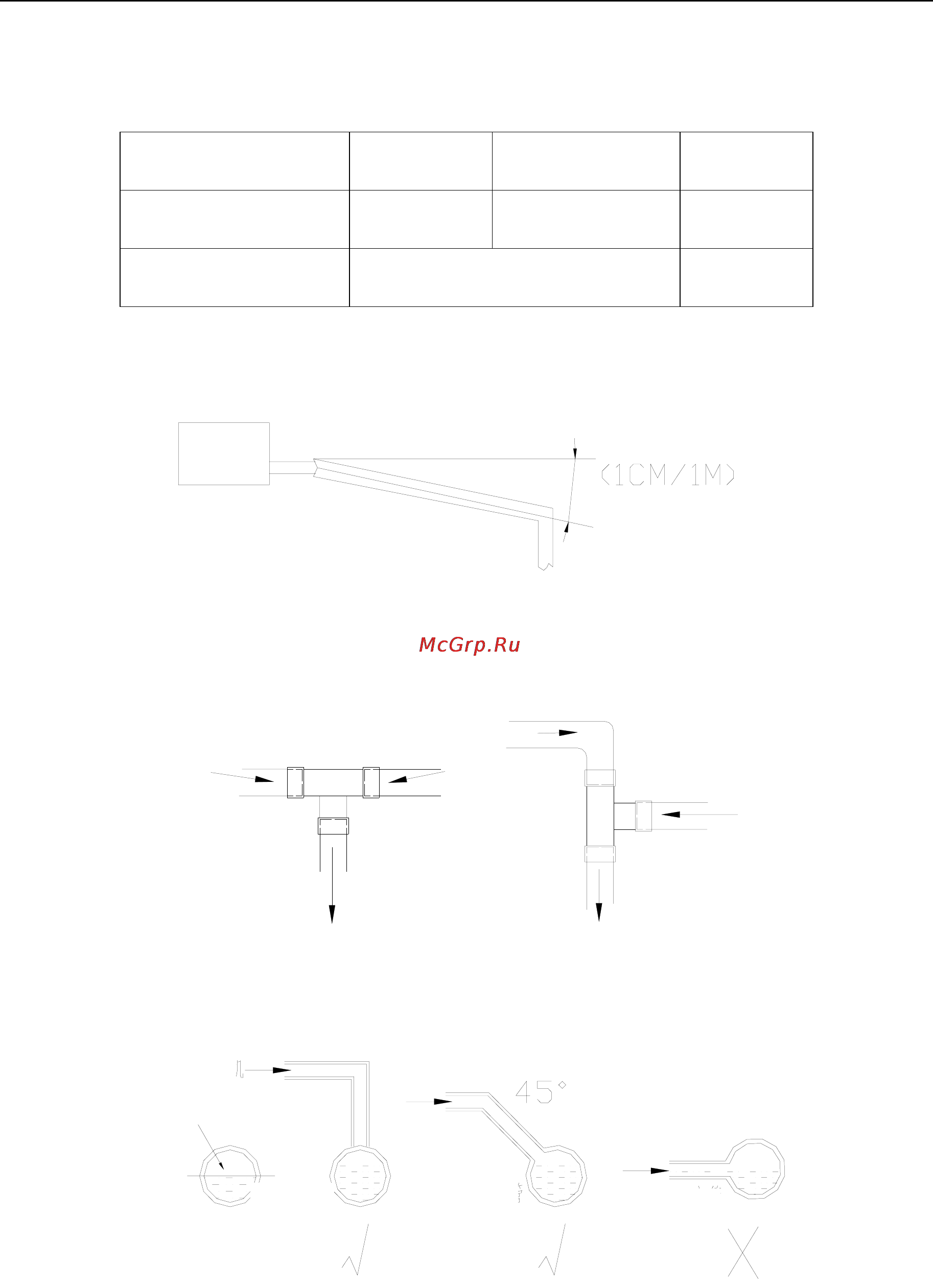

4). The gradient of condensate pipe shall be over 1% and the gradient of main pipe shall not
be less than 0.3%, while there shall be no overhanging slope.
5). When connecting the 3-way section of condensate pipe, the 2-way straight section on
3-way pipe shall be on the same gradient. The two ends of 2-way section shall not have different
gradient. See the schematics below:
错误的接法
正确的接法
6). Confluence toward the horizontal pipe shall be best from the upper. Back flow is easy to
occur if from the lengthwise direction.
7）Do not tie the condensate pipe and refrigerant pipe together.
8) To ensure smooth drainage of condensate, a vent hole shall be set at the highest point of
drainage pipe.
9) Carry out water flow test and full water test after the pipe connection is completed. On one
hand, check if the drainage is smooth; on another hand, check the piping system for any
leakage.
Wrong connection Correct connection
Indoor Unit
Mounting of horizontal pipe
Main pipe Main pipe
Main pipe
Over 1/100
