Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
196
10) Steel sheath shall be provided to the pipe crossing the wall or slab. The pipe joint shall not
be positioned within the sheath. The steel sheath shall be flush with the wall surface or slab
base, but 20mm higher than the slab base. The sheath shall not affect the pipe gradient.
The clearance between pipe and sheath shall be blocked by using flexible inflammable
materials. The sheath shall not be used as the supporting point of the pipe.
11) The joint of thermal insulation materials must be adhered by using special glue and then
wrapped with plastic tape having a width not less than 5cm to avoid condensing.

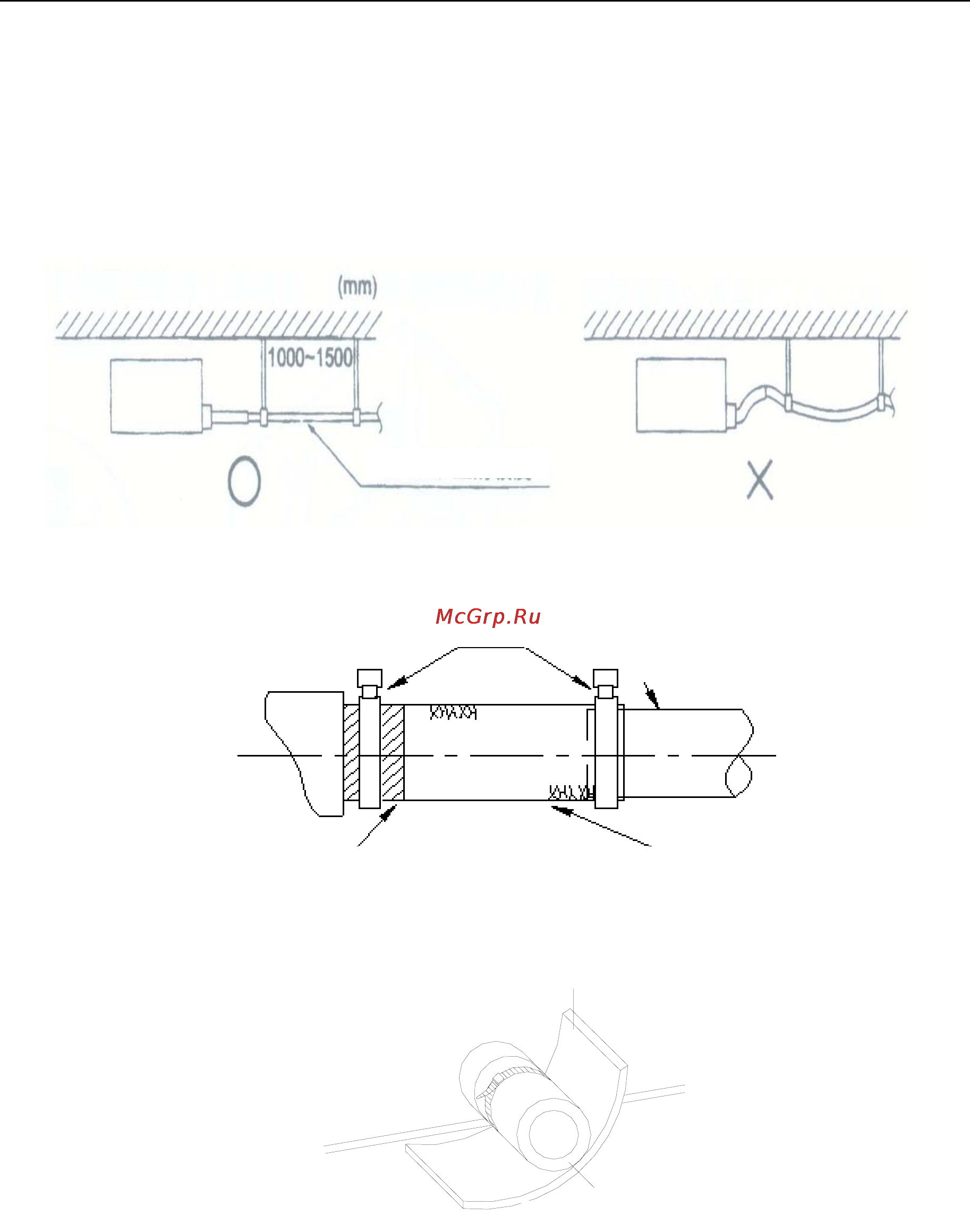

12). Ensure a gradient over 1% when connecting the drainage pipe to the indoor unit.
13) When connecting the drainage pipe to the indoor unit, please fix with the included pipe
clamp and do not use glue water, thus to ensure easy repair.
14) Installation requirements for auxiliary drainage pipe
The auxiliary drainage pipe must be thermally insulated:
管盖
冷凝水管
保温层
15) The long drainage pipe may be fixed by using hanger bolts, thus to ensure a gradient of
1/100 (PVC cannot be bent).
The spacing between the supports of horizontal pipe is 0.8-1.0m. Twisting will be caused and
thus air bag will be formed if the spacing is too high. Once the air bag is formed, the pump can
only compress the air bag no matter how forcible it pushes, but there is no flowing water, thus
resulting in abnormal water level. This will cause flooding of the ceiling.
Gradient over 1/100
Pipe clamp
Drainage PVC
pipe
Unit drainage pipe Drainage hose
Thermal insulation of
condensate pipe
Pipe cover
