Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
82
NOTE!
This type of remote control is a kind of general use remote control that is suitable for
several types (function) of air conditioner units. Please understand that the functions and
buttons that are not suitable for this air conditioner will not be introduced.
TIMER
ONOFF
ON/0FF
ANION
TIMER OFFTIMER ON
MODE
LIGHT
SLEEP
SAVE
HUMID
AIR
HR.
LIGHT
AUTOFAN
SWING HUMID
AUTO
SWING
SAVE
OPER
AIR
FAN

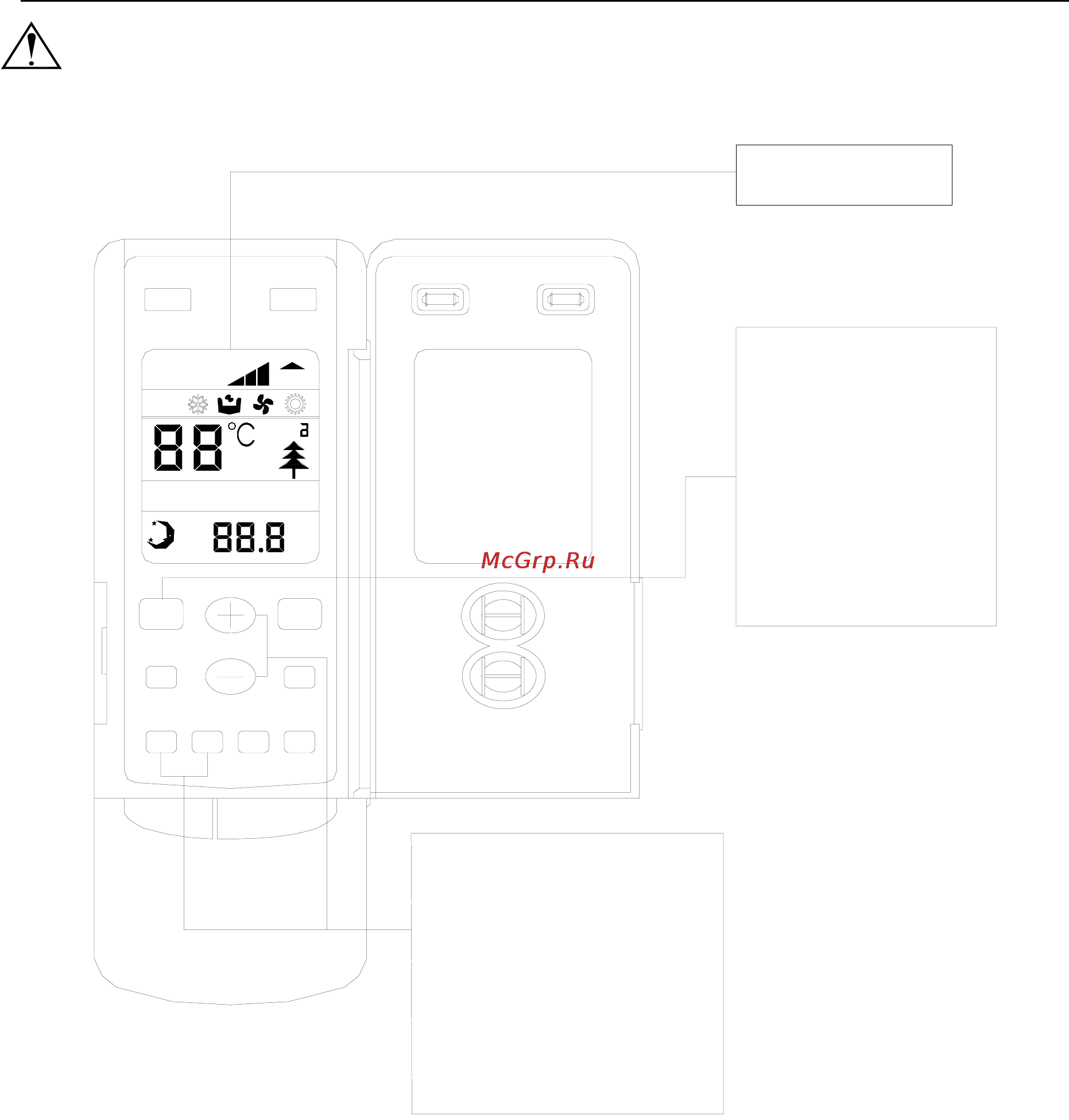

Liquid crystal displayer
It shows all set contents.
SLEEP button
Press the button to set SLEEP
mode, and stop when repressed.
When the sleep mode is in the
cool and dry mode, the set
temp. will increases 1~2
℃
during the set time, then the
unit will operate according to
the temp.. When sleep mode is
in the heat mode, the set temp.
decreases 1~2
℃ during the set
time, then the unit will operate
according to the set temp..
Temp./Timer button
When the unit is operating, increase 1
℃
by pressing "+" button once, and
decrease 1
℃ by pressing "-" button
once. The indoor temp. can be set in
the range of 16-30
℃.
Press the "Timer OFF/TIMER ON"
button at operating/ stopping to set the
off/on time. Press "Timer OFF/TIMER
ON" once to increase 0.5 hour for the
set time. The Max.value of setting time
could be 24 hours
，when repressed it
the setting time will be canceled.
Operation procedure
Normal procedure
1. Press ON/OFF button after connected with the power, then the unit is operating.
2. Press MODE button to choose the need operation mode.
3. Press FAN button to set the fan speed.
4. Press +/- button to set the need temp.
Selectable procedure
5. Press SLEEP mode to set the sleep state.
6. Press TIMER OFF button to set the set time.
Note: When the operating mode selected by the indoor unit is clash with the one selected
by the outdoor unit, the remote controller will display the operating clash after 5 seconds
and the power light will flicker, then the indoor unit turns off. At this time, the units will
become normal after the operating mode of the indoor unit is changed to cooperate with
the outdoor unit. Cool mode can cooperate with dry mode, and fan mode can cooperate
with any mode.
