Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
154

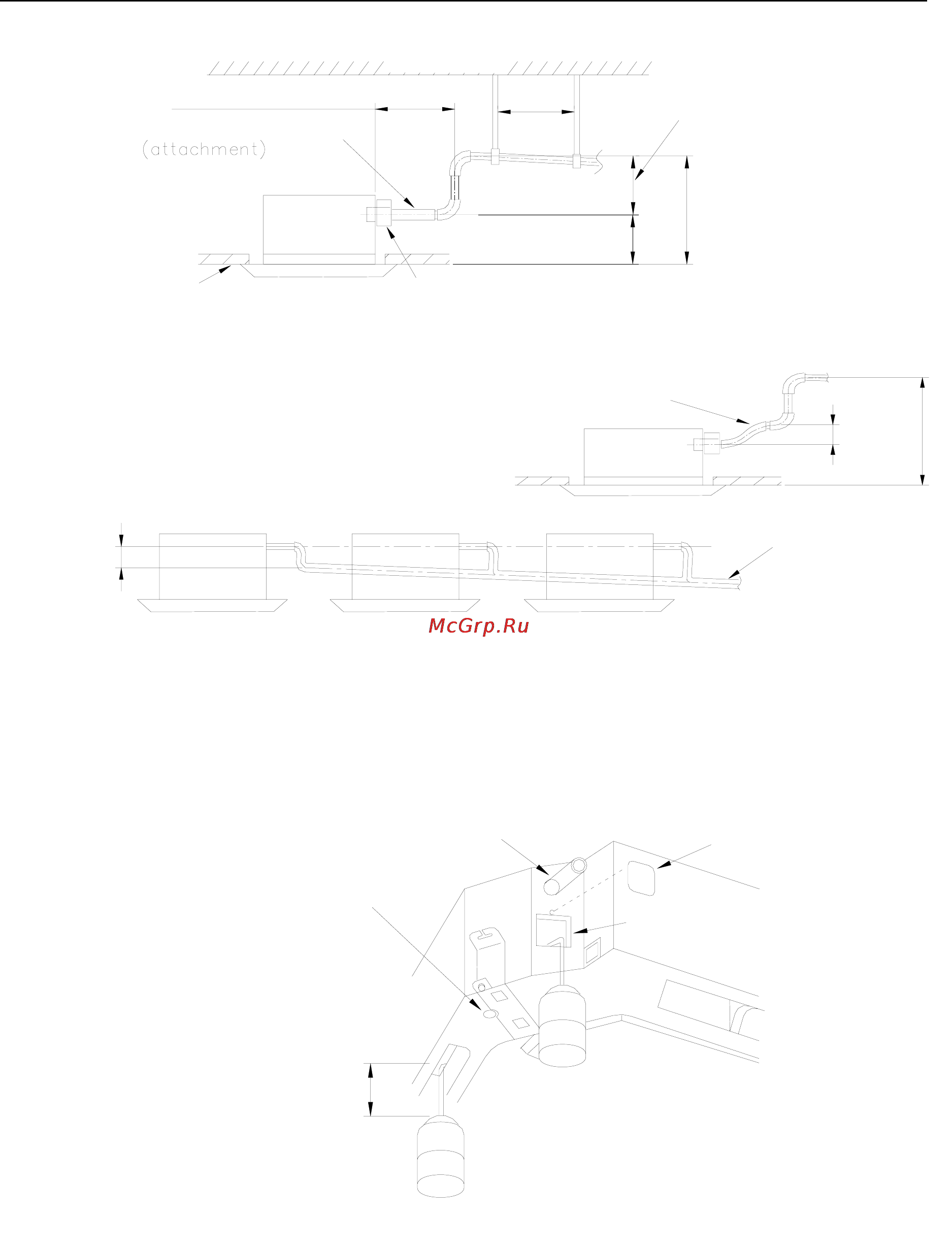

right angle with the unit, and distance to unit should not be beyond 300mm.
below500mm
.
Within 300mm
Drain raising
hose
.
220mm
Ceiling
Clamp(attachment)
Hoisting stand
Roof
Drain hose
1-1.5m
below280mm
Instruction
The slant gradient of the attached drainage ☆
hose should be within 75mm so that the drain
hole doesn’t has to endure the unnecessary
outside force.
Please install the drainage hose according to ☆
the following process if several drain hoses
connected together.
The specs of the selected join drain hose should fits the running capacity of the unit.
.
Above100mm
T-tie in join drain hose
2 Check the smoothness of drain after installation.
Check the drain state by immitting 600cc water slowly from the outlet or test hole.☆
Check the drain in the state of refrigerating ☆ after installation of the electric circuit.
[Way of immiting]
.
Drain hose
Test hole cover
Test hole
Above100mm
Drain vent for repair use (plastic
stopper is included) (drain the water
in waterspout by this outlet vent)
<Immiting water from the outlet
vent terminal
>
Plastic water pot (The length of the
pipe should be about 100mm.)
< Immiting water from the rest hole>
below500mm
.
below75mm
Drain hose(attachment)
