Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
253

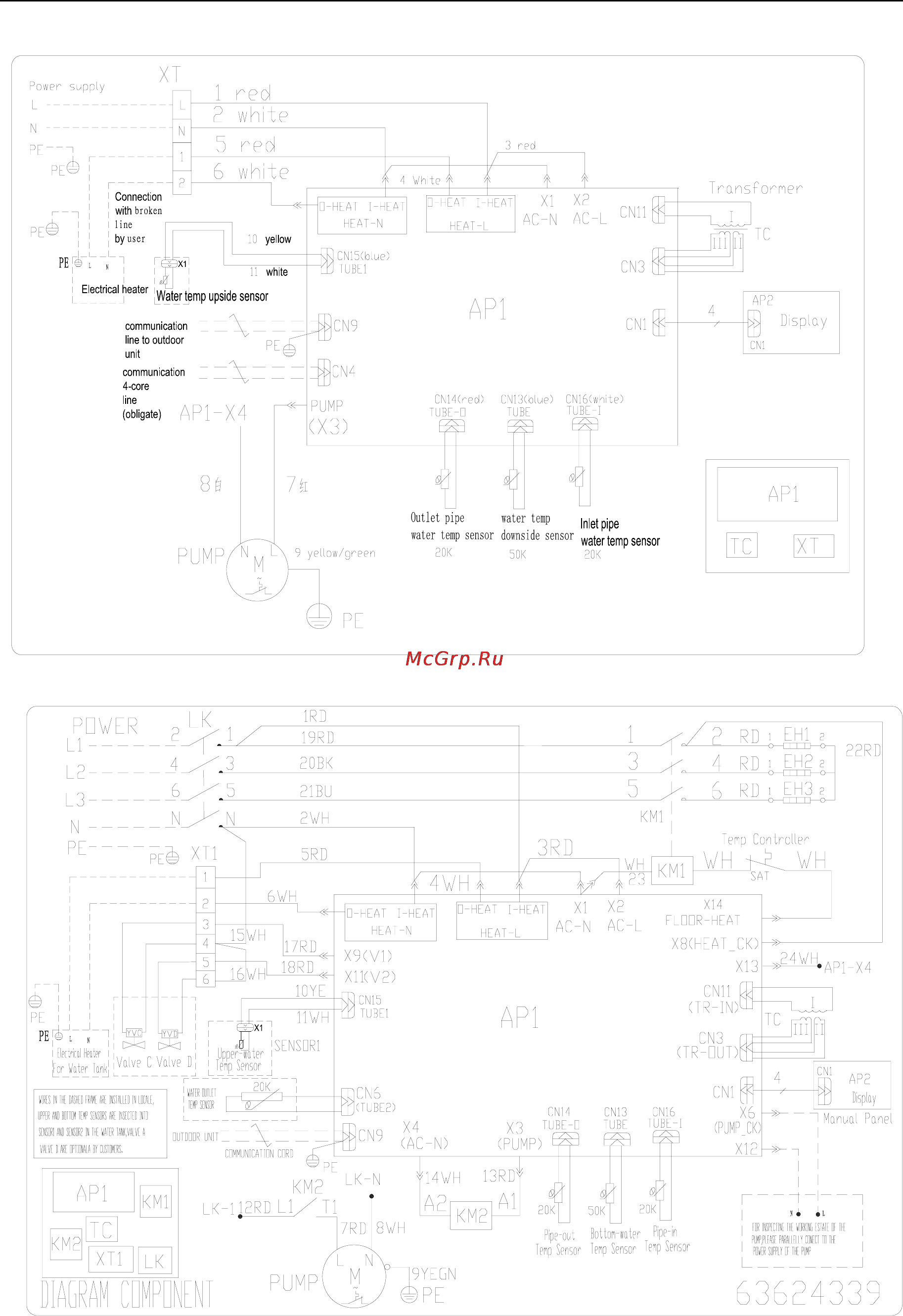

RQ30LA-K.RQ20LA-K:
RQD30LA-M.RQD20LA-M:
