Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
240
3 CIRCUIT DIAGRAM
3.1 Introduction of Major Electrical Elements

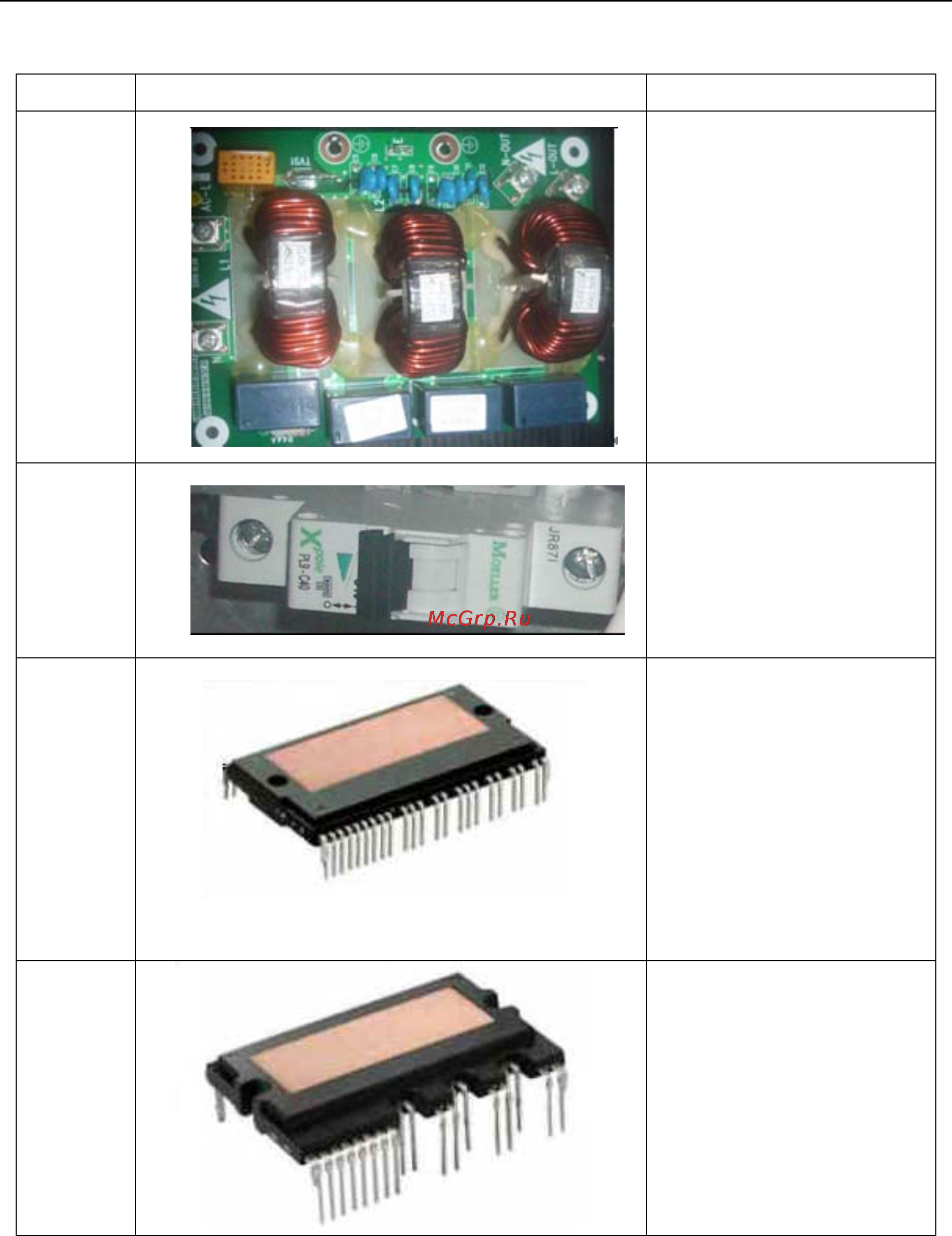

Name Photo Function Introduction
Filter board
Main functions: 1) Filter the
power interference and ensure
the anti-interference ability of
the unit under poor quality of
power supply; 2) Inhibit the
interference of the unit to the
power supply and prevent the
operation of unit from affecting
other electric appliances like TV.
Air switch
For connecting and
disconnecting the circuit of main
loop, provided with overcurrent
and short-circuit protection.
IPM
module
The IPM module integrates 3
pairs of complementary IGBT
tube and controls their
connection and disconnection
via PWM wave, so that the DC
bus voltage is applied to
different stator windings of the
compressor in different time
section and the current is hence
generated on the stator.
Meanwhile, magnetic field is
induced on the rotor windings,
thus to push the rotor and drive
the compressor to run.
PFC
module
The PFC module integrates 4
diode tubes and 2 MOS tubes.
They convert the AC input
power into DC power.
Meanwhile, the connection and
disconnection of MOS tube is
controlled via PWM wave, thus
to realize the voltage rise under
the function of electric induction.
