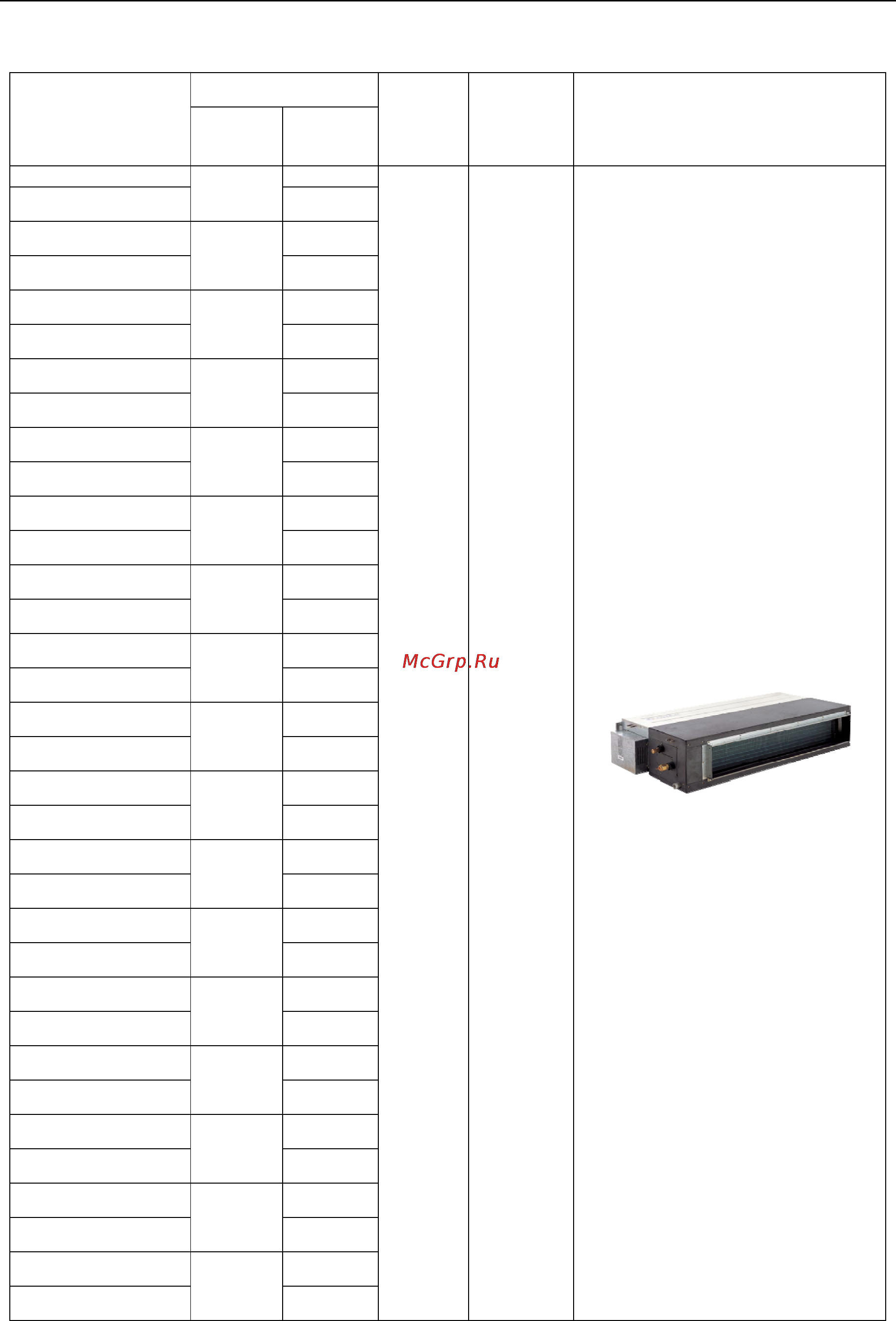

Dc Inverter VRF plus Water Heater Solution Service Manual PRODUCT
3
1.2 Indoor Unit
1.2.1 Common ESP Duct Type Indoor Unit
Model
Capacity
Ref
Power
Supply
Appearance
Cooling
(Btu/h)
Heating
(Btu/h)
GMV-R22P/Na-K
7507
8530
R410A
220~240V
~
1Ph~50Hz
GMVL-R22P/Na-K /
GMV-R25P/Na-K
8530
10236
GMVL-R25P/Na-K /
GMV-R28P/Na-K
9554
10918
GMVL-R28P/Na-K /
GMV-R32P/Na-K
10919
12283
GMVL-R32P/Na-K /
GMV-R36P/Na-K
12284
13648
GMVL-R36P/Na-K /
GMV-R40P/Na-K
13649
15354
GMVL-R40P/Na-K /
GMV-R45P/Na-K
15355
17060
GMVL-R45P/Na-K /
GMV-R50P/Na-K
17061
19790
GMVL-R50P/Na-K /
GMV-R56P/Na-K
19108
21496
GMVL-R56P/Na-K /
GMV-R63P/Na-K
21496
23884
GMVL-R63P/Na-K /
GMV-R71P/Na-K
24226
27296
GMVL-R71P/Na-K /
GMV-R80P/Na-K
27297
30026
GMVL-R80P/Na-K /
GMV-R90P/Na-K
30709
34120
GMVL-R90P/Na-K /
GMV-R100P/Na-K
34121
37532
GMVL-R100P/Na-K /
GMV-R112P/Na-K
38216
42650
GMVL-R112P/Na-K /
GMV-R125P/Na-K
42652
46060
GMVL-R125P/Na-K /
GMV-R140P/Na-K
47770
51180
GMVL-R140P/Na-K /
Conversion Formula: Btu/h=kW×3412
