Dc Inverter VRF plus Water Heater Solution Service Manual PRODUCT
4

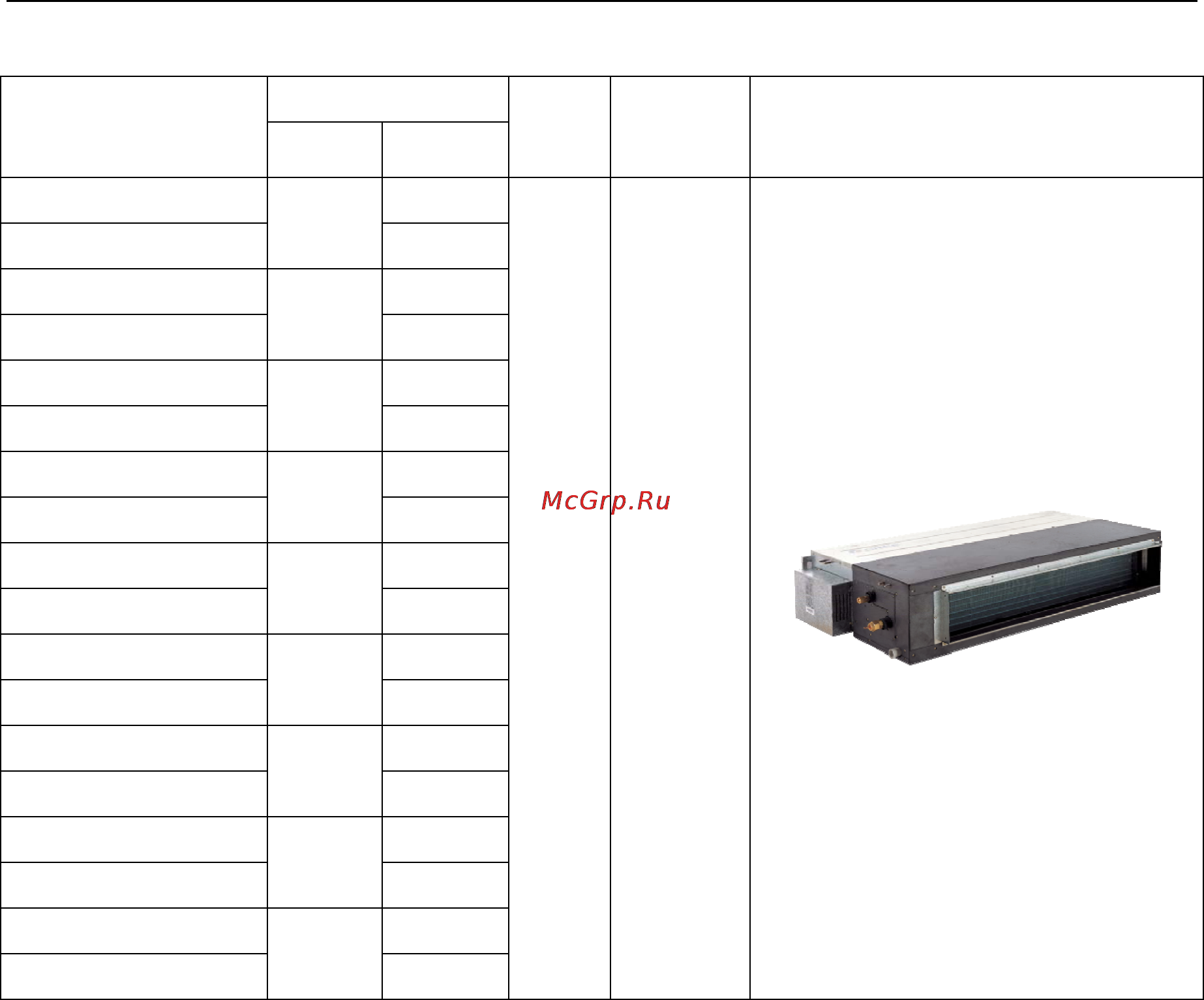

1.2.2 High ESP Duct Type Indoor Unit (without water pump)
Model
Capacity
Ref
Power
Supply
Appearance
Cooling
(Btu/h)
Heating
(Btu/h)
GMV-R22P/NaB-K
7507
8530
R410A
220~240V
~
1Ph~50Hz
GMVL-R22P/NaB-K /
GMV-R28P/NaB-K
9554
10918
GMVL-R28P/NaB-K /
GMV-R36P/NaB-K
12284
13648
GMVL-R36P/NaB-K /
GMV-R45P/NaB-K
15355
17060
GMVL-R45P/NaB-K /
GMV-R56P/NaB-K
19108
21496
GMVL-R56P/NaB-K /
GMV-R71P/NaB-K
24226
27296
GMVL-R71P/NaB-K /
GMV-R90P/NaB-K
30709
34120
GMVL-R90P/NaB-K /
GMV-R112P/NaB-K
38216
42650
GMVL-R112P/NaB-K /
GMV-R140P/NaB-K
47770
51180
GMVL-R140P/NaB-K /
Conversion Formula: Btu/h=kW×3412
