Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
287

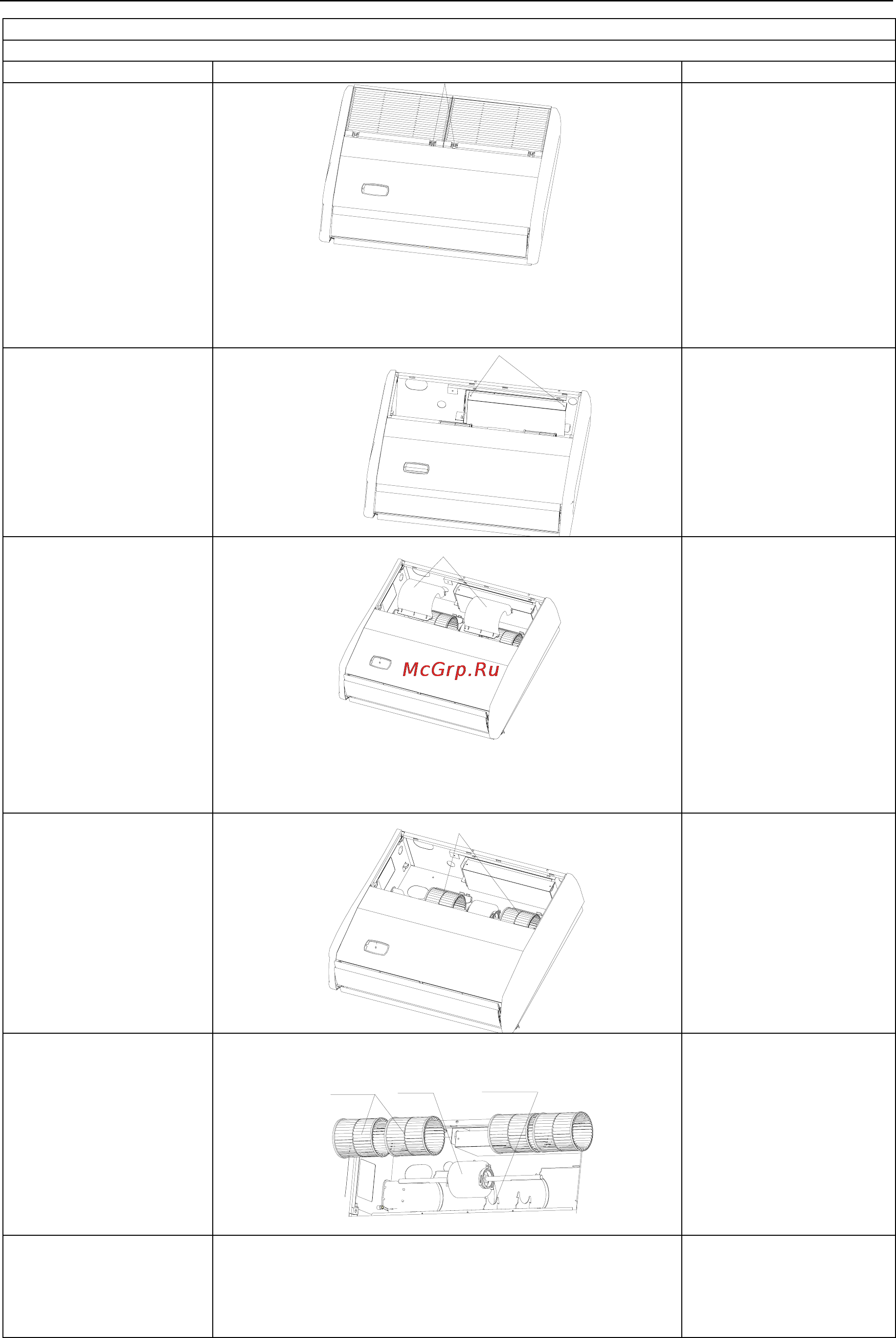

Removal and Installation of Motor and Fan
Remarks: Make sure that the power supply is cut off before removal of motor
Step Illustration Handling Instruction
1. Remove grill
● Cut off the power
supply for indoor unit.
Loosen the grill with the
screwdriver or other
tools to remove the grill.
2.Remove motor wire ● Remove the lower
electric box cover and
pull out the motor wire in
the electric box.
3. Remove rear housing
propeller.
● Loosen the clasps of
the front and rear
propeller housings to
remove the rear
propeller housing.
4. Remove fan louver
and motor
● Loosen the screws
on the fan blades and
remove the hoop fixing
the motor.
5. Remove motor
Fan
Blades
Motor
Motor
Support
● Make the motor away
from the motor support
and loosen the fan
blades from the motor.
6. Replace a new motor ● Assemble the unit
according to the above
sequence from back to
front and then energize
the unit for test.
