Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
171
8 INSTALLATION OF WATER TANK
8.1 Cautions of Installation
If it is installed in the places below, the malfunction may be caused ( if it can’t be avoided, please consult us ):
1) The place where there is any kinds of mineral oil.
2) The place where the air is salty.
3) The place where there is corrosive gas
4) The place where the supply voltage is unstable.
5) The car or cabin.
6) The place where there is oil gas and oil slick,such as kitchen.
7) The place where there is strong ether wave.
8) The place where there is the flammable gas and materials.
9) The place where there is acid gas or alkaline gas
10) Other special environments
8.2 Selection of Installation Position of Water Tank
1) The water tank shall be installed in the place where the temp is over 0 ℃
2) The distance between heat pump unit and water tank shall be not exceed 5m. The drop height between water
outlet of outdoor unit and water inlet of water tank shall be less than 3m.
3) The installation site shall withstand the weight of the unit.
4) The drainage vent of water tank shall be close to drain ditch or sinker.
8.3 Installation Cautions
1. The thermal insulation water tank shall be installed within a horizontal distance of 5m and a
vertical fall of 3m to the water heater. It may be installed outdoors, e.g. balcony, roof or ground,
according to the position of water heater. It may also be installed indoor.

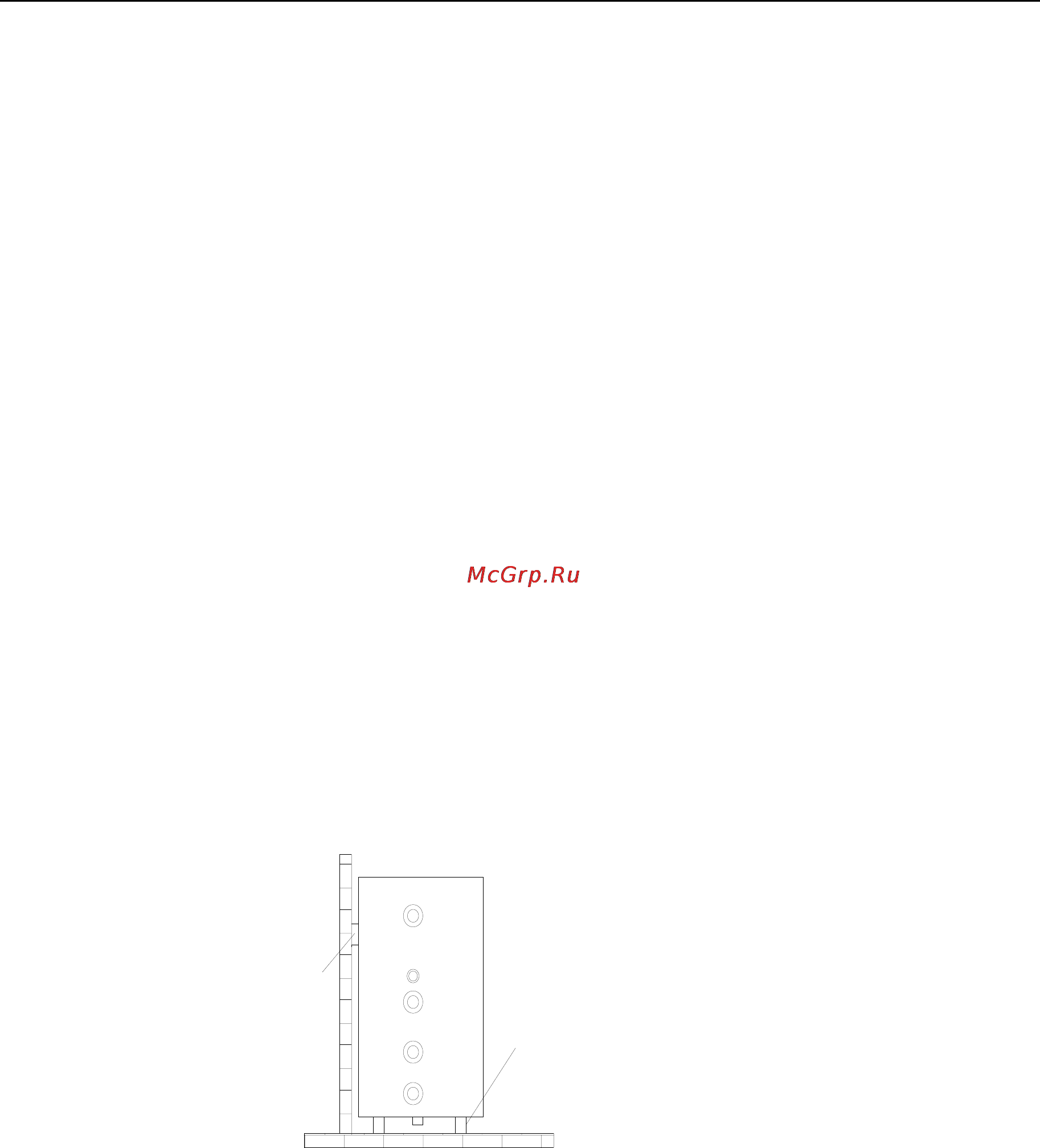

2. The vertical thermal insulation water tank must be placed upright, with the bottom on ground.
The installing position must be firm and solid. To avoid shaking, the water tank must be fixed onto
the wall with bolts. See below for details. The weight bearing capacity of the installing position
must be considered when installing the water tank.
Fix with bolts
Water Tank
The base must be installed
on ground. Suspension is
prohibited.
3. For replenishing to water tank, supply of hot water and drainage of water tank, the faucet water
pipe, hot water connector and ground drain shall be available close to the thermal insulation water
tank.
4. Connection of inlet / outlet pipe: The included safety check valve (Take care that the "→”
direction shall point toward the thermal insulation tank) shall be connected to the inlet of water tank
by using PPR pipe and be sealed with adhesive tape, as shown below. Another end of the check
valve shall be connected to the faucet water. The hot water pipe shall be connected to the outlet of
