7 MONITORING SOFTWARE

7.1 Function

As the development and improvement of manufacturing technology and in order to solve the problems of

complex distribution of the central AC in the buildings and difficult control and maintenance of them, an platform

easy and reliable to operate must be provided to the users for daily management and maintenance. So this

long-distance monitoring system combining electronic communication and computer technologies is developed to

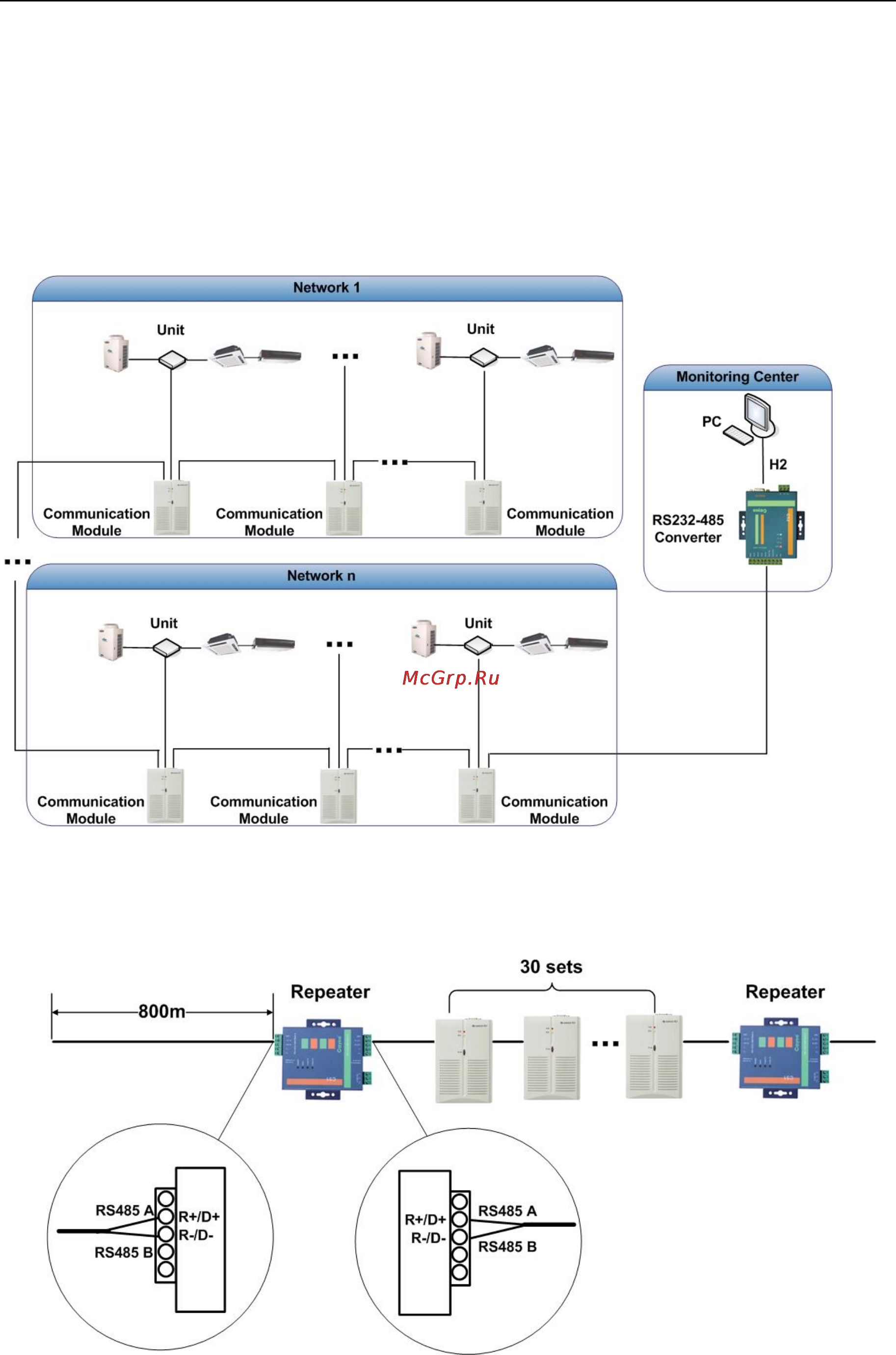

collect the running state of the units and to monitor and control the units from a long distance. Its structure is as

follow:

7.2 Connection Between the Computer and the Unit

1. Notice：

① The address code of the communication modules should not be conflicted in one project.

② Optoelectronic Isolated Repeater :One every 800m of communication distance equipped with

one and One every 30 communication modules equipped with one.

③ the communication cable and heavy-current wire should be separated and the distance

between them can not be below 15cm

④ line A and line B of Bus 485 should respectively correspond with line A and line B.
