Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
194
unit.

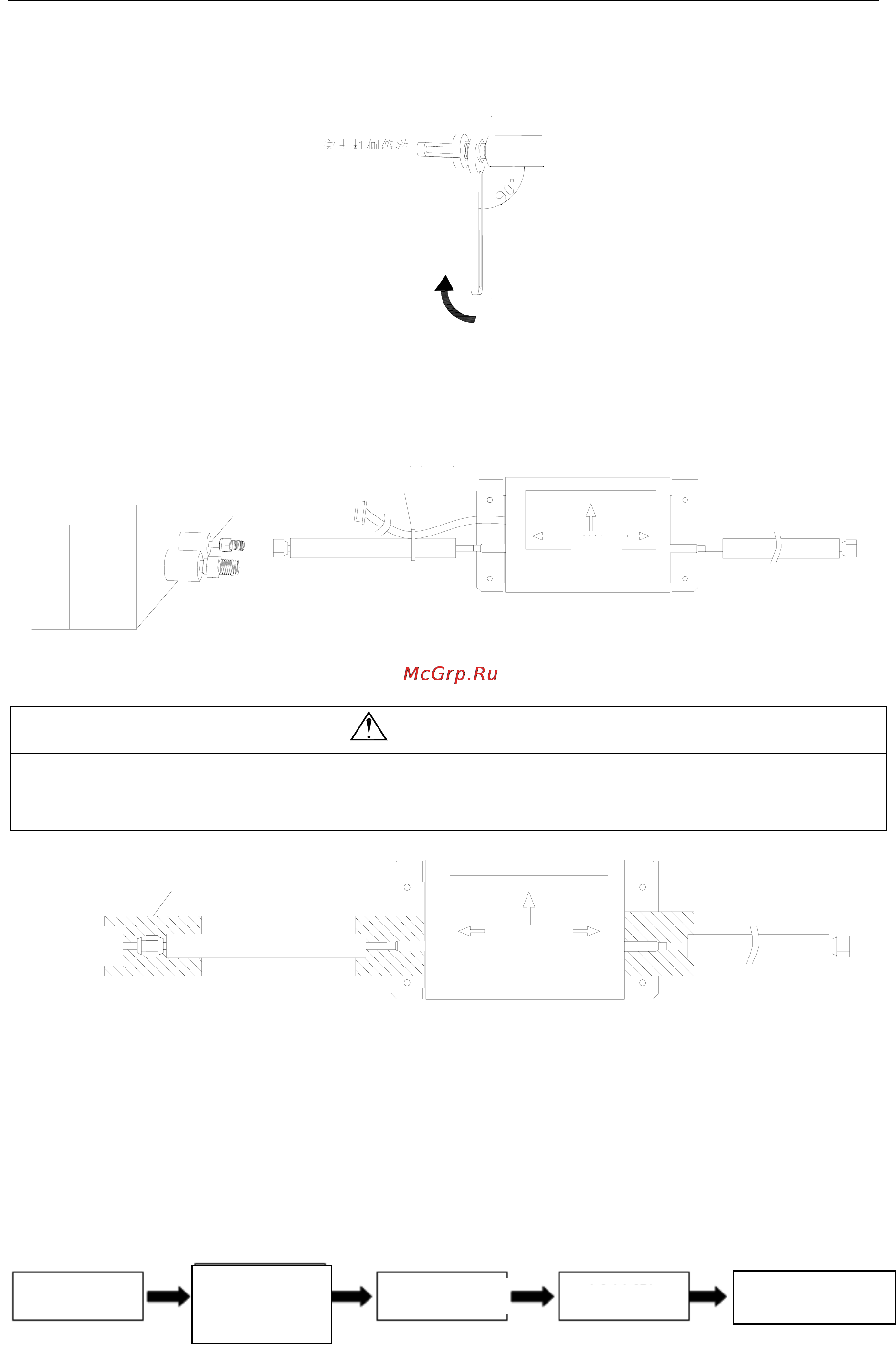

（3） Pipe connection: Tighten the nuts with your hands correctly. Then, use another spanner to
hold the pipe joint on machine side and use torque wrench to tighten securely.
（4） Cable connection of electronic expansion valve sub-assembly
① To avoid loosening and sagging down, please use strap (small) to fix the cable of electronic
expansion valve sub-assembly onto the pipe or other objects.
② When connecting the cable of electronic expansion valve sub-assembly, please take care to
prevent the cable from contact with the hot or humid objects.
（5） Final treatment: The section where the pipe is connected must be wrapped for thermal
insulation.
WARNING!
Please ensure the pipe is fully covered by sponge and not exposed in air. Condensing
water will be generated on the pipe if the thermal insulation is poor.
12 INSTALLATION OF CONDENSATE PIPE
12.1 Material Quality Requirements for Condensate Pipe
Generally, the condensate pipe shall be water supply U-PVC pipe, adhered by using special glue.
The other materials available include: PP-R pipe, PP-C pipe and hot-dipped galvanized steel pipe.
It is not allowed to use aluminum plastic composite pipe.
8.2 Key Points for Condensate Pipe Installation
1）.Work Order
2). Determine the direction and elevation of condensate pipe before installation. To ensure the
Rotate the spanner
Pipe on indoor unit side
Hold the spanner
Connect the mainboard
of indoor unit
Fix with strap
To Indoor
Unit
To Outdoor
Unit
Vertically
upward
Thermal insulation sponge
To Indoor
Unit
To Outdoor
Unit
Vertically
upward
Indoor unit
Installation of
indoor unit
Sheathing of
thermal insulation
pipe on
condensate pipe
Connection of
drainage pipe
Water test
Thermal insulation o
f
drainage pipe
