Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
54
1.2 Operation Flowchart

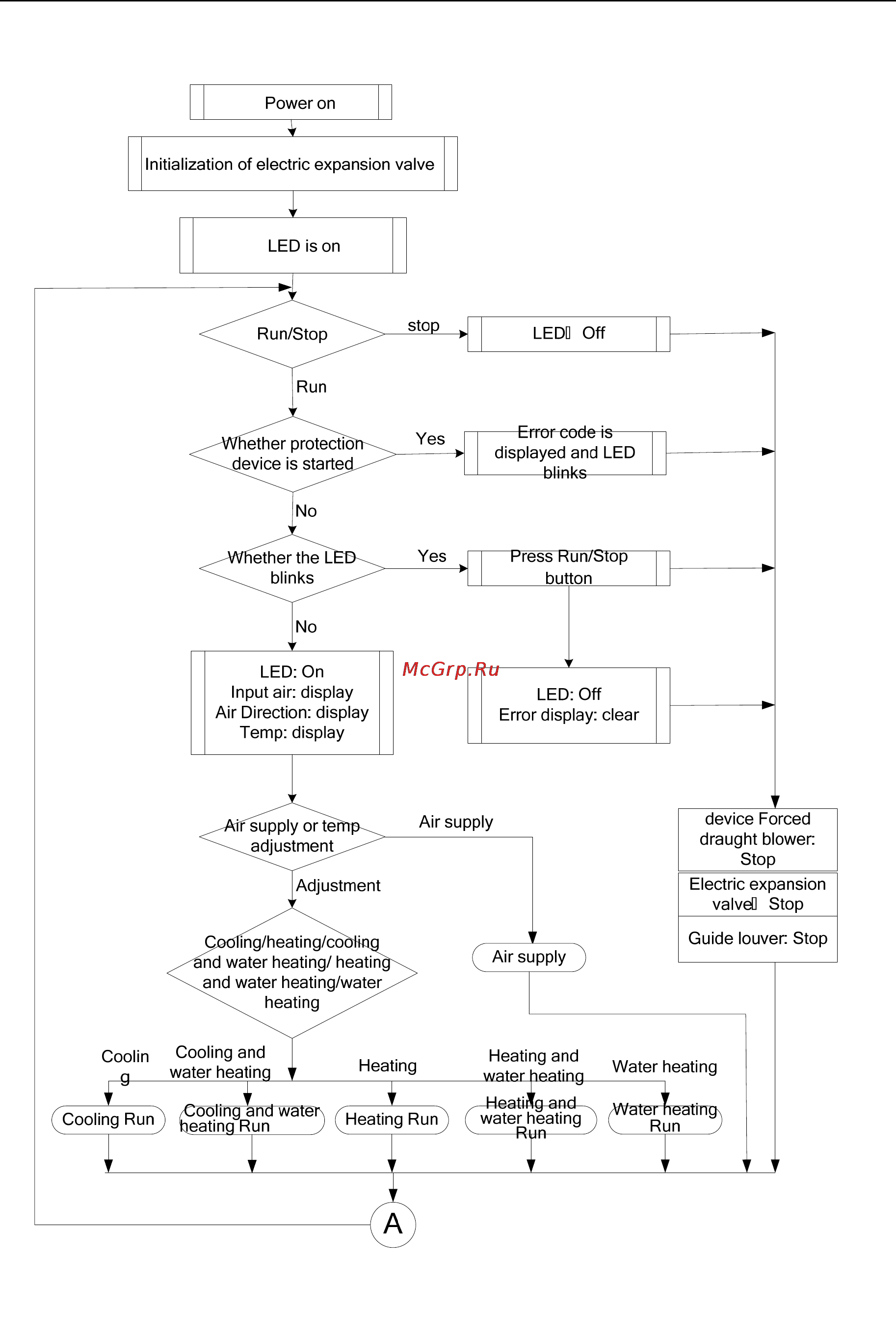

1.2.1 Operation Flowchart of Indoor Unit
