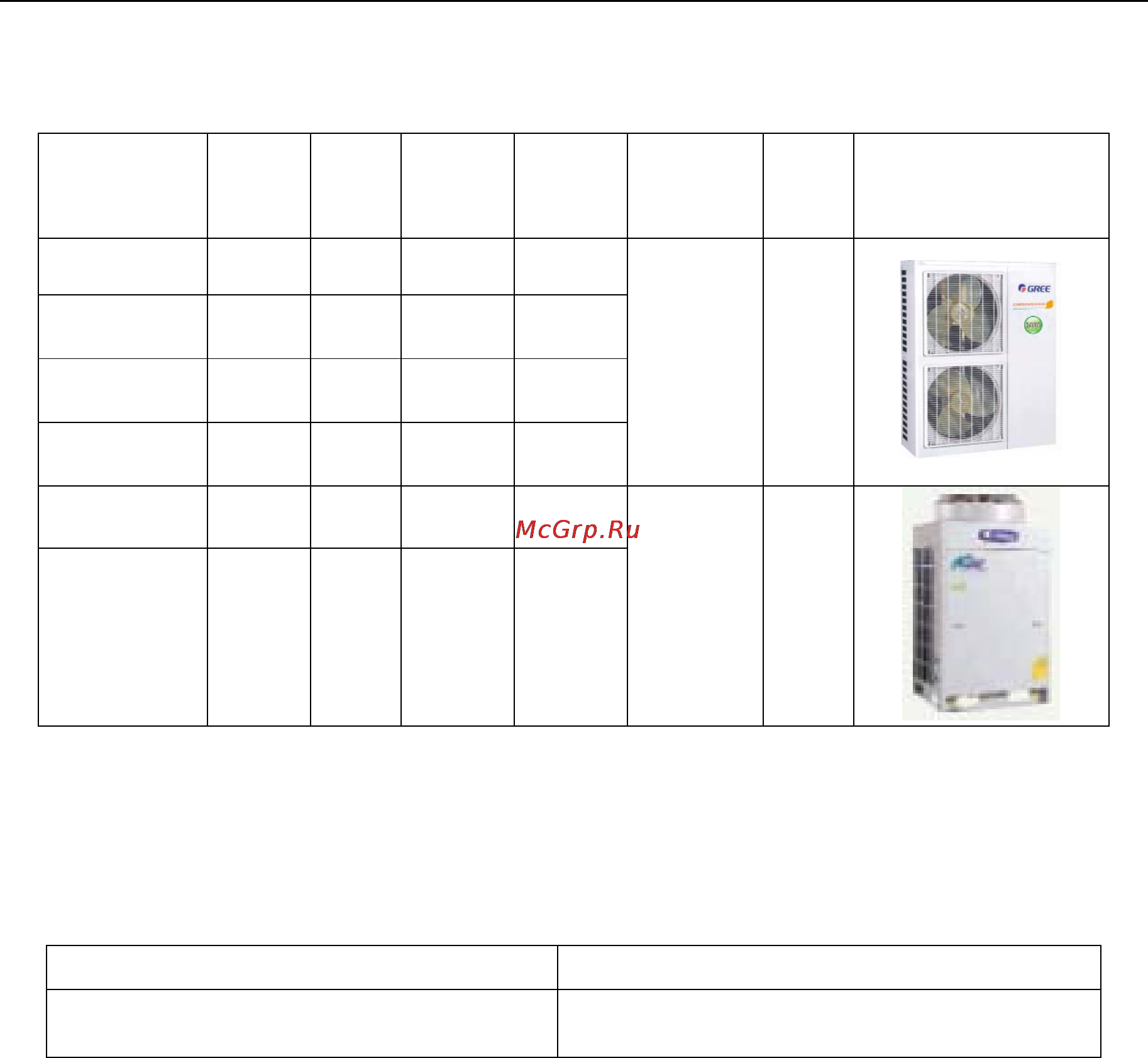

Dc Inverter VRF plus Water Heater Solution Service Manual PRODUCT
2
PRODUCT
1 MODELS LIST
1.1 Outdoor Units
Model
Coolin
g
(Btu/h)
Heati
ng
(Btu/h
)
Min.Wat
er
Output
L/h
Max.Wa
ter
Output
L/h
Power
Supply
Refrig
erants
Appearance
GMV-Pds100
W/Na-K
34120 37532
107 107
220~240V
~
1Ph~50Hz
R410
A
GMV-Pds120
W/Na-K
40944 47768
107 107
GMV-Pds140
W/Na-K
47768 52545
171 171
GMV-Pds160
W/Na-K
54592 60051
171 171
GMV-Pds224
W/Na
-M
76428 85300 258 500
380~415V
~3Ph~50H
z
R410
A
GMV-Pds280
W/Na
-M
95536
10747
8
258 650
Note:1Ton =12000Btu/h = 3.517kW
Notes：
① The data in the tables is subject to change so the data on the nameplate shall govern.
② Water output is measured based on nominal water heating conditions
③ Set output according to different configure of the tank so there are max. water output and min.water
output.
Cooling Heating
Indoor :27℃(80.6℉)/19℃(66.2℉)
Outdoor: 35℃(95℉)/-
Indoor: 20℃(68℉)/-
Outdoor : 7℃(44.6℉)/6℃(42.8℉);
