Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
155
6.3 1-way cassett type Unit
6.3.1 Selection of installation site
1. Obstruct should be away from the air intake or outlet vent of the indoor unit so that the airflow blow all
over the place of the room.
2. Make sure the installation of the indoor unit accords with the requirement for installation dimension
drawing.
3. Select the place which can withstand 4 times weight of the indoor unit and would not increase the
operating noise and shake.
4. The installation place should be horizontal.
5. Select the place, where coagulated water is easy to discharge and outside unit to be connected.
6. Above 18000mm between the earth and indoor unit should be ensured for maintenance and repair.
7. Use hoisting screw to check if the installation place can withstand 4 times weight of the units and
strengthen it before installing.

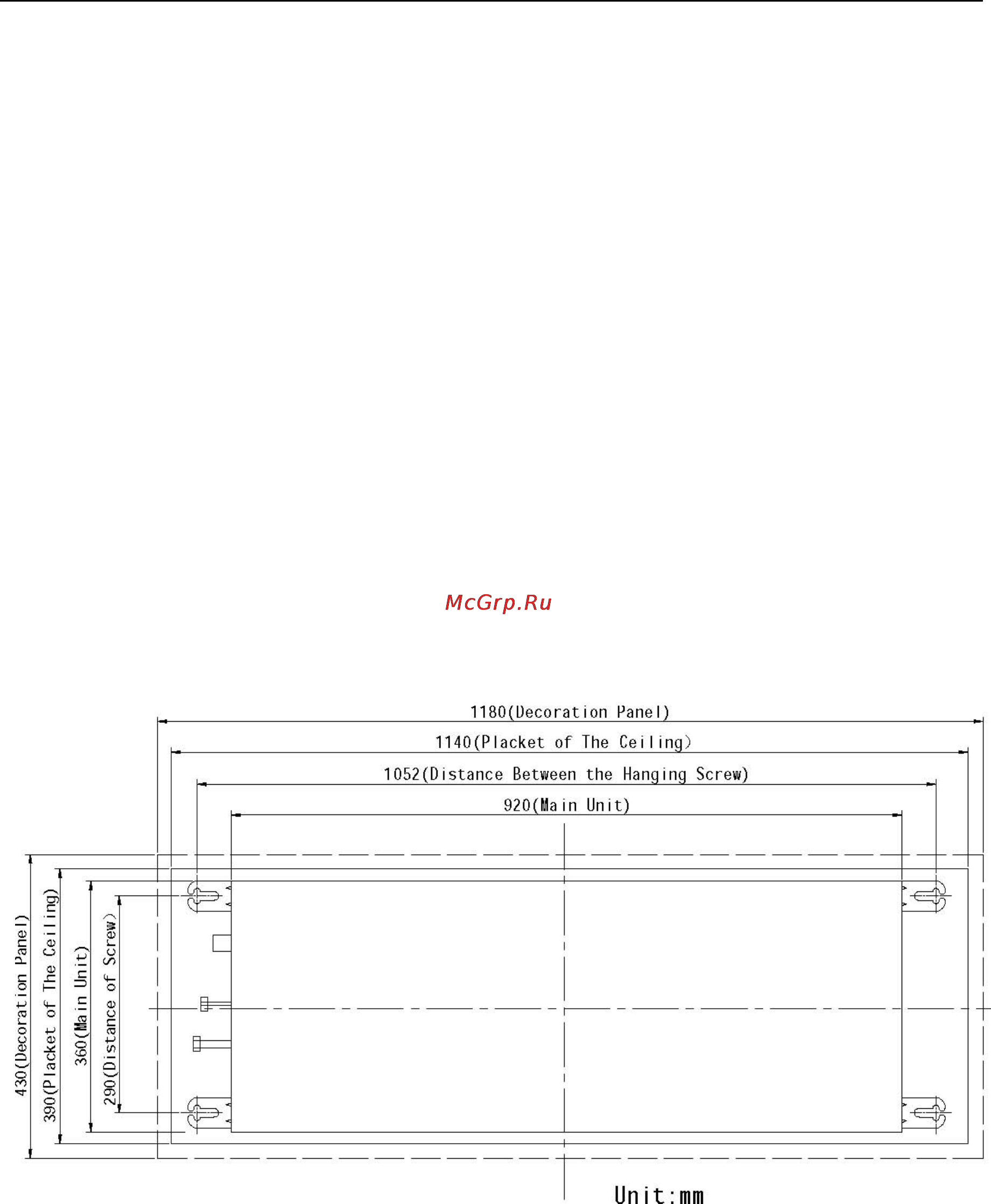

6.3.2 Dimensions Data
Important notice:
Drilling the hole of the ceiling and installing the units must be operated by
professionals
