Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
210
☆ Dial-up Value
The dial-up value of address code is set in binary system. The dial-up value is “0” when the
lever is dialed to “ON” end; the dial-up is “1” when the lever is dialed to numerical end on opposite
side. For number 4~1 on the address code, the dial-up #4 refers to high bit and the dial-up 1#
refers to low bit.
Dial-up table(dial-up switch with 4 bit)
Bit 4 Bit 3 Bit 2 Bit 1 Address
0 0 0 0 1
0 0 0 1 2
0 0 1 0 3
0 0 1 1 4
0 1 0 0 5
0 1 0 1 6
0 1 1 0 7
0 1 1 1 8
1 0 0 0 9
1 0 0 1 10
1 0 1 0 11
1 0 1 1 12
1 1 0 0 13
1 1 0 1 14
1 1 1 0 15
1 1 1 1 16
Example 1: If the dial value is “0111”, this represents that the address is “8”, the pins 1, 2 &
3 of the dial switch are dialed to the numerical end, and the pin 4 is dialed to “ON”.
Example 2: If the dial value is “1010”, this represents that the address is “11”, the pins 2 &
4 of the dial switch are dialed to the numerical end, and the pin 1 & 3 are dialed to “ON”.
See below:

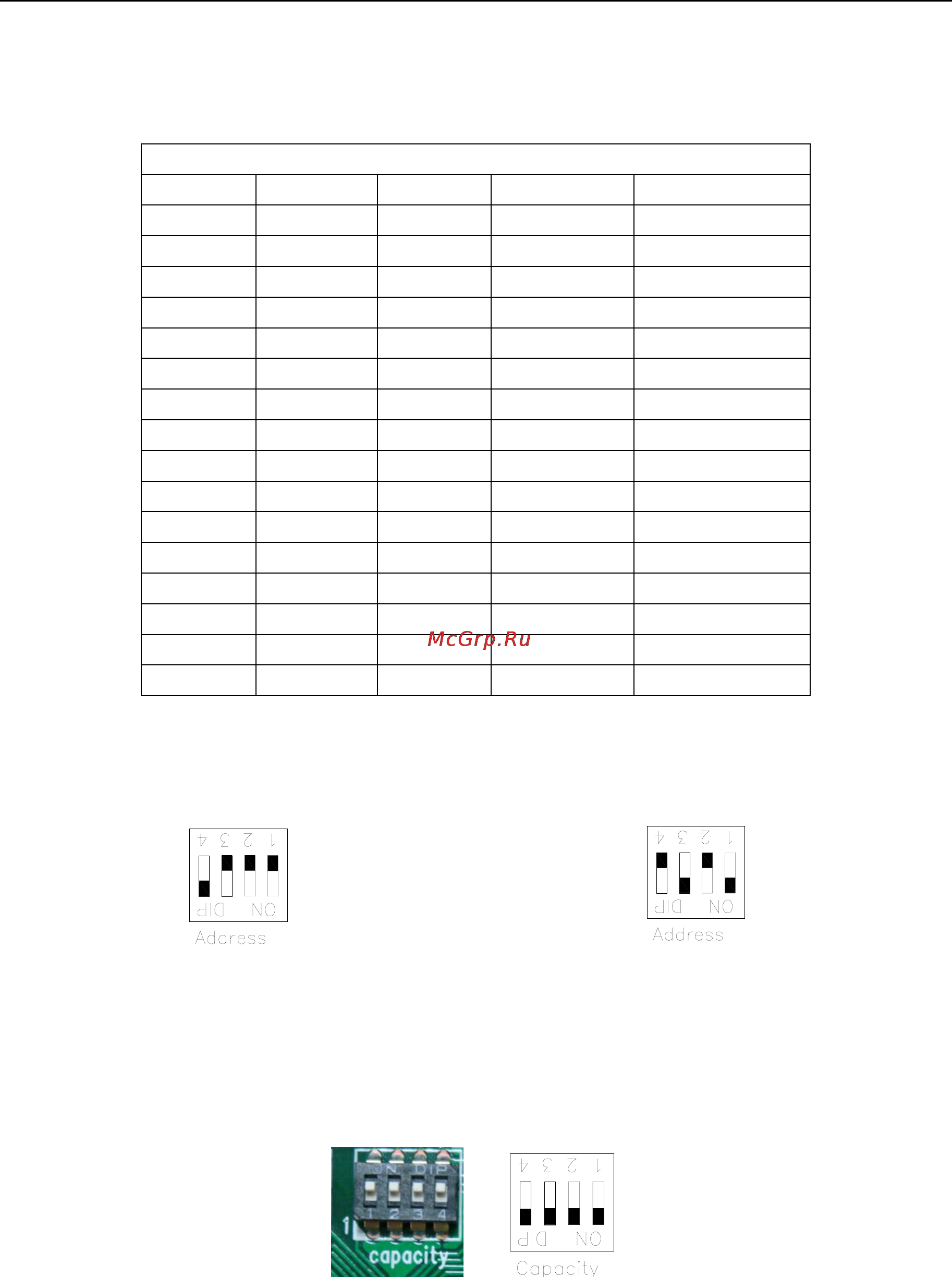

Address 8, dial-up value 0111 Address 11, dial-up value 1010
2)Address code about capacity
On the mainboard of indoor unit, two 4-bit DIP switches are used to distribute the address and
capacity of indoor units. The 4-bit DIP switch (marked with “capacity” below) used for setting
the capacity of indoor units is factory set before shipment of indoor unit, while it is covered by
sealant, so that it cannot be changed by the user.
☆ Below is factory default setting:
The default Capacity dial-up is the maximum capacity of indoor unit. As shown above, the
capacity is (See above for the lever position)
☆ Dial-up Value
The dial-up value of capacity code is set in binary system. The dial-up value is “0” when the
lever is dialed to “ON” end; the dial-up is “1” when the lever is dialed to numerical end on opposite
side. For number 4~1 on the capacity code, the dial-up #4 refers to high bit and the dial-up 1#
refers to low bit.
