Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
209

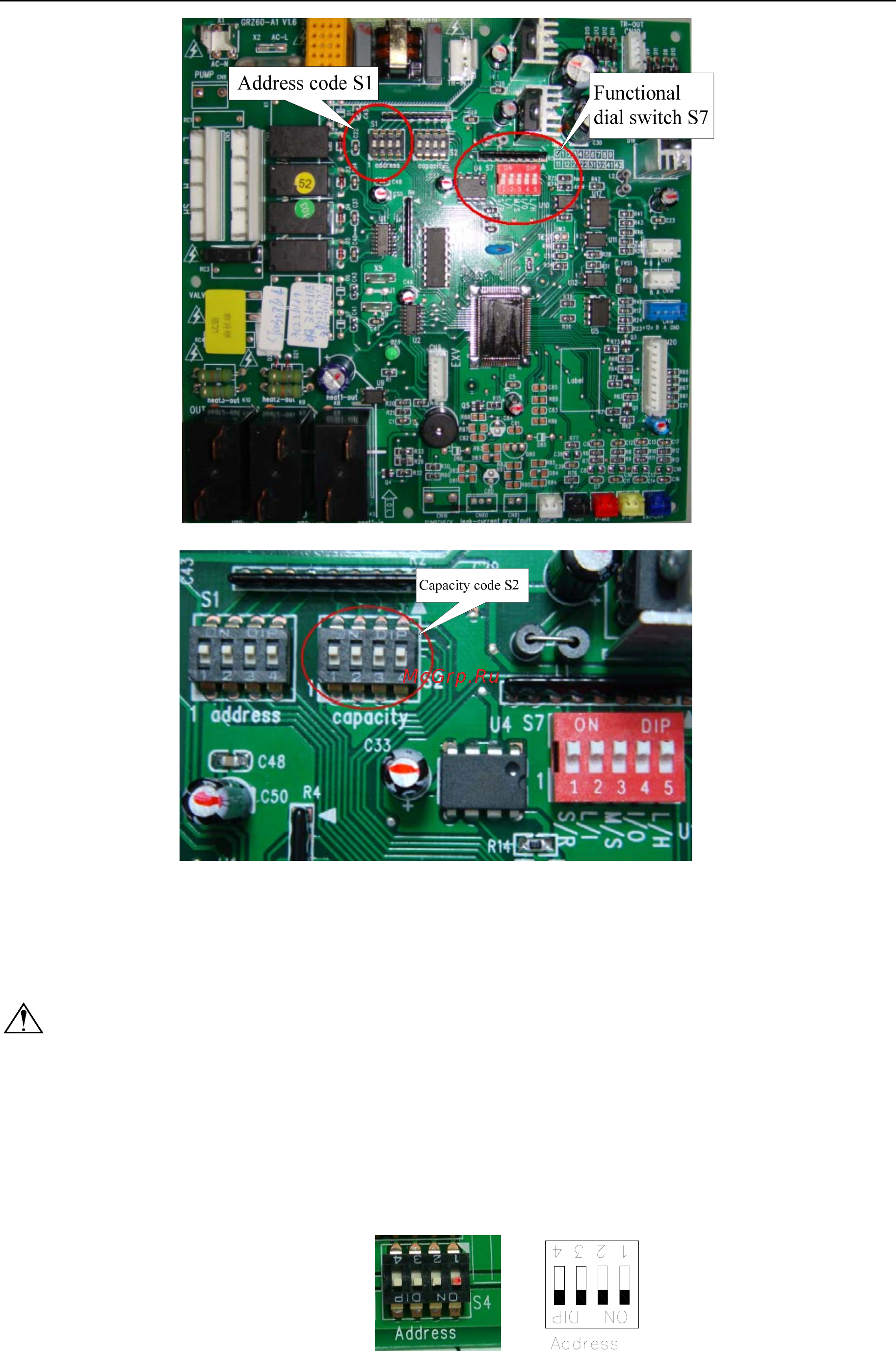

14.4.1 Dial-up of indoor unit mainboard and wire remote controller
1)Address code
Address dial-up must be set for the multi indoor units; otherwise the abnormal communication
will be caused to the unit. The address code has 4-bit dial-up in total. The highest address is
16 and the lowest address is 1
NOTES! To use multiple indoor units in parallel, make sure to change the setting of
address code before installation and guarantee that the address code of each indoor unit
must be different (The address code is located on the mainboard of indoor unit). If wired
controller is used, make sure to dial the address code of wired controller to the position
same as the address code on corresponding indoor unit. (The address code of wired
controller is located on the back of wired controller)
☆ Below is factory default setting:
The default setting of address dial-up code is 0000 and the address is 1 (See above for the
position of dial lever).
