Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
288

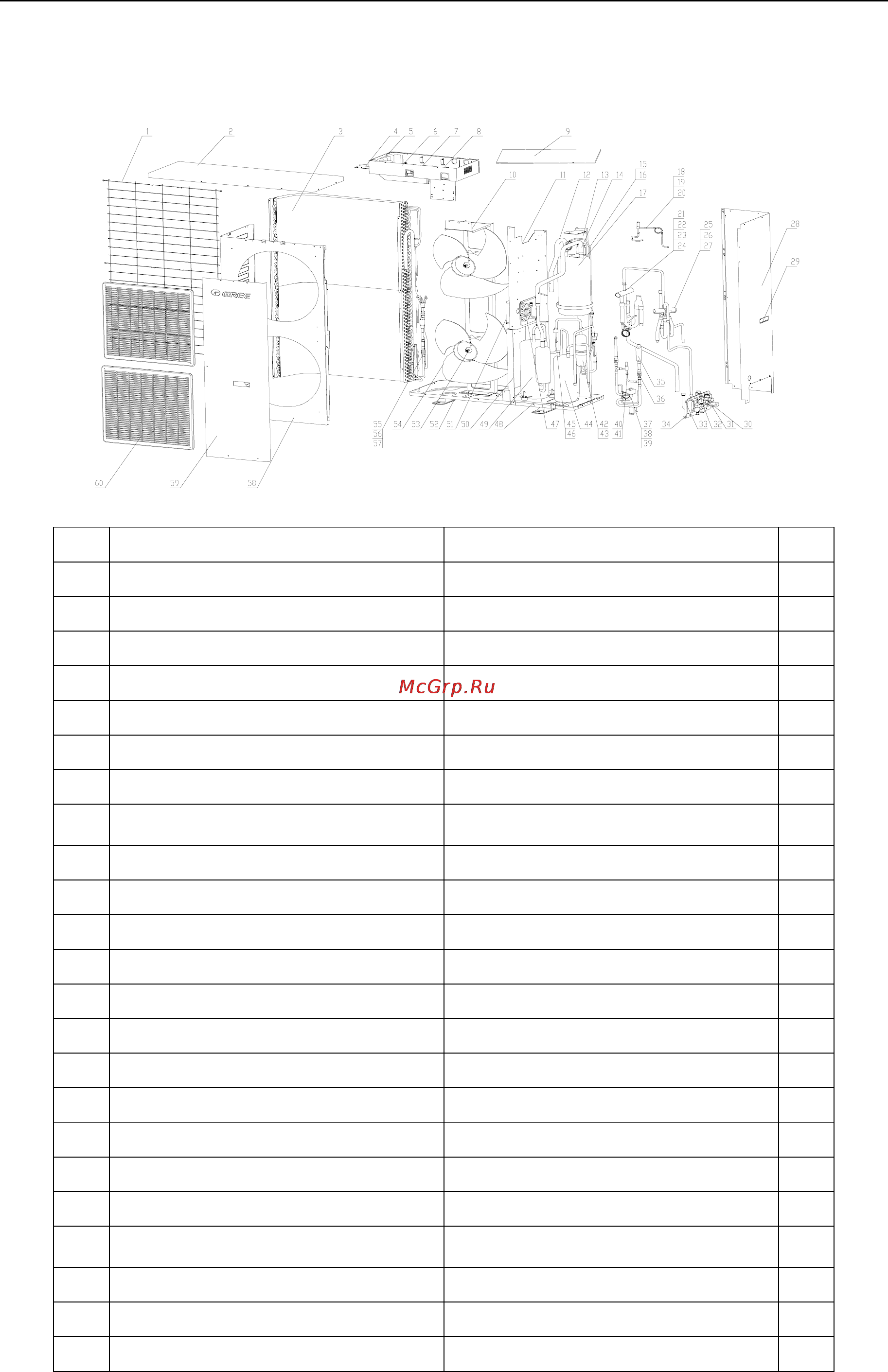

5 EXPLODED VIEWS AND PART LIST
5.1 Outdoor Unit
★ GMV-Pds100W/Na-K, GMV-Pds120W/Na-K
Parts List：
No. Part Name Code Qty
1 Rear Grill 01475432 1
2 Top cover plate 01255262 1
3 Condensator assy 01124166 1
4 Electric-box sub-assy 01394836 1
5 Electric box 26904131 1
6 Mainboard WZ6P30 30226209 1
7 Filter plate WZ814B 30228115 1
8
Overcurrent circuit breaker(16/40A)
S251S-C40
46020018 1
9 Electric box cover 01424235 1
10 Motor support sub-assy 01804318 1
11 Isolation sheet sub-assy1 01244111 1
12 Connecting pipe ( gas) 05024967 1
13 Support sub-assy ( gas) 01804149 1
14 Suction pipe sub-assy 04674176 1
15 Capillary sub-assy 04104156 1
16 Filter 07212121 2
17 Gas-Liquid Separator 07424104 1
18 Gas by-pass valve sub-assy 07334338 1
19 Solenoid Valve FDF2A 43000054 1
20
Solenoid Valve
accessories( solenoid
coil )
4304000403 1
21 4-way valve sub-assy1 04144165 1
22 4-way valve(SHF-20H) 43000338 1
23 4-way valve Fittings( solenoid coil ) 4300040029 1
