Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
130
4 INSTALLATION SCHEMATIC DIAGRAM

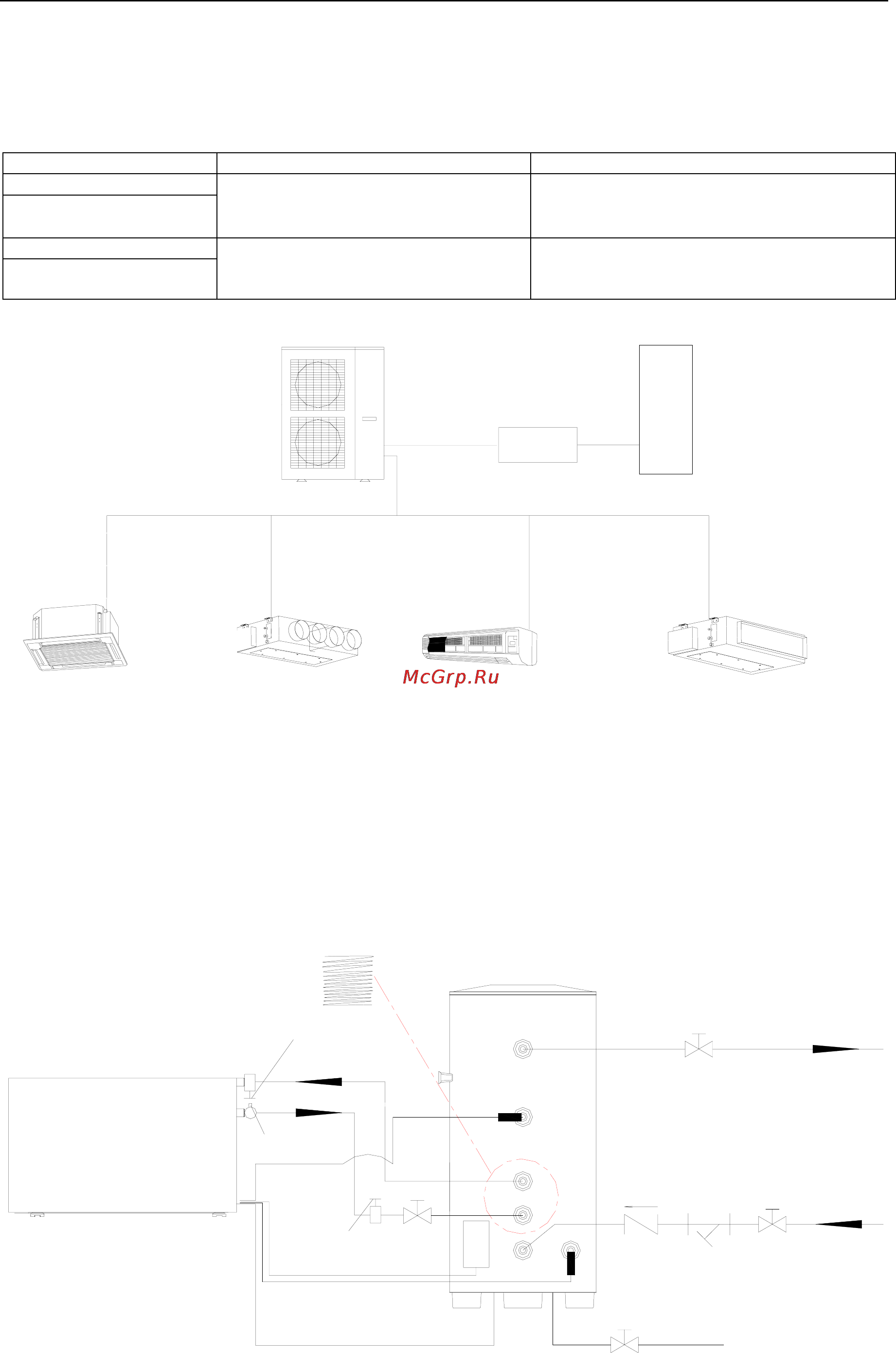

4.1 Installation Schematic Diagram of Units with Side Air Outlet
Applied for GMV-Pds100W/Na-K.GMV-Pds120W/Na-K.GMV-Pds140W/Na-K.GMV-Pds160W/Na-K equipped
with RQD8GA-K and RQD5GA-K
Model of Hydro-box Model of Water Tank
GMV-Pds160W/Na-K
RQD8GA-K
RQD8GA-B
RQ8GA-B
SXD350LC-K 或 SXD400LC-K
SXVD350LCJ/A-K SXVD400LCJ/A-K
SXVD350LCJ2/A-K SXVD400LCJ2/A-K
GMV-Pds140W/Na-K
GMV-Pds120W/Na-K RQD5GA-K
RQD5GA-B
RQ5GA-B
SXD250LC-K SXD300LC-K
SXVD200LCJ/A-K SXVD300LCJ/A-K
SXVD200LCJ2/A-K SXVD300LCJ2/A-K
GMV-Pds100W/Na-K
Wall-mounted
indoor unit
Cassette indoor
unit
Duct indoor unit
（round air outlet）
Duct indoor unit
（rectangular air outlet）
Outdoor unit
Hydro-box
Water-tank
There are A,B,C three installation methods for hydro-box of units with side air
outlet
Installation Schematics A
pressure water tank
(with signle pipe heat exchanger in)
single pipe
heat exchanger
Automatic
Vent Valve
Auxiliary Electric Heating
Power Cable
Auxiliary
electric
heating
Hot water out
Temperature
sensor hole
1
Circulating Out
Circulating In
Cold water in
Earthing Wire of Water Tank
Hydro indoor unit for DC
inverter VRF water
heater
Manual Vent Valve A
Water outlet
Water Inlet
Temperature
sensor
Manual
Vent
Valve B
Cutoff Valve "A"
Cutoff Valve
Hot Water Out
Check Valve
Filter
Cutoff Valve
(Normally Open)
Faucet Water
Cutoff Valve
Sewage Port
Temperature
sensor hole
2
Water Temperature Sensor 2
Содержание
