Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
132
Skecth map of installation A（only water tank）
Diagram A Model of Hydro-box Recommended water tank
GMV-Pds224W/Na-M RQ20LA-K
SXD350LC-K or
SXD400LC-K
GMV-Pds280W/Na-M RQ30LA-K
SXD350LC-K or
SXD400LC-K
（
）
（
）

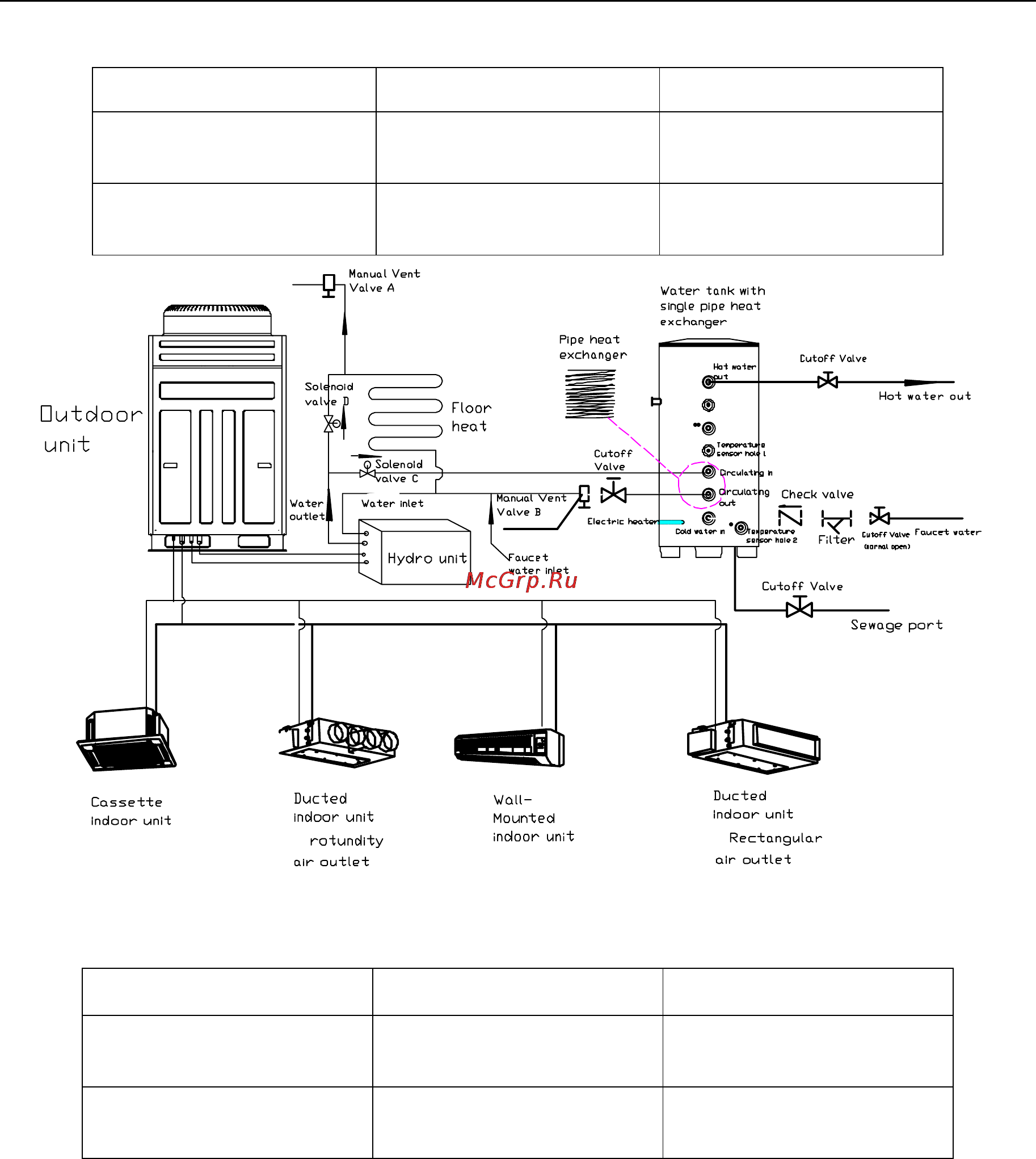

Skecth map of installation B（with floor heater and water tank）
Diagram B
Model of Hydro-box Recommended water tank
GMV-Pds224W/Na-M RQD20LA-M
SXVD350LCJ/A-K or
SXVD400LCJ/A-K
GMV-Pds280W/Na-M RQD30LA-M
SXVD350LCJ/A-K or
SXVD400LCJ/A-K
