Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
254
4 DISASSEMBLY AND ASSEMBLY PROCEDURE OF MAIN PARTS

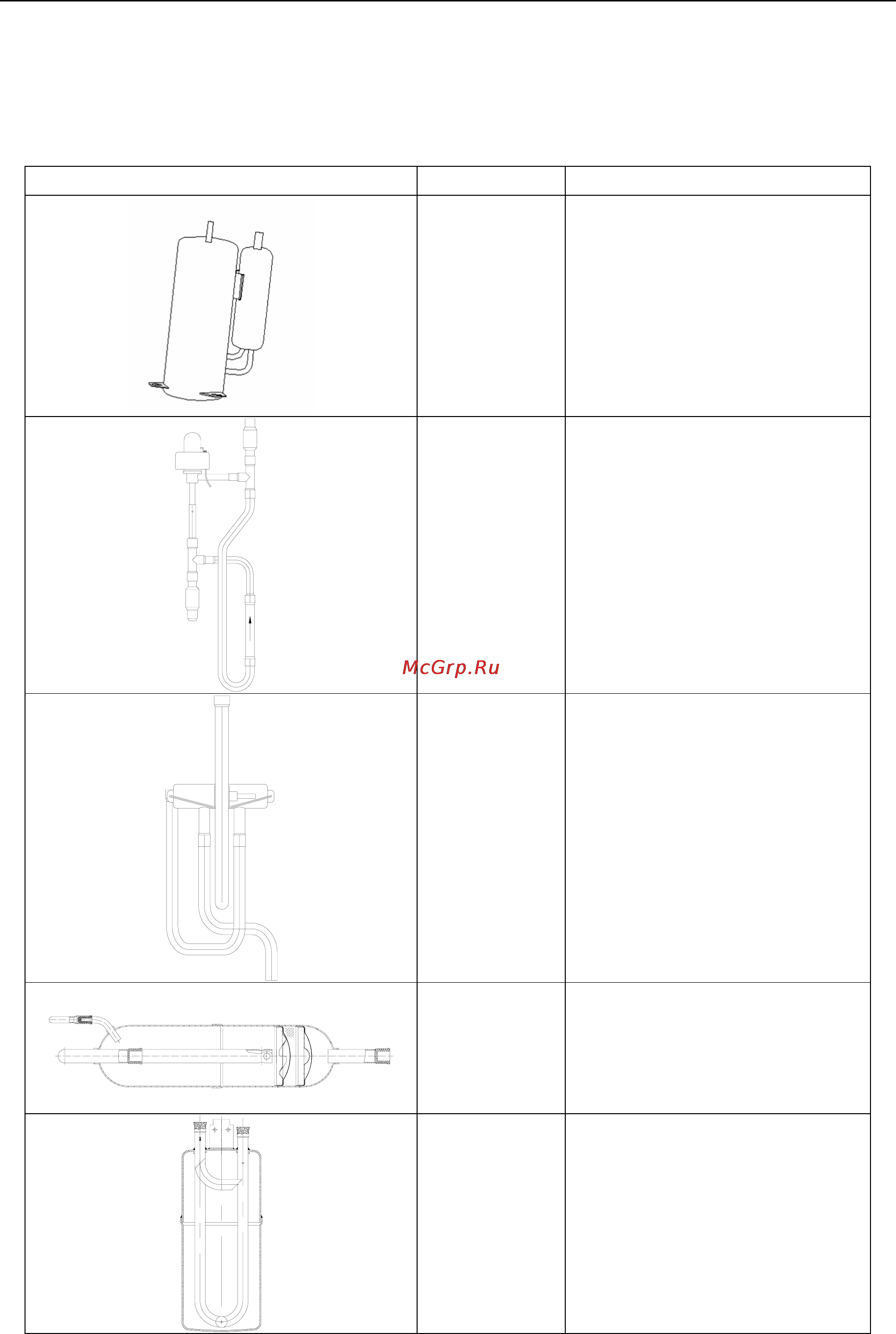

4.1 Introduction of Main Parts
GMV-Pds100W/Na-K.GMV-Pds120W/Na-K.GMV-Pds140W/Na-K.GMV-Pds160W/Na-K.RQD5GA
-K.RQD8GA-K
Illustration Name Function
Compress
or
It is key part of air conditioner which
inhales the gas with low temp and
low pressure, then compress it to be
the gas with high temp and high
pressure and finally discharge it.
Electric
expansion valve
It is throttling gear which turn the
high pressure and liquid refrigerants
to be low temperature vapor
4-way valve
It can change the flow direction of
refrigerants so that the switch
between cooling and heating can be
realized.
Oil separator
It is between discharge vent of
compressor and inlet of condensator
which separates the gas of
refrigerants from lubricants of
compressor.
Gas-liquid
separator
It is between outlet of condensator
and suction vent of compressor
which is used for separating
refrigerants.
