Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
141
Rear side
No limitation to wall height
Distance from the net unit
Up to 4 units in a line
Front side
Rear side
Front side

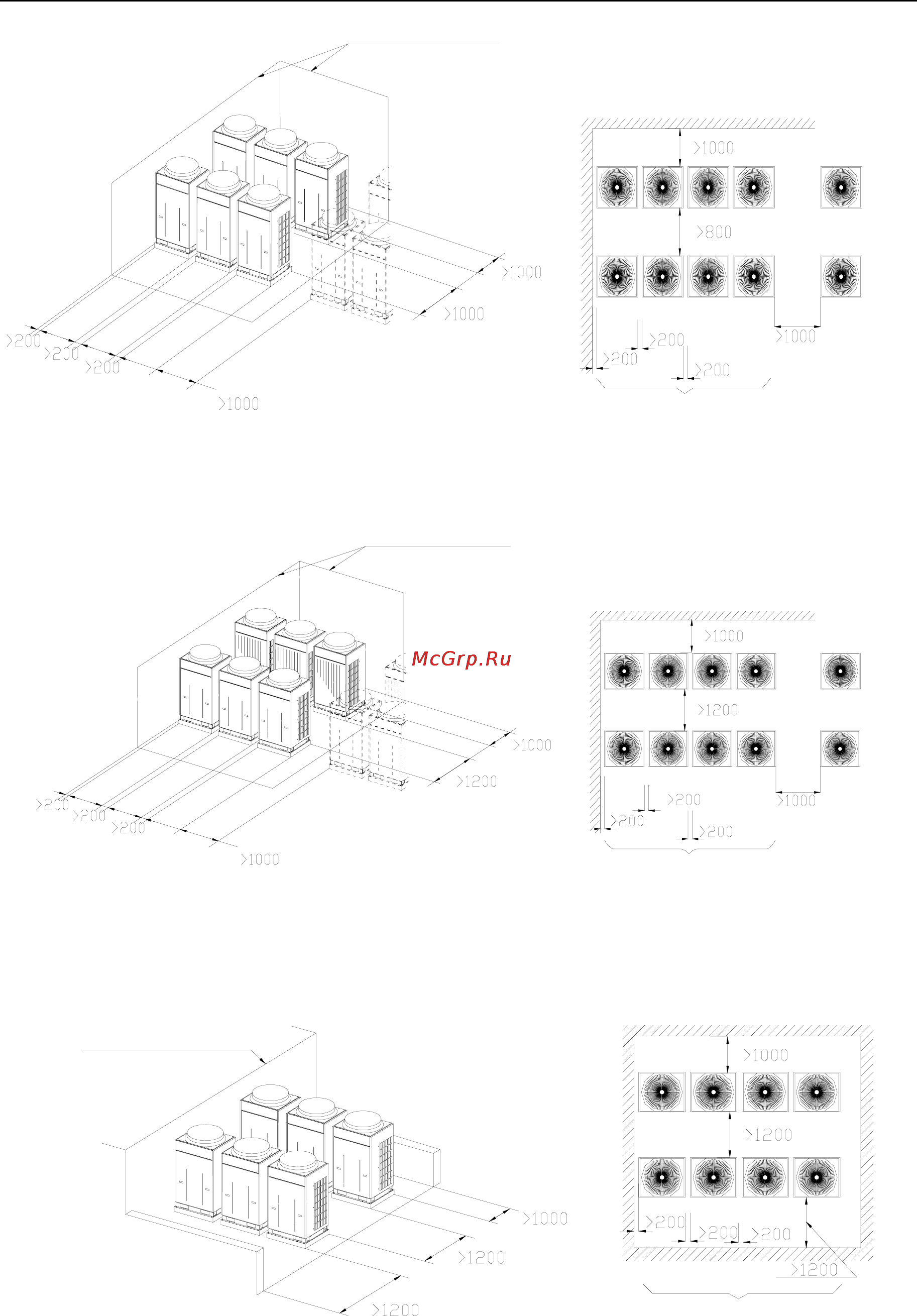

Install the units back to back:
Distance from the net unit
Front side
Ream side
Up to 4 units in a line
Front side
No limitation to wall height
Ream side
For the state that the units are surrounded by walls:
It is recommended to install the units at the same directions.
Ream side
Front side
Ream side
Up to 4 units in a line
No limitation to wall height
Front side
