Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
158
Sponge (Gray)
Drainage Hose

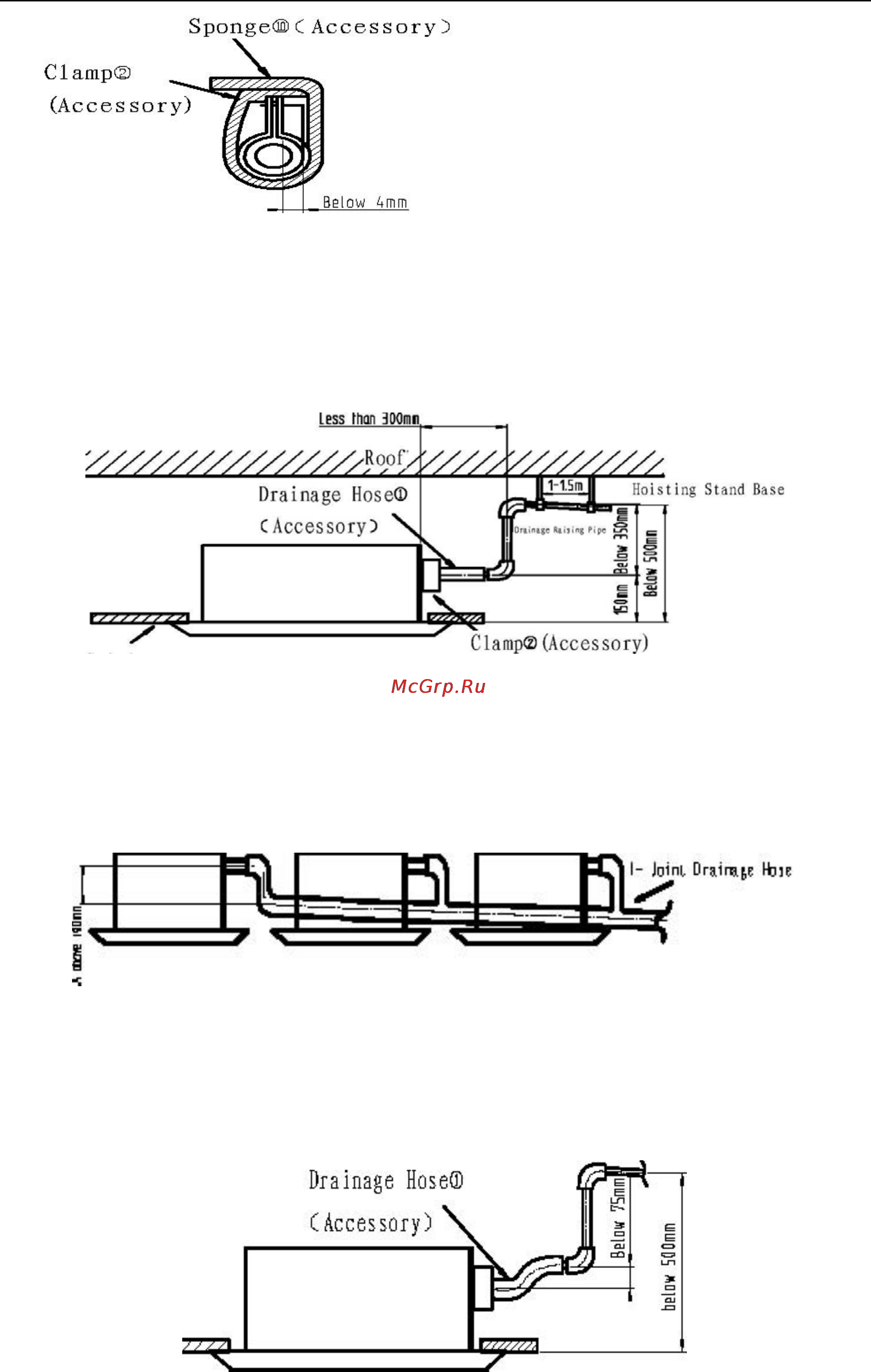

Notice for drainage raising pipe
● The installation height should be less than 280mm.
● A right angle should be formed by the drainage raising pipe and unit, which should not be more
than 300mm far from the unit.
Ceiling
Note：
● The gradient of the accessory drainage hose should be within 75mm so that the drainage faucet
need not endure extra outside force.
● If several drainage hoses join together, please install them according to the following process.
The specs of the selected joint hose should fit the running capacity of the units.
