Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
115
crystal head（crystal head buckle is downwards）

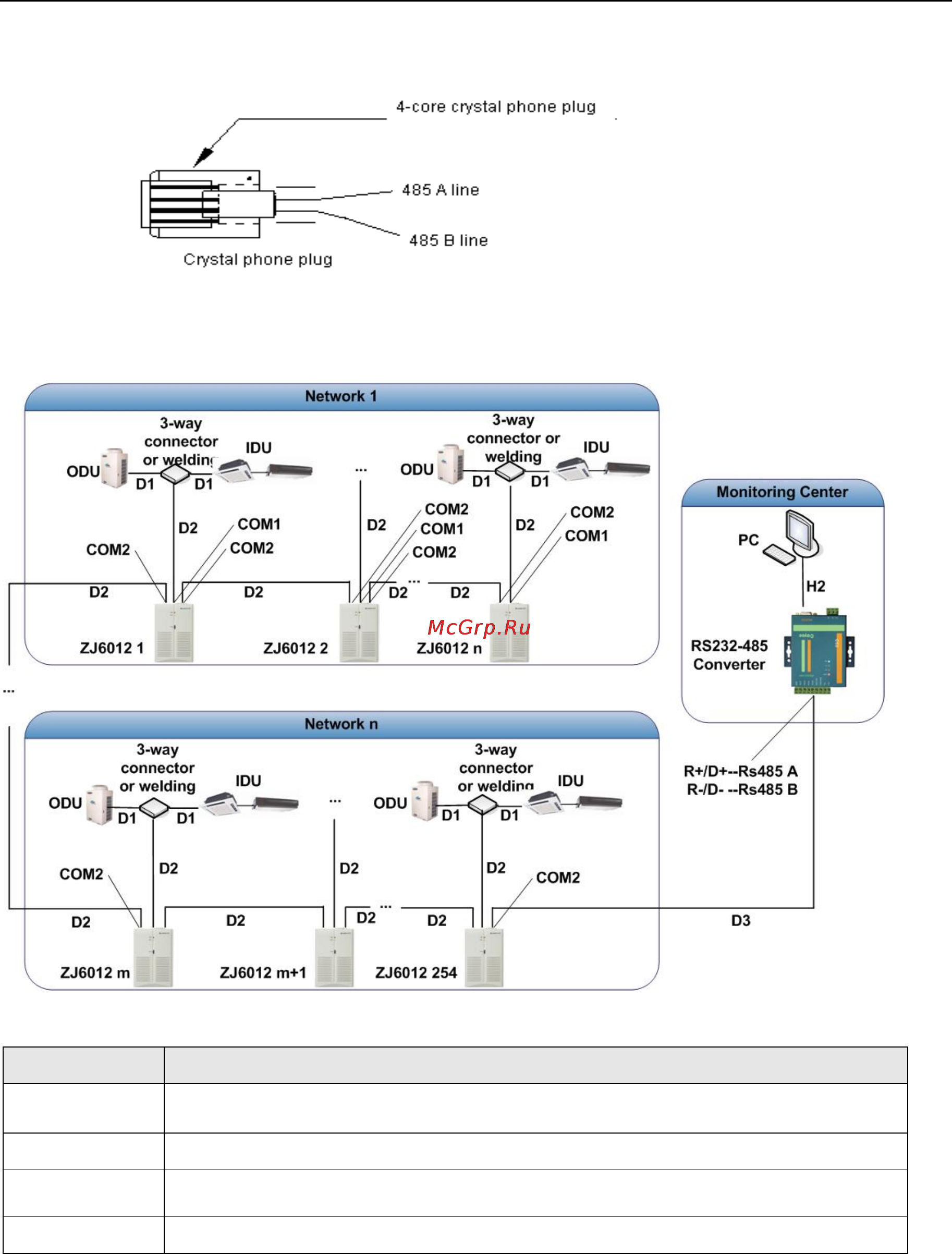

2. Wiring Diagram
Description of above communication cables
Cable Description
D1
crystal head and the other end is XH 4-core pin connector（2-core Type-V twisted pair
wire）
D2 both crystal head(Standard parts)
D3
crystal head and the other end connects of it connects with wiring terminal of converter.
（2-core Type-V twisted pair wire）
H2 both 9-core head (Standard parts)
