14.2 Specifications of power cord & circuit breaker
Model
Power supply
(V,Ph,Hz)
Capability of
circuit breaker
(A)
Min. sectional area
of earth lead (mm
2
)
Min. sectional area
of power cord (mm
2
)
GMV-Pds100W/Na-K 220V~ 50HZ 32A 1×6.0 2×6.0
GMV-Pds120W/Na-K 220V~ 50HZ 32A 1×6.0 2×6.0
GMV-Pds140W/Na-K 220V~ 50HZ 40A 1×10.0 2×10.0
GMV-Pds160W/Na-K 220V~ 50HZ 40A 1×10.0 2×10.0
GMV-Pds224W/Na-M 380V~ 50HZ 32A 1×6.0 4×6.0
GMV-Pds280W/Na-M 380V~ 50HZ 32A 1×6.0 4×6.0

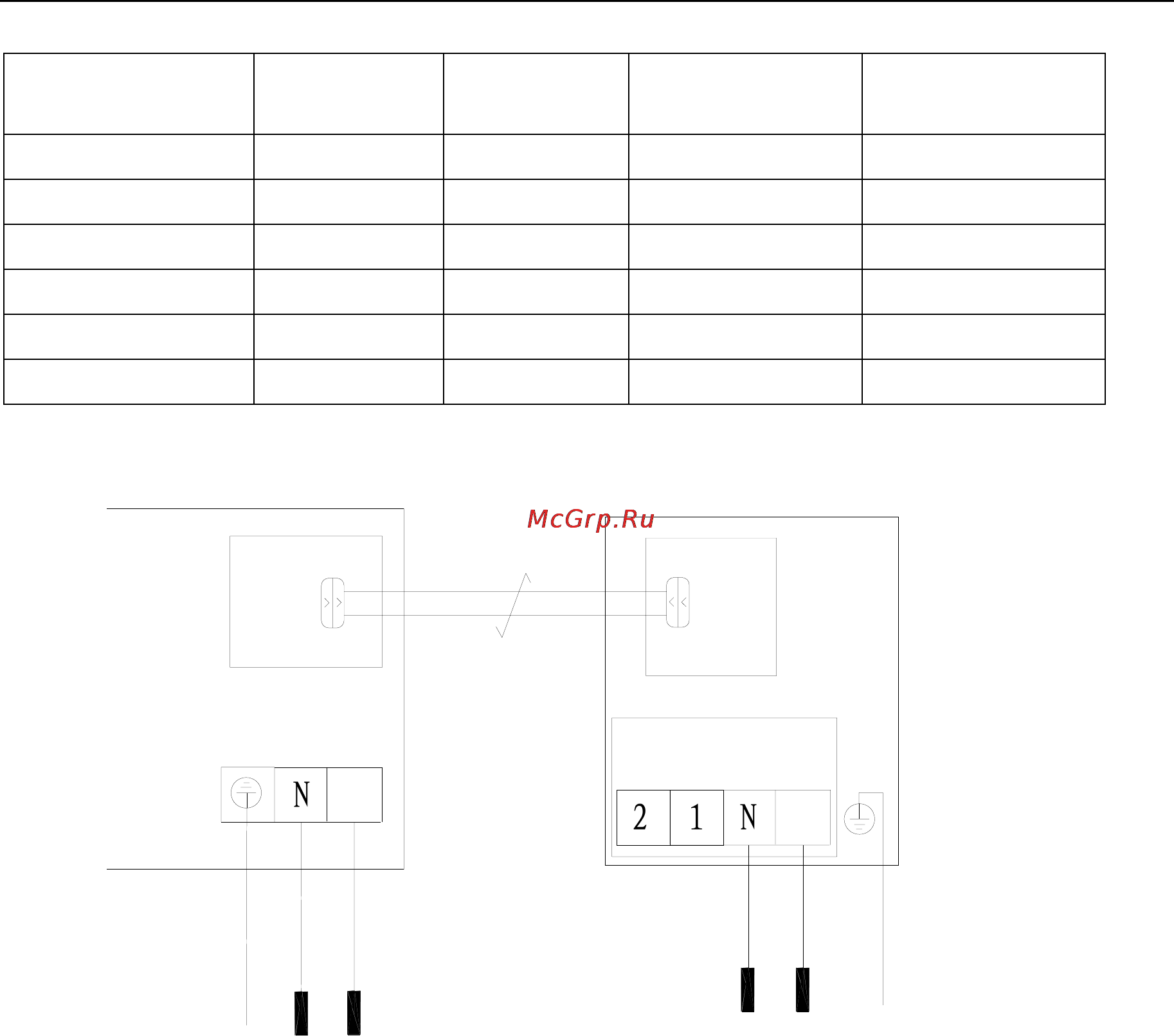

14.3 Wiring Sketch Map
14.3.1 Connections among Outdoor Unit, Power of Hydro-box and Communication Wire
hydro-box
mainboard
outdoor unit
patching board
L
L
CN20
patching board
L
L
N
PE
N
PE
communication wire
Mainboard
Connection Diagram RQD5GA.RQD8GA
