Gree HOME GMV [144/367] No limitation to wall height
![Gree HOME GMV [144/367] No limitation to wall height](/views2/1052459/page144/bg90.png)
Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
140
Electrical Box.
Outlet on this side.
If the unit is surrounded by walls, the above basic requirements for installation should be met.
For the state that front side and right/left side of the outdoor unit is open:

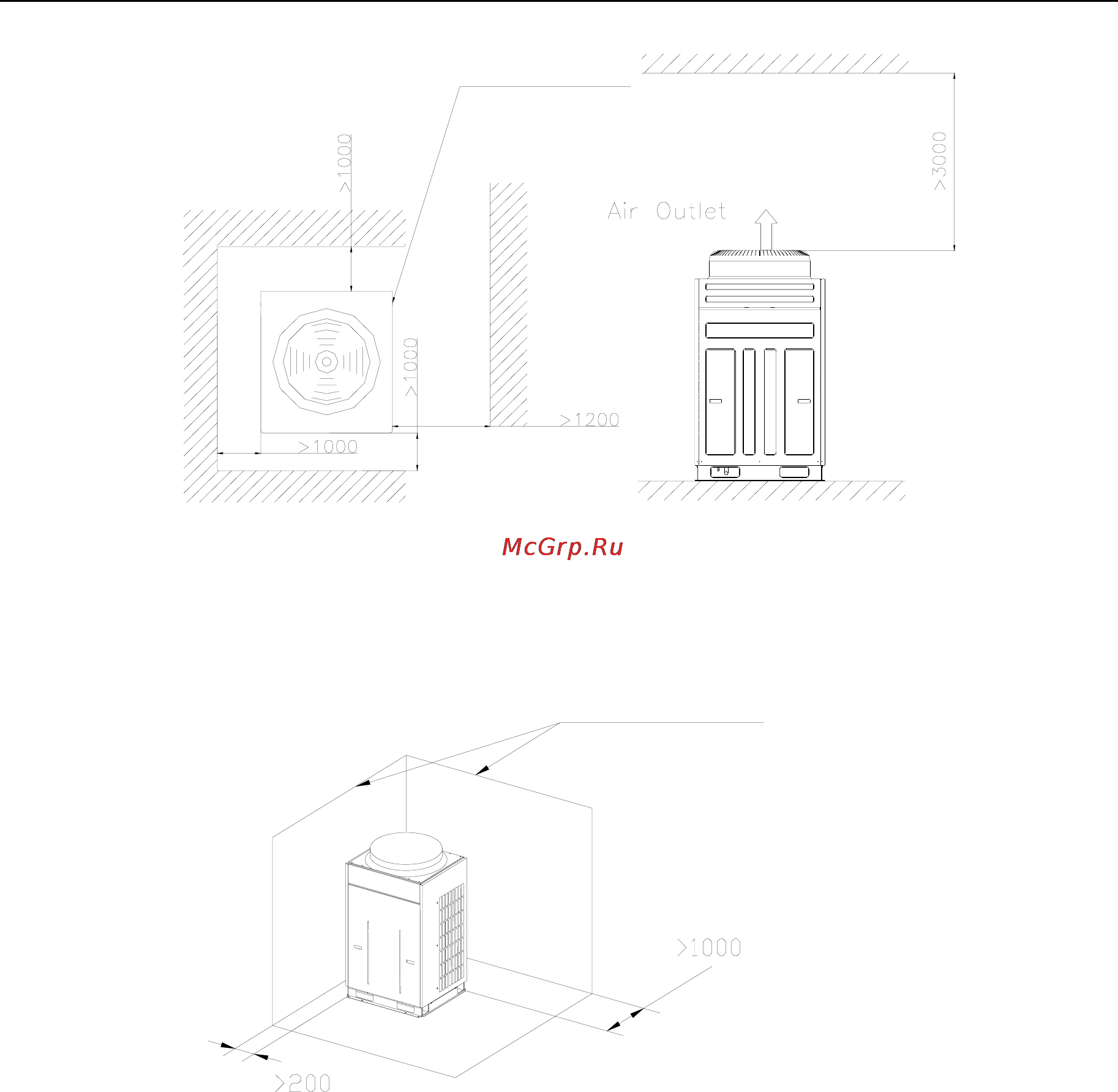

No limitation to wall height
Keep crown wall (air damper and suchlike barrier), if there is, 3000mm above from the top of unit.
Keep it 1500mm above from the top of the unit whose front, rear, left and right side are in the open
air. If not, a piece of return duct should be connected for smooth ventilation.
☆Installation space for multiple outdoor units
Keep top of units open, without air damper suchlike for smooth ventilation.
For the state that front side and right/left side of the outdoor units are open:
Install the unit at the same directions:
