Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
139

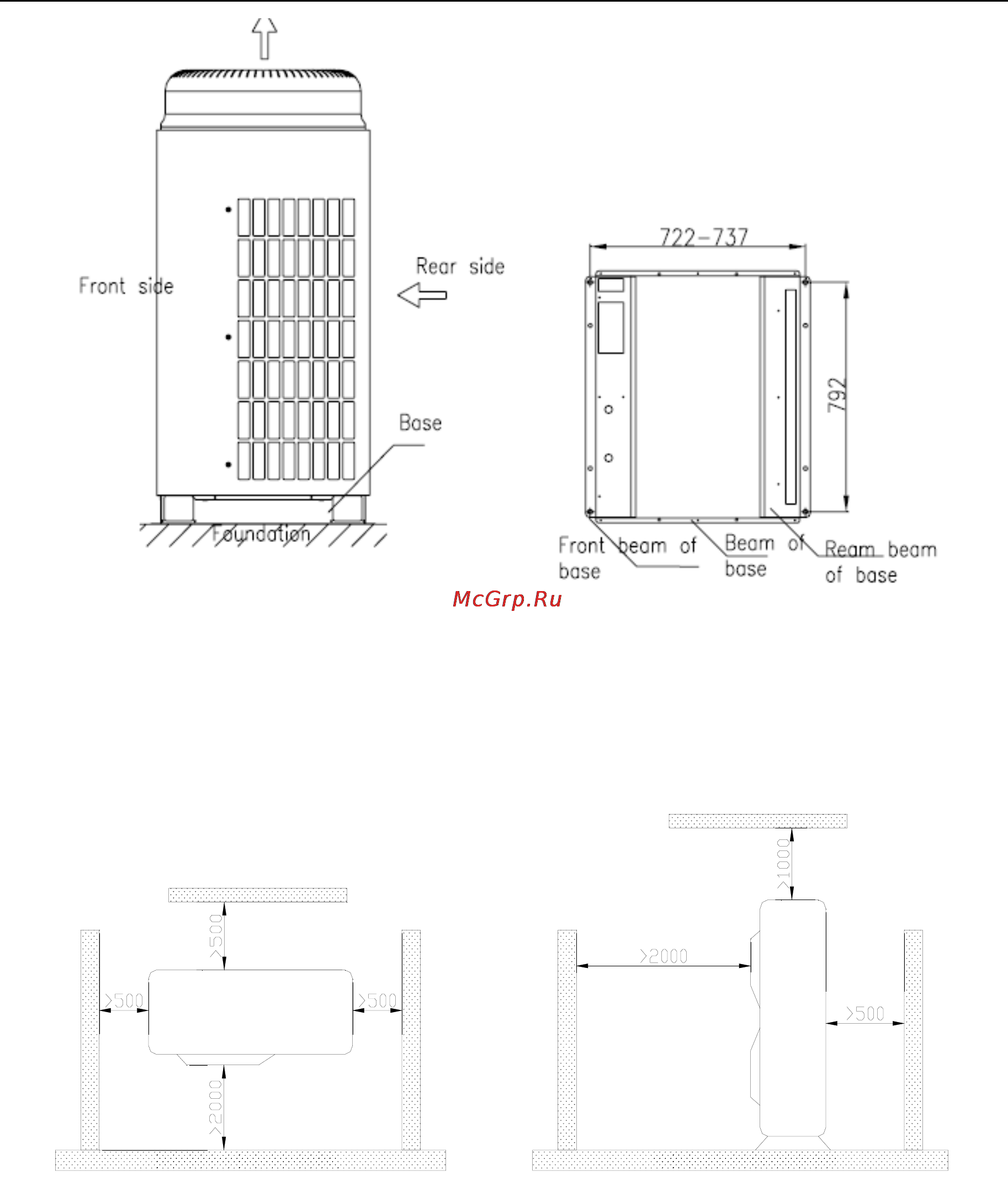

GMV-Pds224W/Na-M.GMV-Pds280W/Na-M Outdoor Unit Installation Holes
5.4 Space dimension for installation of the unit is shown below.
5.4.1 Installation Dimension of the Unit with Side Air Outlet
☆ GMV-Pds100W/Na-K.GMV-Pds120W/Na-K.GMV-Pds140W/Na-K.GMV-Pds160W/Na-K
Installation Dimension of Outdoor Unit
5.4.2. Installation Dimension of the Unit with Top Air Outlet
☆ Outdoor Unit Installation Space Dimension
GMV-Pds224W/Na-M.GMV-Pds280W/Na-M Outdoor Unit Installation Space Dimension
