Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
79
The address which DIP switch refers to is listed as follows.

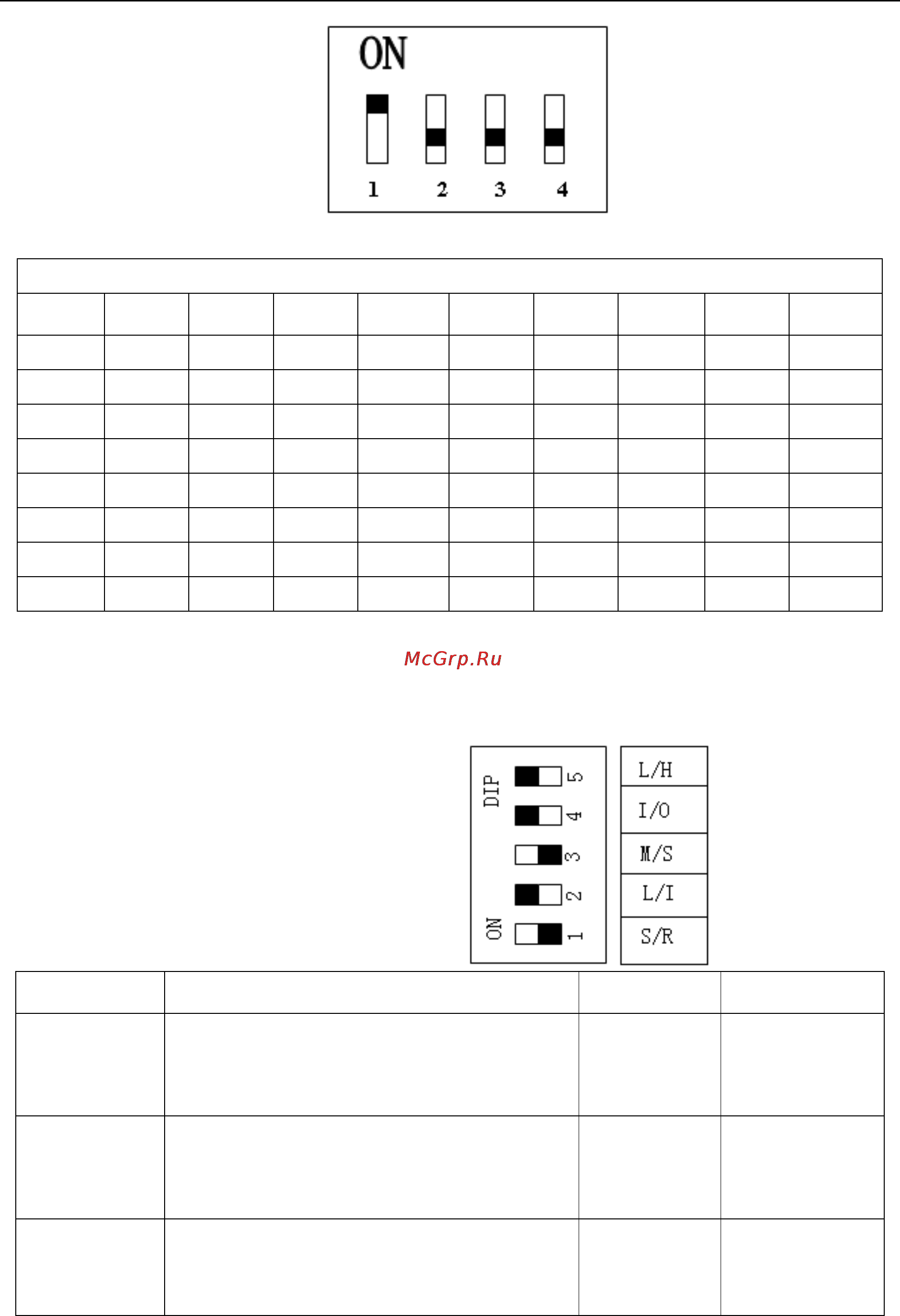

Dial-up code table (4 positions DIP switch)
Position
4
Position
3
Position
2
Position
1
Address
Position
4
Position
3
Position
2
Position
1
Address
ON ON ON ON 1 OFF ON ON ON 9
ON ON ON OFF 2 OFF ON ON OFF 10
ON ON OFF ON 3 OFF ON OFF ON 11
ON ON OFF OFF 4 OFF ON OFF OFF 12
ON OFF ON ON 5 OFF OFF ON ON 13
ON OFF ON OFF 6 OFF OFF ON OFF 14
ON OFF OFF ON 7 OFF OFF OFF ON 15
ON OFF OFF OFF 8 OFF OFF OFF OFF 16
10) Function Code Setting
☆ Before power on of the main board, 4-bit dial switch must be set to decide running status of indoor unit.
☆ Function description is as below:
DIP swicth silk
print
Functional Description Dialing on Dialing off
1（S / R）
Selecting of memory mode:
A. Electrifying renew mode and electrifying
standby mode select;
B. This function is effective without wired
controller.
Electrifying
standby
Electrifying
renew
2（L / I）
Selecting of wired controller and receiver head
A. If you select wired controller the function of
receiver head will be shield;
B. If you select receiver head the wired
controller can not work.
Selected
wired
controller
Selected
receiver head
3（M / S）
Setting of master / slave indoor unit:
A. To slove the problem of mode conflict;
B. This function will be effective when
controlled without wired controller.
Master indoor
unit
Slave indoor
unit
