Gree HOME GMV [85/367] Wireless remote controller
![Gree HOME GMV [85/367] Wireless remote controller](/views2/1052459/page85/bg55.png)
Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
81
3 WIRELESS REMOTE CONTROLLER
NOTE!
① Make sure that there is no obstruction between the remote control and the signal
receptor.
② The remote control signal can be received at the distance of up to about 10m.
③ Don’t drop or throw the remote control.
④ Don’t let any liquid flow into the remote control.
⑤ Don’t put the remote control directly under the sunlight or any place where is very hot.

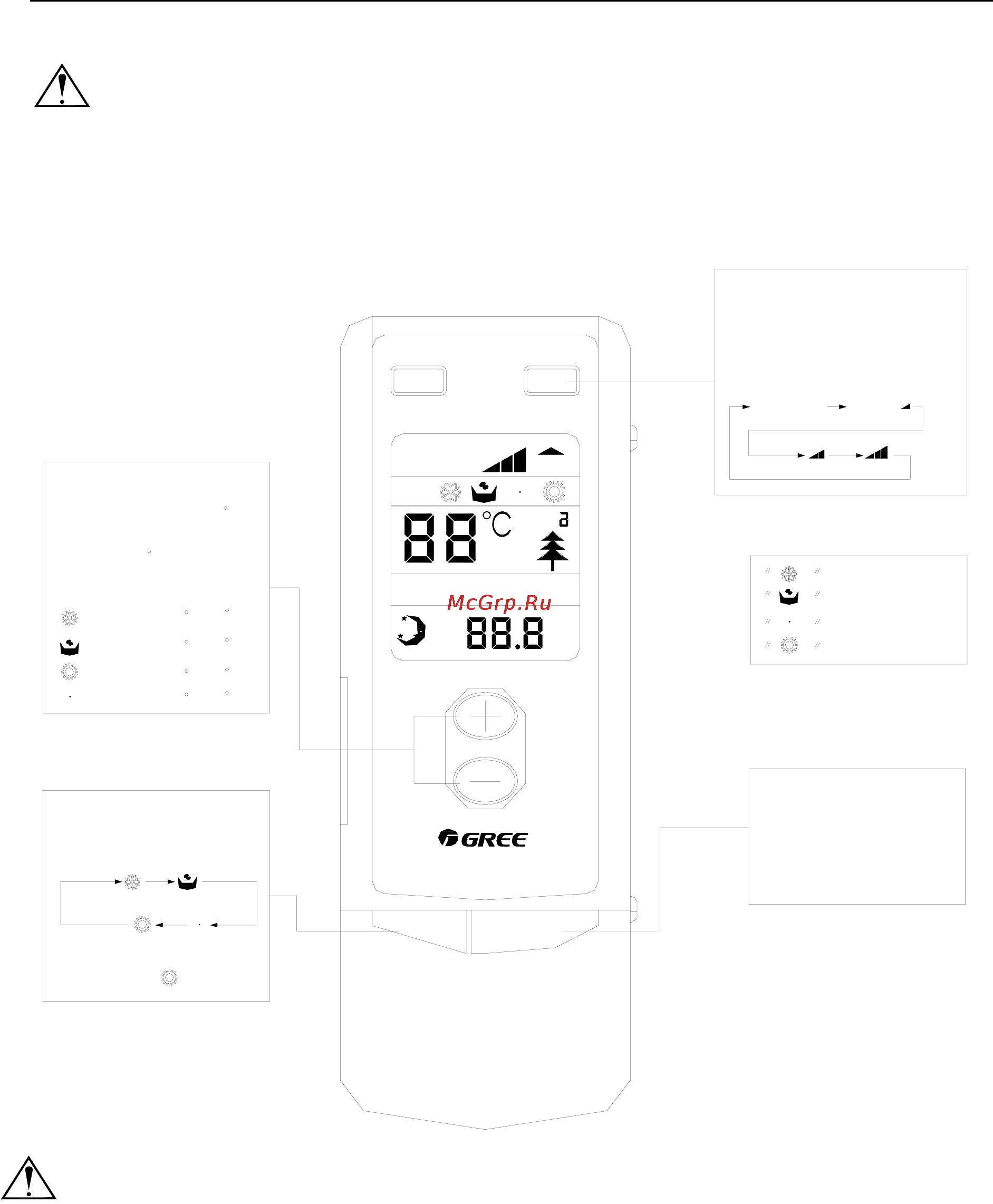

Press the button to
change the speed of the
fan according to the
following order.
HEAT
COOL
DRY
FAN
ON/OFF button
Press the button to turn on
the unit. Press the button
once again to turn off the
unit and cancal the timer.
SWING FAN
AUTO FAN
MODE
TIMER
ONOFF
AUTOFAN
NOTE: The cooling only
units have no mode.
Press the button to change
the mode according to the
following order
MODE button
Set temp. : 16 c~30 c
Set temp. : 16 c~30 c
Set temp. : 16 c~30 c
Set temp. : 16 c~30 c
Set temp. increases 1 c
by pressing "+" and
decreases 1 c by pressing
"-" once.
TEMP. button
SWING
AUTO
ON/0FF
HUMID LIGHT
HR.
SAVE
AIR
OPER
FAN button
SPEED
NOTE!
After every indoor unit received the turn off signal, the fan and electric inflate valve will
continue to work for 20-70mins to make use of the rest cool or rest heat, while for
preparation for the nest work. And this is normal phenomenon.
