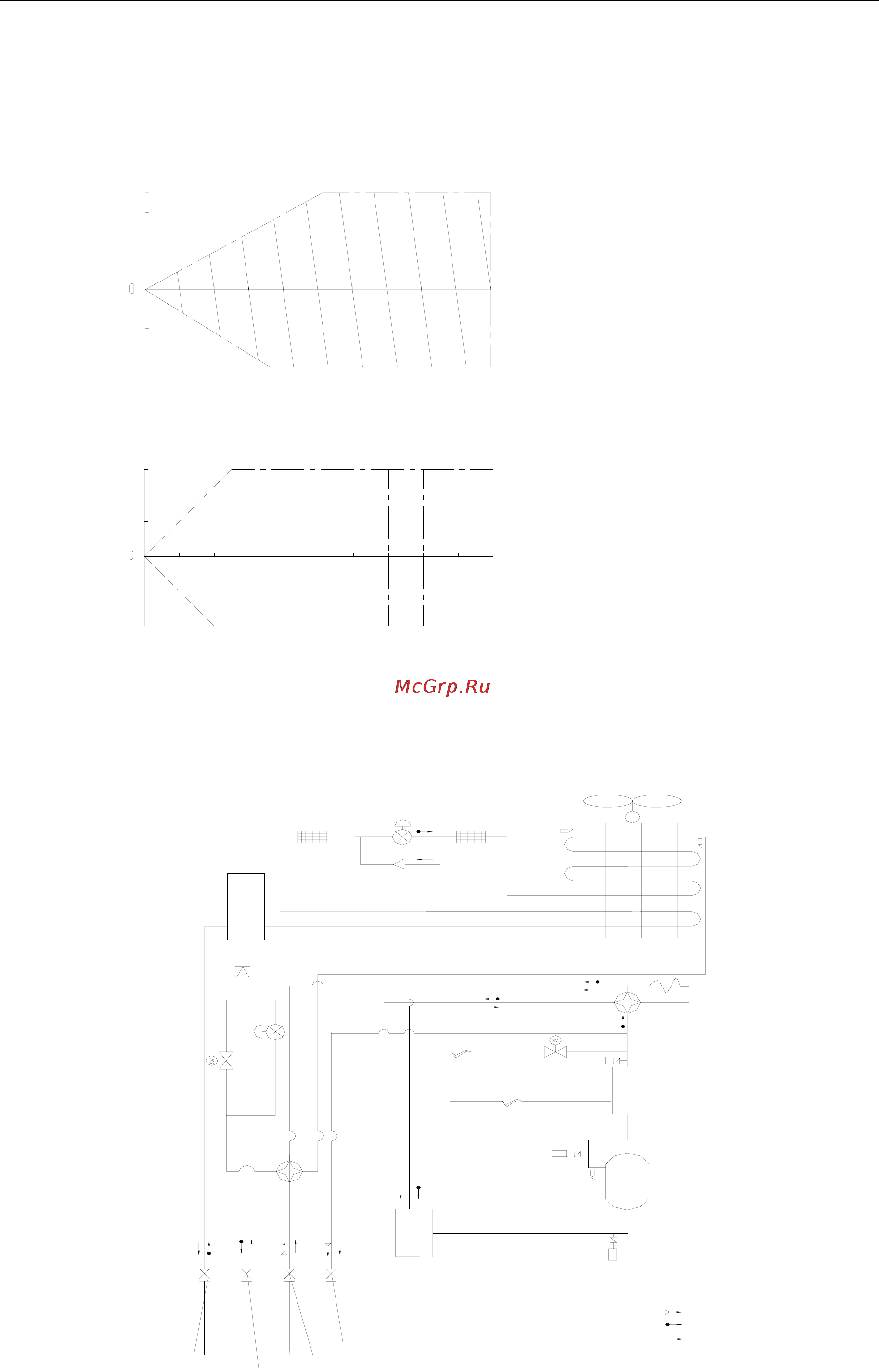

Gree HOME GMV [52/367] Principle of work
![Gree HOME GMV [52/367] Principle of work](/views2/1052459/page52/bg34.png)
Dc Inverter VRF plus Water Heater Solution Service Manual PRODUCT
48
L： Length of Single-pass Equivalence Pipe
z The below diagrams illustrate change rate of capacity under standard operating mode (Cooling setting
on thermostat is 16℃ and heating setting is 30℃)
（1）Change Rate of Cooling Capacity
25
0.97
Hm(m)
20
10
Hp(m)
1.0
10
10
20
4020 30 50 60
L(m)
8070 90 100
0.95
0.92
0.90
0.85
0.87
（2）Change Rate of Heating Capacity
If there is snow on outdoor heat exchanger or the outdoor temp is lower than 6℃ when heating, the frosting
maybe occurs which will reduce the heating performance of the unit.
6 PRINCIPLE OF WORK
6.1 System Flowchart
Gas-liquid separator
Cooling
Heating
LV sensor
DC variable-frequency
compressor
High-pressure
Switch
By-pass air capillary
Electronic magnetic
valve "A"
One-way valve
Outdoor side
Filter
Liquid storage
Oil separator
Oil return capillary
So lenoid
valve "B"
Filter
M
ERG cooler
Heat exchanger
HV sensor
4-way
Valve
"B"
4-way Valve "A"
Capillary
One-way valve
Electronic
magnetic
valve "B"
Hot Water Generation
Variable frequency motor
Cutoff
valve
To Hydro unit gas pipe
To Hydro unit Liquid pipe
To indoor uint liquid pipe
To indoor uint gas pipe
Indoor side
Hot water side
70
20
10
Hm(m)
10
10
Hp(m)
20
25
20 30 5040 60 9080
100
L(m)
1.0
0.97
0.92
0.9
