Gree HOME GMV [279/367] Electrical parts box
![Gree HOME GMV [279/367] Electrical parts box](/views2/1052459/page279/bg117.png)
Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
275
Disassembly and Assembly of
electrical parts box
Remark :

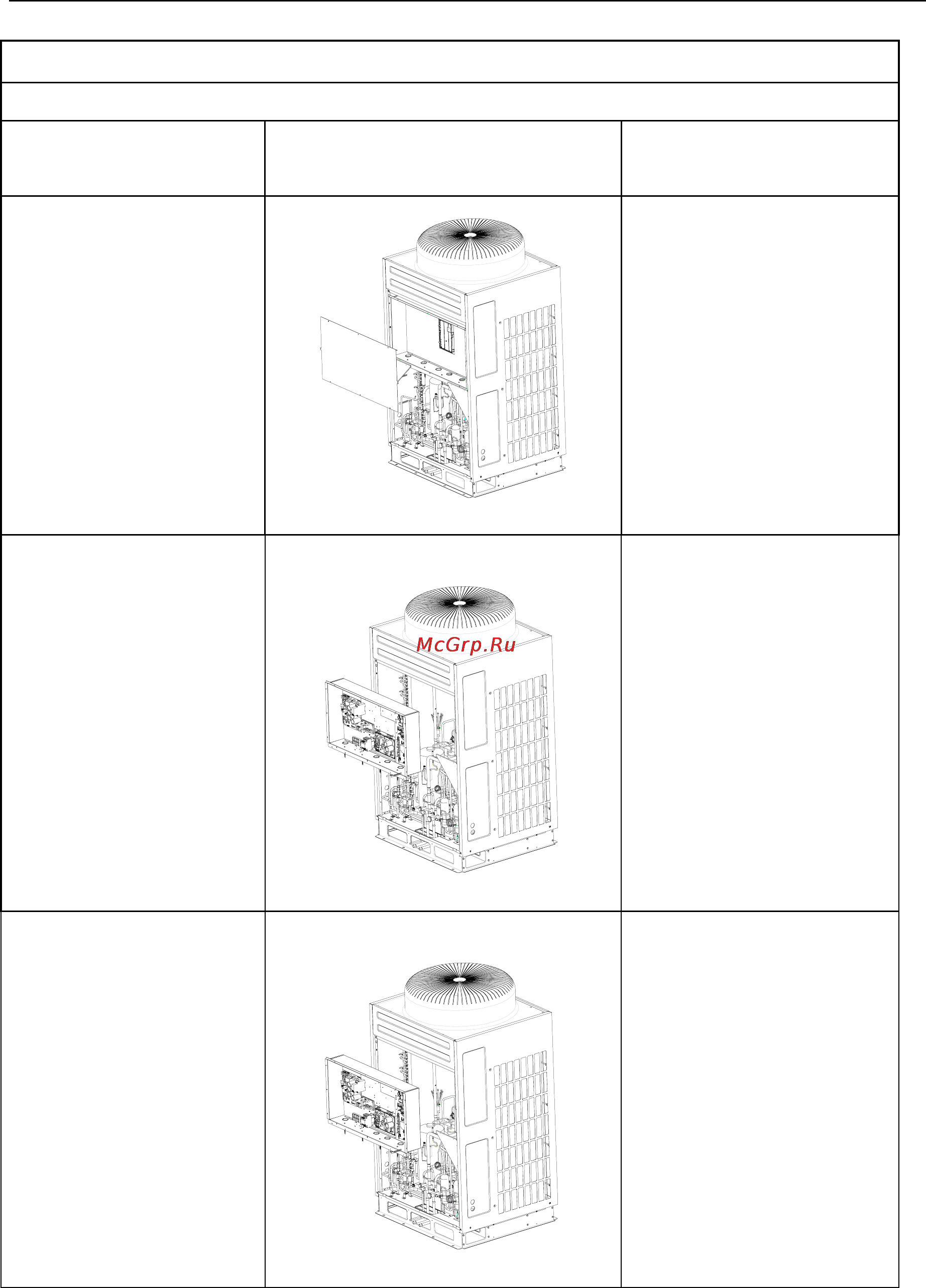

Step Illustration Handling Instruction
1 ． Disaasembly of the
cover of electric box
①Remove the bolts;
②Remove the cover of electric
box.
2 ． Disaasembly of electric
box
①Unplug each power cord and
communication wire on
mainboard.
②Remove screws.
③ Disassemble electric box.
3． Assemble it according to
reversed steps.
①Assemble it according to
reversed steps, and then
inspect it after energization.
