Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
108
Note: The above figure is only for reference to relation among the equipments. The actual wiring is subject
to the above frame diagram of system
●

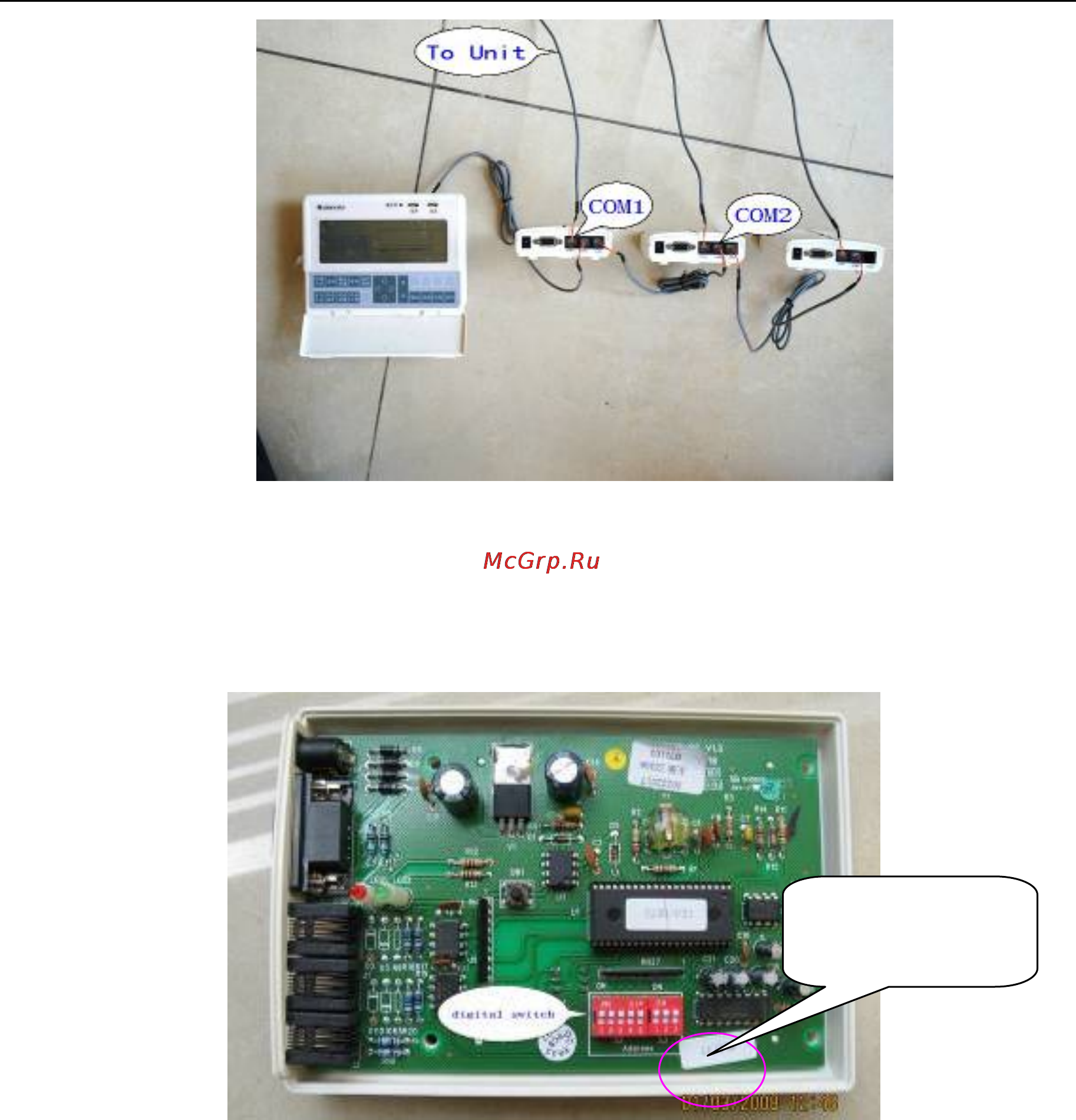

Step 3: There are two methods of DIP address setting of communication module
Method 1: The address of each communication module has been fixed in the factory and marked on the label
at the back of it. It is unnecessary for users to set anything. In addition, the 3-digital DIP can not be dialed to OFF
completely, as shown below:
Method 2: Manual setting of address, as operated the following:
1. Dial the digital switch at the back of communication module to OFF completely, as below:
Label for address of
communication module
