Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
109

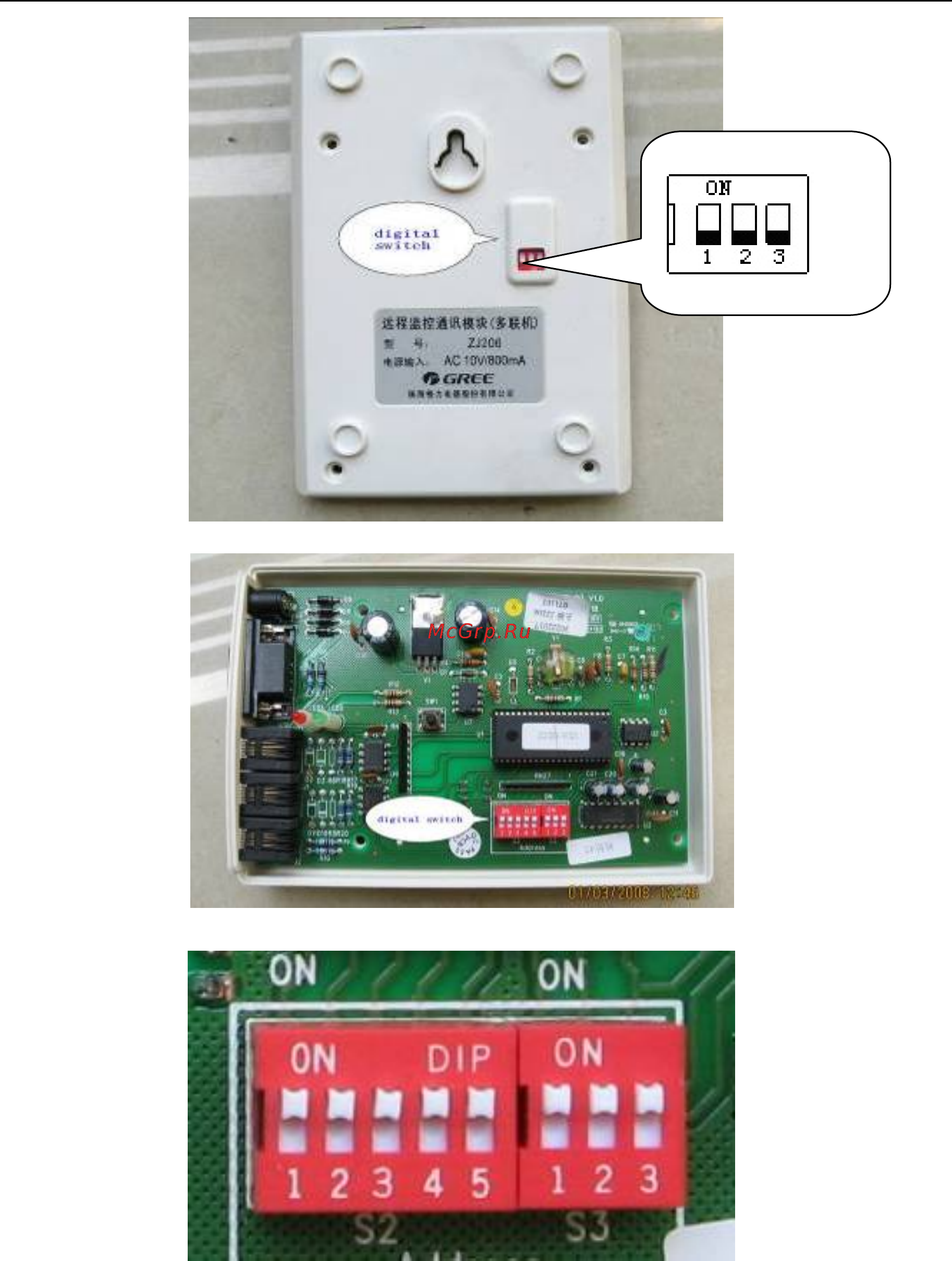

2.Open the cover of communication module as below:
The 8-digital DIP is as below:
Dial the 3 rods to OFF.
