Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
193
11 INSTALLATION OF ELECTRONIC EXPANSION VALVE PARTS
11.1 Direction Requirements
To ensure normal operation of the unit, please connect the electronic expansion valve
sub-assembly as shown below.

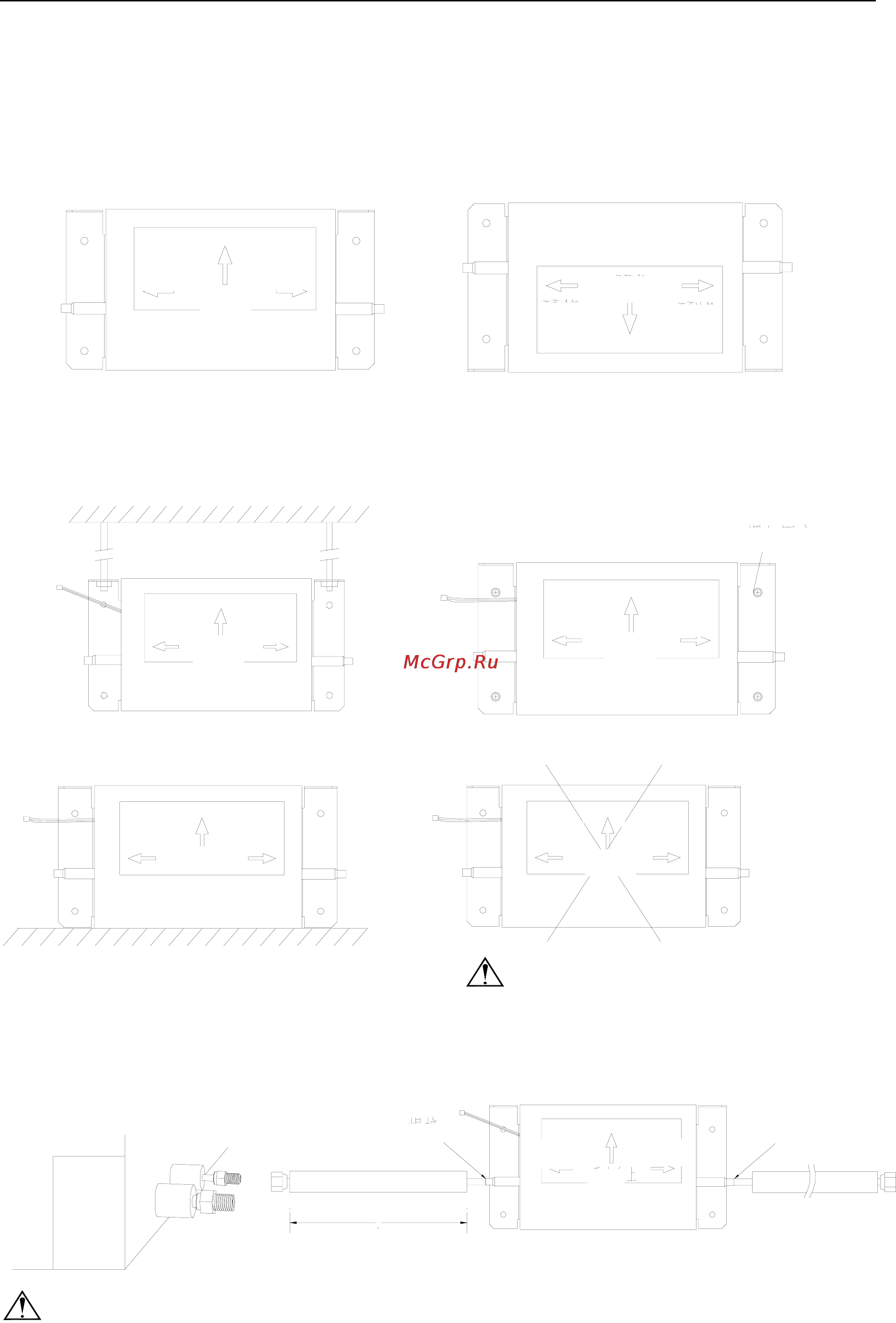

Ensure that the vertical arrow labeled on electronic expansion valve sub-assembly is pointed
upward.
√Arrow Upward X Arrow Downward
（1） Firstly, fix the electronic expansion valve sub-assembly properly. Several operating
methods are available:
① Suspend by using screw rod Use screws to fix onto wall②
Directly place on ceiling plane ③
Caution: Never place overhung in air.
（2） The indoor unit shall be firstly connected to a section of pipe (connected by nut). Then,
connect the pipe to the electronic expansion valve sub-assembly (by
welding).
WARNING: The length of connection pipe must be 1m≤L≤1. 5m. The electronic
expansion valve sub-assembly must be connected to the indoor and outdoor unit in a
direction as marked. If connected in reverse direction, severe error will be caused to the
To Indoor
Unit
To Indoor
Unit
To Indoor
Unit
To Indoor
Unit
To Indoor
Unit
To Outdoor
Unit
To Outdoor
Unit
To Outdoor
Unit
To Outdoor
Unit
To Indoor
Unit
To Outdoor
Unit
To Outdoor
Unit
To Indoor
Unit
Vertically
upward
Vertically
upward
Vertically
upward
Vertically
upward
Vertically
upward
Vertically
upward
Fix with screws
Overhung
Weldin
g
To
Out
door
Vertic
ally
Welding
Pipe length: L＞1m, but ＜1.5m
