Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
97
Connection Diagram
5 FIELD CONTROLLER
5.1 Function
Region monitoring control and region wired control are the two main control functions for region
controller.
Region monitoring controller can monitor or control 16 indoor units of a group for inquiry and single or
centralized control.
Region wired controller can replace 1-16 selected wired controllers to uniformly set or control the indoor
units.
Refer to Fig.1.1, Fig.1.2 about the Sketch map to the relation among the region controller, region
monitoring controller and region wired controller.

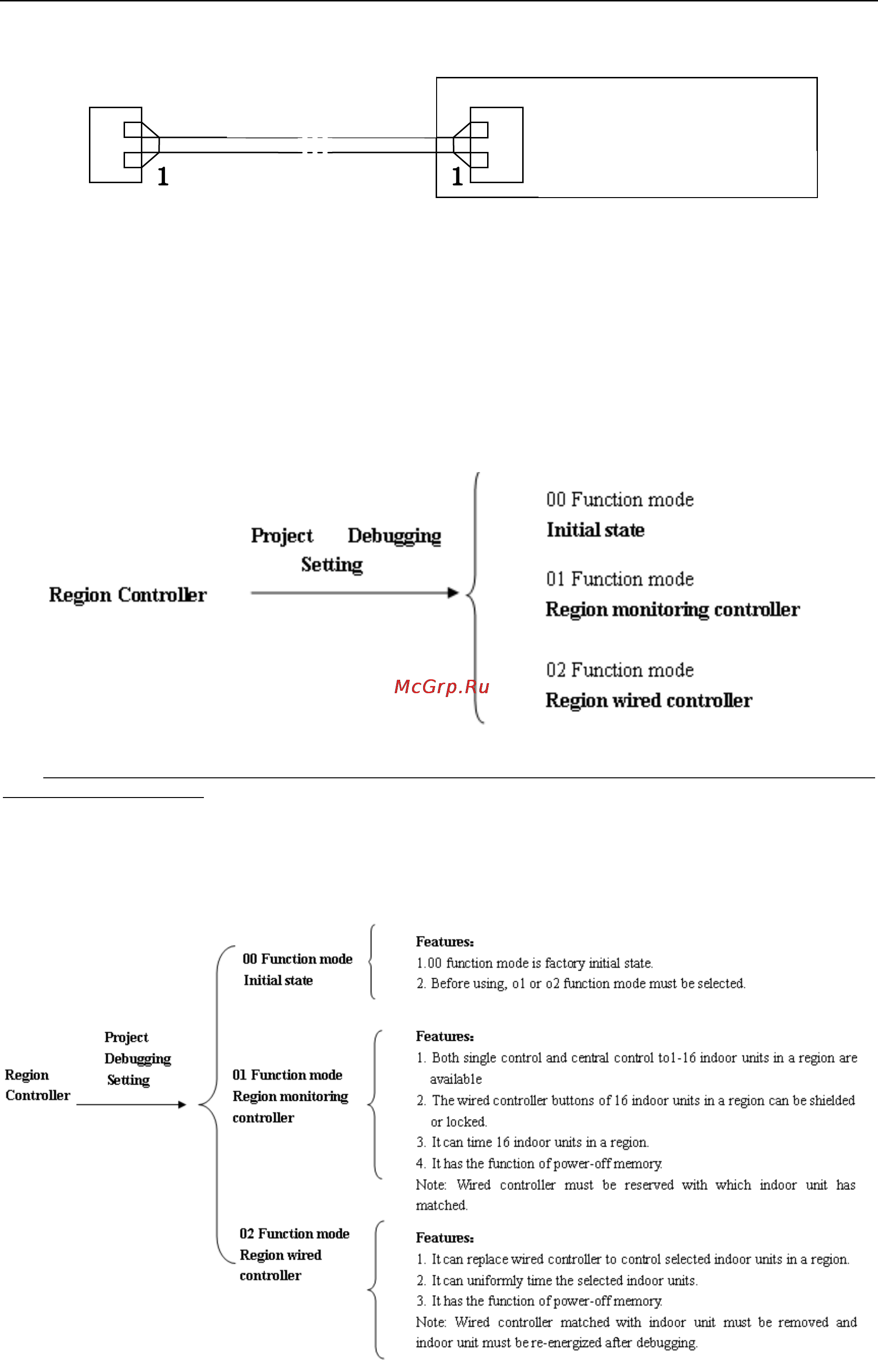

Fig.1.1
Before using, the controller functions must be selected by the personnel who performance the installation with
the requirements of users. Please refer to Project Debugging Setting section for the details.
Note: If the controller is set to be region wired controller, the wired controller of the selected indoor unit
must be removed.
The region controller can be matched with long-distance monitor. As a region monitoring controller, its control
is subject to that of the long-distance monitor. In the same group, one of the region controllers can be used as
region monitoring controller and matches one or more region wired controller which replace(s) one or more wired
controller, in which case, the region monitoring controller can also monitor or control the region wired controller.
Fig.1.2 Sketch map to the relation among the region controller, region monitoring controller and region
Wired Controller of Hydro-box
Exclusive 4-pin twisted pai
r
line
CN1
Main board of hydor-box
Connecting terminal of 4-pin wire
