Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
GMV-R28Zd/Na-K,GMV-R36Zd/Na-K,GMV-R50Zd/Na-K,GMV-R71Zd/Na-K,GMV-R90Zd/Na-K,GMV-R112Zd/Na-K,G
MV-R125Zd/Na-K,GMVL-R28Zd/Na-K,GMVL-R36Zd/Na-K,GMVL-R50Zd/Na-K,GMVL-R71Zd/Na-K,GMVL-R90Zd/N
a-K,GMVL-R112Zd/Na-K,GMVL-R125Zd/Na-K

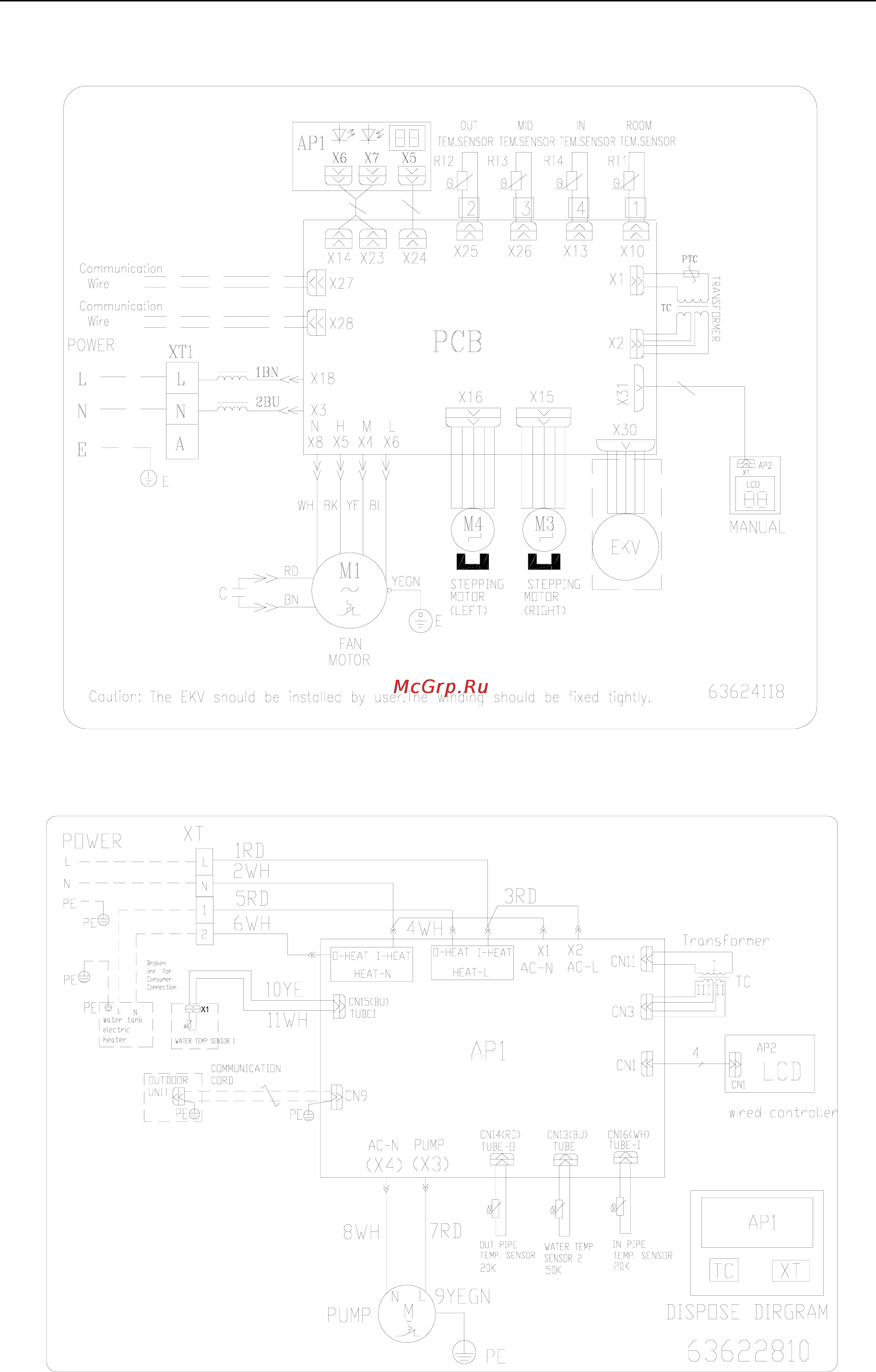

3.2.3 Circuit Diagram of Hydro-box
RQD5GA-K.RQD8GA-K
