Dc Inverter VRF plus Water Heater Solution Service Manual SERVICING
276

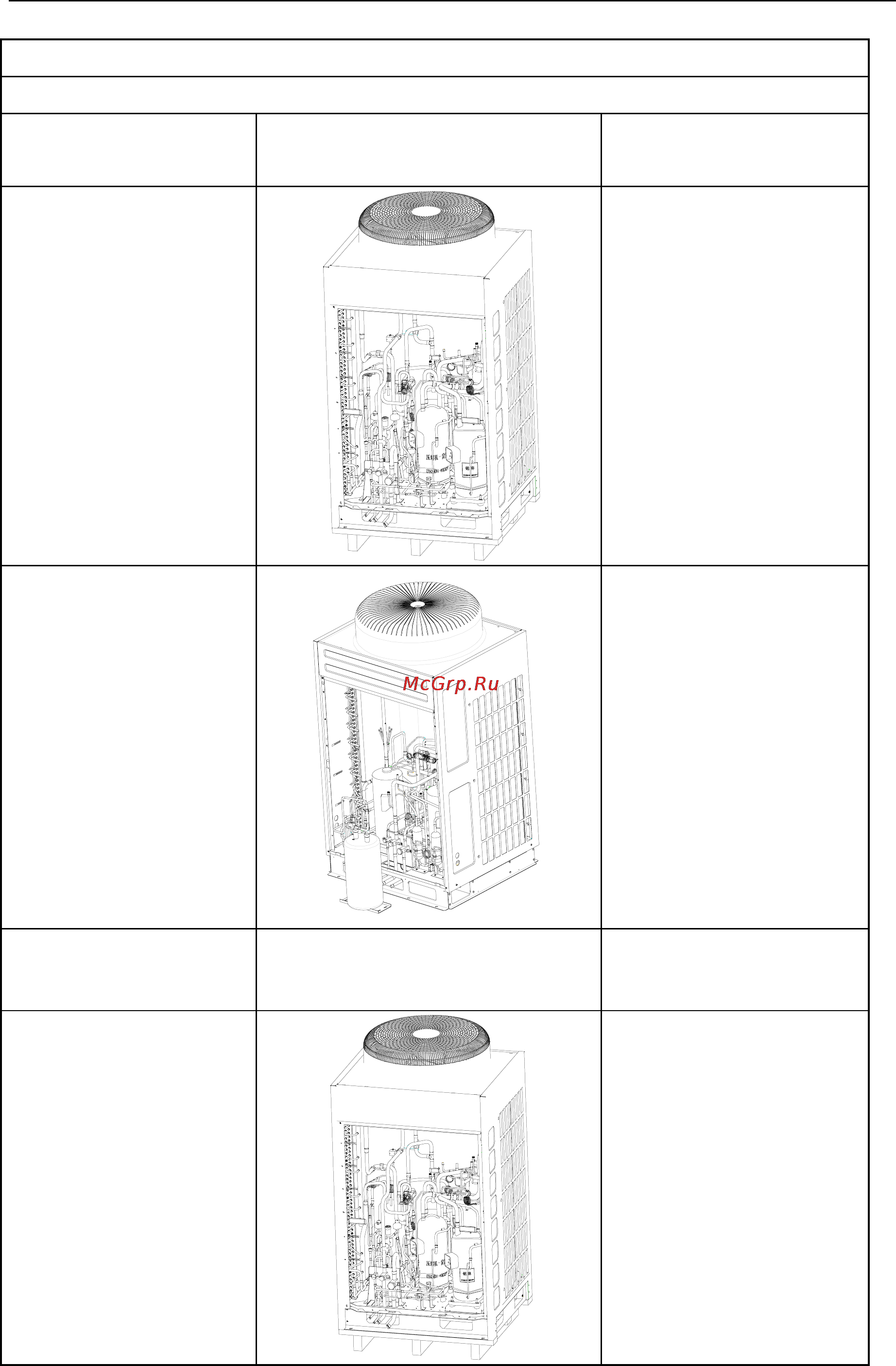

Disassembly and Assembly of Vapour Liquid Separator
Remark :
Step Illustration Handling Instruction
1． Disconnect the gas-liquid
separator with its pipeline.
①Disconnect the gas-liquid
separator with its pipeline.
2 ． Remove the gas-liquid
separator from chassis.
①Remove the bolts
②Remove it from chassis.
3. Fix the new gas-liquid
separator on chassis
①Place it on correct position.
②Screw the bolts up.
4. Connect the gas-liquid
separator with pipeline.
①Weld the pipe with gas-liquid
separator.
