Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
138

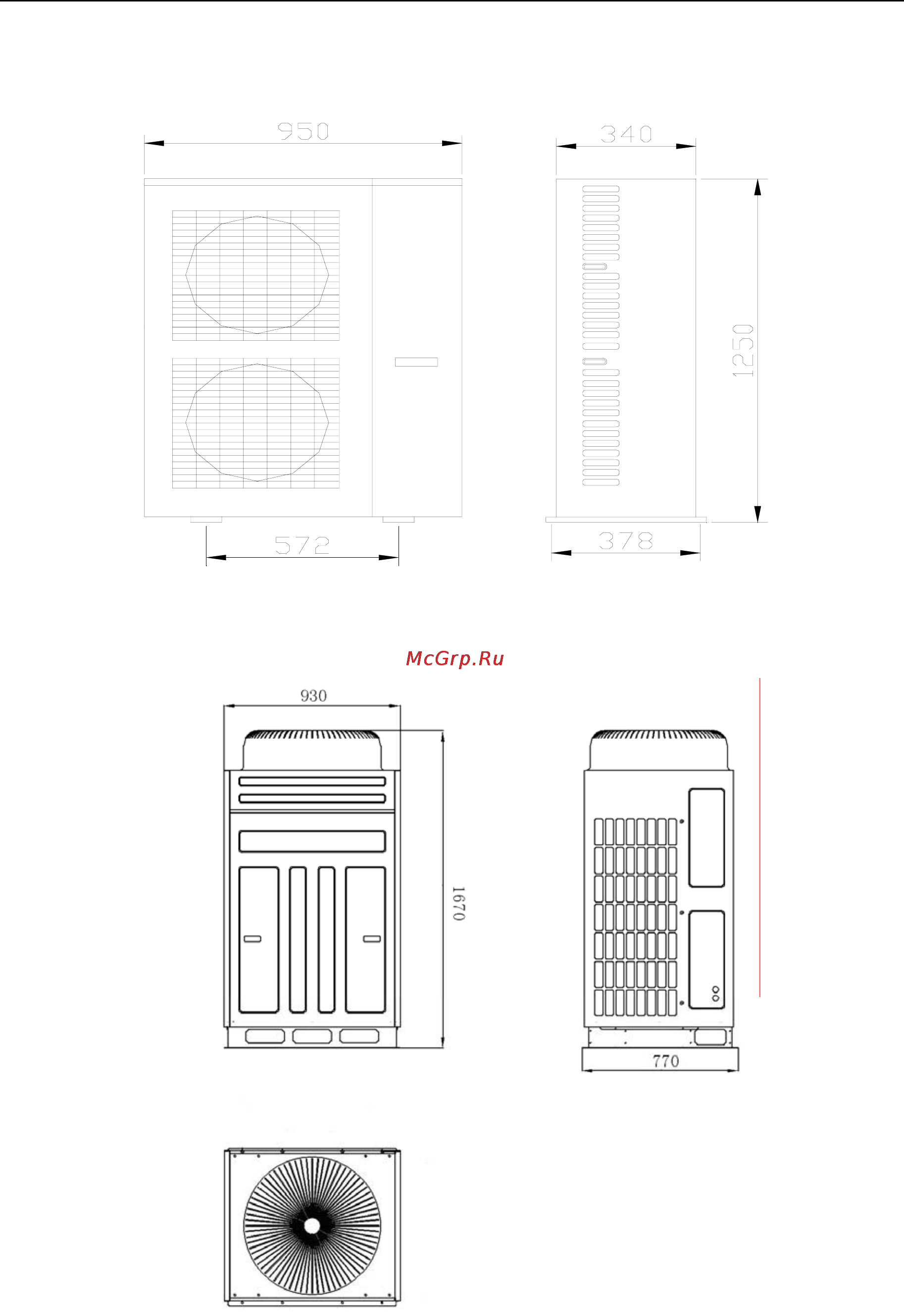

5.3 Dimension and Hole Site
GMV-Pds100W/Na-K，GMV-Pds120W/Na-K, GMV-Pds140W/Na-K, GMV-Pds160W/Na-K
Fix the support legs and underframe of the unit with M 12 bolts and install the unit on the concrete
foundation with 10cm height.
GMV-Pds224W/Na-M.GMV-Pds280W/Na-M
（The picture is just for reference and the practicality is the standard ）
Hole Site of Outdoor Unit
