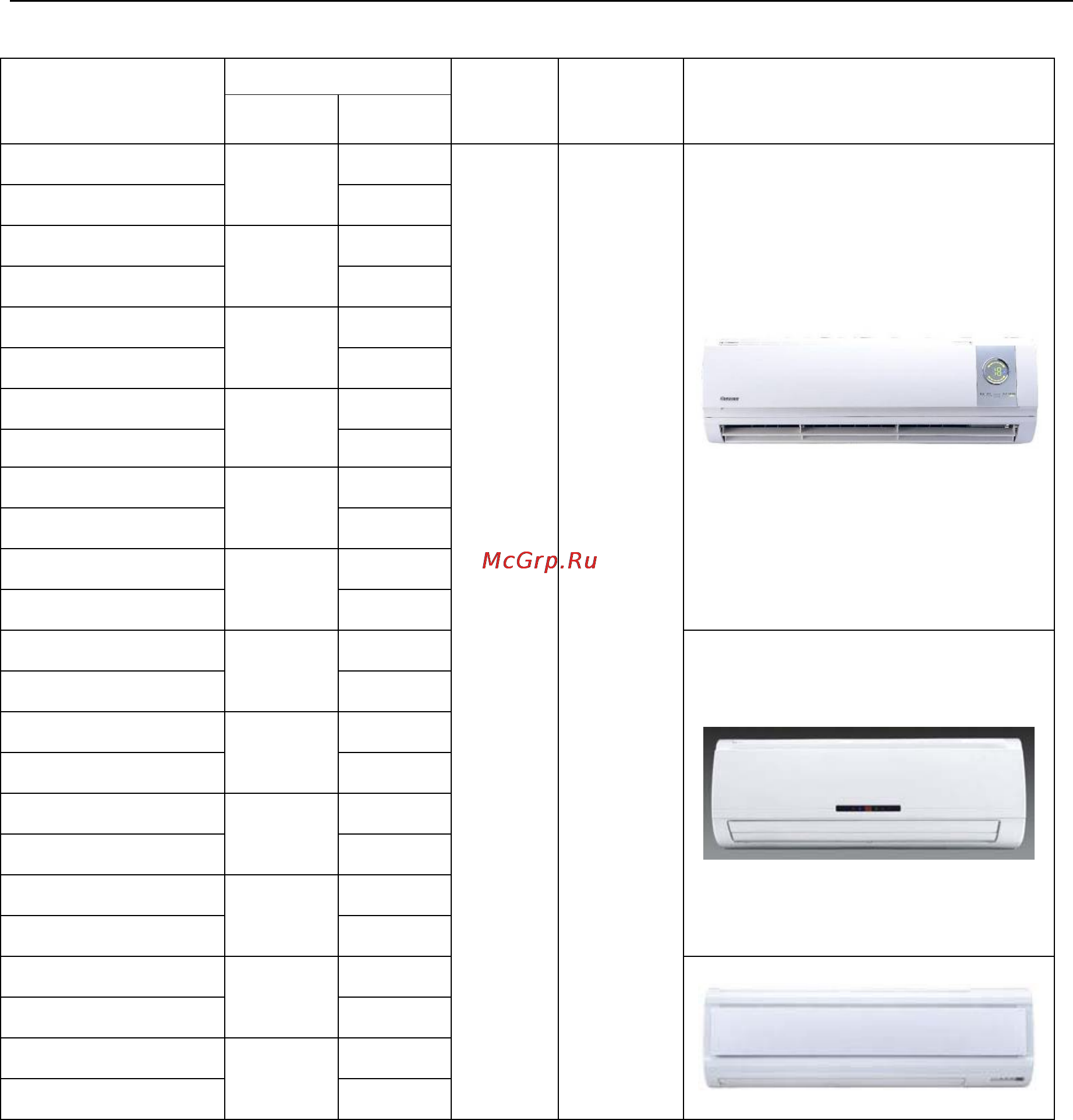

Dc Inverter VRF plus Water Heater Solution Service Manual PRODUCT
8
1.2.6Wall mounted type
Conversion Formula: Btu/h=kW×3412
Model
Capacity
Ref
Power
Supply
Appearance
Cooling
(Btu/h)
Heating
(Btu/h)
GMV-R22G/NaB-K
7507
8530
R410A
220~240V
~
1Ph~50Hz
GMVL-R22G/NaB-K /
GMV-R28G/NaB-K
9554
10919
GMVL-R28G/NaB-K /
GMV-R36G/NaB-K
12284
13649
GMVL-R36G/NaB-K /
GMV-R45G/NaB-K
15355
17061
GMVL-R45G/NaB-K /
GMV-R50G/NaB-K
17061
19790
GMVL-R50G/NaB-K /
GMV-R56G/NaB-K
19108
21496
GMVL-R56G/NaB-K /
GMV-R22G/NaC-K
7507
8530
GMVL-R22G/NaC-K /
GMV-R28G/NaC-K
9554
10919
GMVL-R28G/NaC-K /
GMV-R36G/NaC-K
12284
13649
GMVL-R36G/NaC-K /
GMV-R45G/NaC-K
15355
17061
GMVL-R45G/NaC-K /
GMV-R71G/Na-K
24226
27297
GMVL-R71G/Na-K /
GMV-R80G/Na-K
27297
30709
GMVL-R80G/Na-K /
