Dc Inverter VRF plus Water Heater Solution Service Manual CONTROL
120
7.3.1.4 Centralized Control Cabinet (user provided parts)
1）Function Instruction:
z It can put the communication modules together for convenient centralized management and
reliable operation.
2）Dimension:
z The following dimension is for reference. The cabinet is designed according to 10 communication
modules into. If more modules are needed, the cabinet should be designed once again. The internal
structure should accord to actual state.

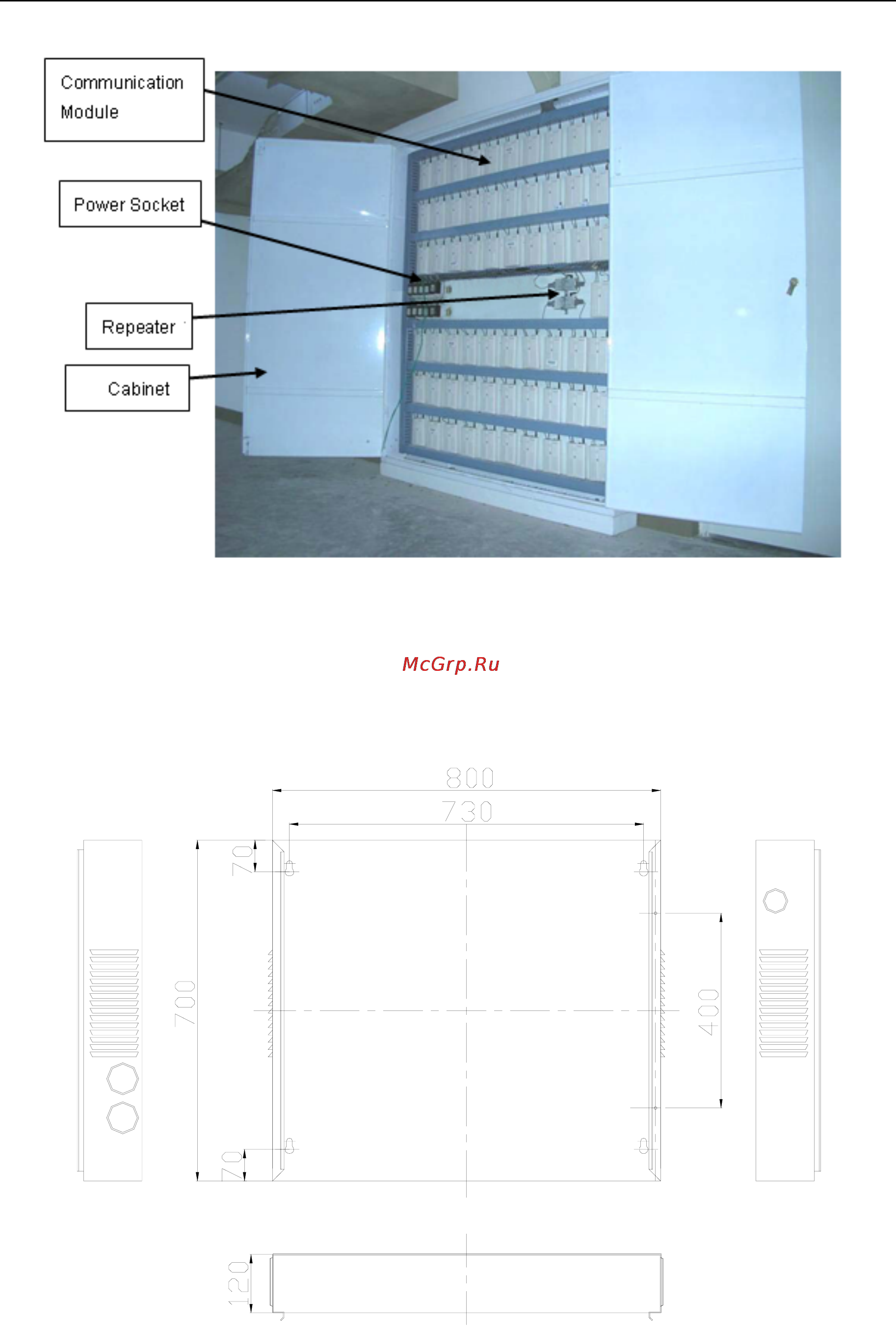

The external dimension of the cabinet (Unit: mm)
