Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
144

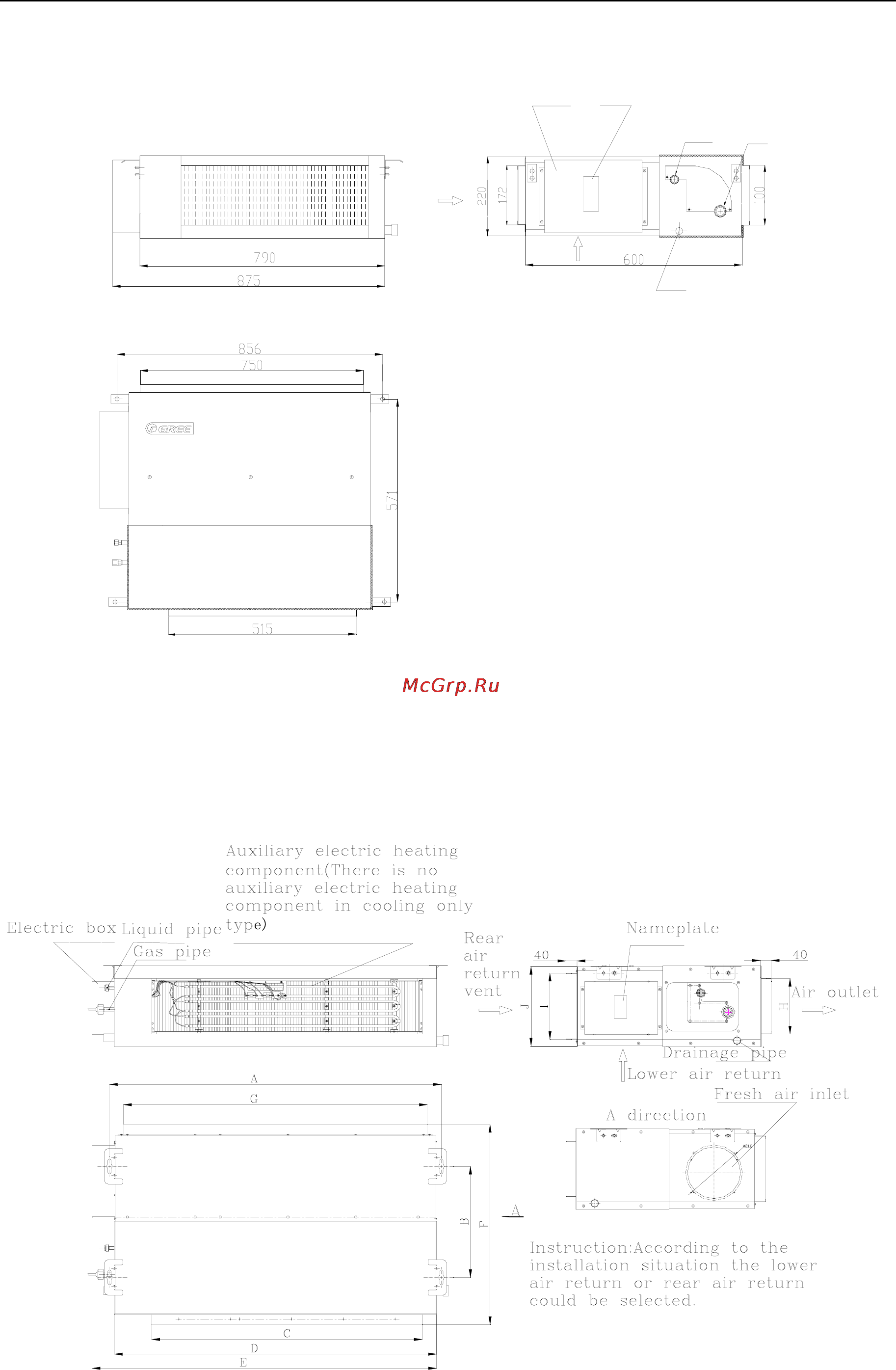

1.The following figure is applicable to the indoor units of
GMV(L)-R22P/Na-K, GMV(L)-R25P/Na-K, GMV(L)-R28P/Na-K, GMV(L)-R32P/Na-K,
GMV(L)-R36P/Na-K，GMV(L)-R40P/Na-K,
Rear air
return vent
Drainage pipe
Electric box
Nameplate
Gas pipe
Liquid pipe
Lower air return
2.The following figure is applicable to the indoor units of
GMV(L)-R45P/Na-K, GMV(L)-R50P/Na-K, GMV(L)-R56P/Na-K, GMV(L)-R63P/Na-K,
GMV(L)-R71P/Na-K, GMV(L)-R80P/Na-K, GMV(L)-R90P/Na-K, GMV(L)-R100P/Na-K,
GMV(L)-R112P/Na-K, GMV(L)-R125P/Na-K, GMV(L)-R140P/Na-K
