Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
152
hose at the outlet vent by bolt.
3 Adjust the unit to the suitable installing place. (Refer to the fig.2)
4 Check if the unit is horizontal.
Inner drainage pump and bobber switch are included in the indoor unit☆ . Check if 4 angles of
each unit are horizontal by water level. (If the unit is slant toward the opposite of the coagulate
water flow, there may be malfunction of the bobber switch and leading water drop.)
5 Remove the gasket anchor board used to prevent gasket breaking off and tighten the nut on it.
6 Remove the installation cardboard.

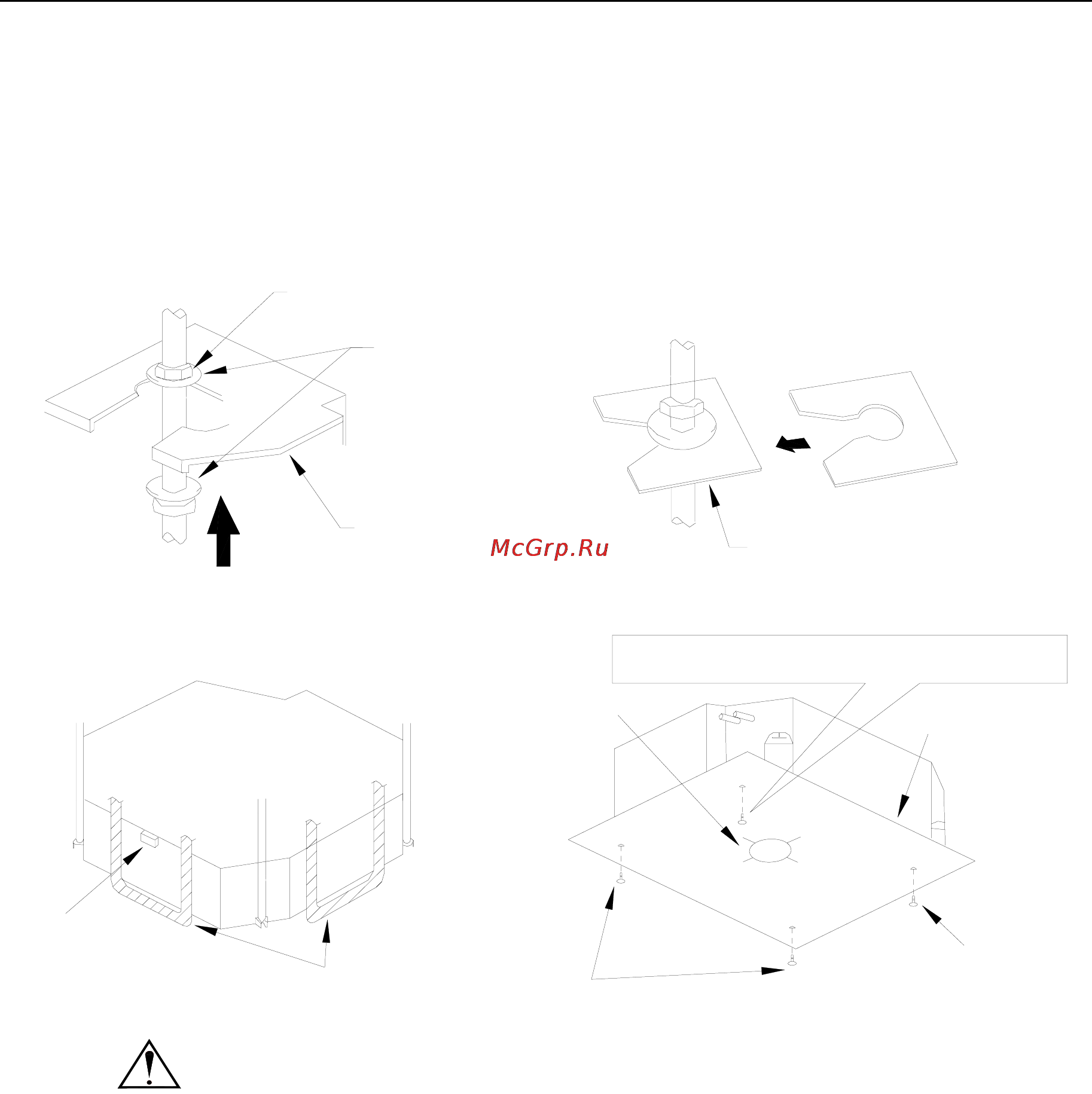

[Fix the hoisting stand firmly]
Water lever
Tighten (double nuts)
Bolt of one of the angle of outlet pipe is fix
on the angle of the drainage slot
[Fix the install cardboard]
[
Fix the gasket firmly]
Polyethylene pipe
Bolt （attachment）
Center of the ceiling
opening
Bolt
（attachment）
Install cardboard
Gasket anchor board
(attachment)
Nut (supplied at scene)
Hoisting stand
Gasket (attachment)
Insert
Note！
● Please do tighten the nuts and bolts to prevent air conditioner breaking off.
● Connect the refrigerant pipe
When connect☆ ing the pipe to the unit or remove it from the unit, please do use both spanner
and torque wrench. as shown in fig.3.
When☆ smearing both inside and outside of the flare nut with antifreezing motor oil, screw it by
hand and then tighten it with spanner.
Refer to form 1 to check if the wrench ha☆ s been tightened (too tight would mangle the nut and
lead leakage).
Examine the ☆ connection pipe for gas leakage, and then take the treatment of heat insulation, as
shown in the fig.3.
Only use median sponge to entwine the wiring interface of the gas pipe and heat preservation ☆
sheath of the gas collection pipe.
