Dc Inverter VRF plus Water Heater Solution Service Manual INSTALLATION
160
>150
>150
>2000
ground
>150
ground
>3000
wall
ceiling ceiling
unit:mm
Important Notice:
The unit must be installed by the professional personnel according to this install instruction to
ensure the well use.
Please contact the local authorized repair department of Gree before installation. Any
malfunction caused by the unit that is installed by unauthorized center would not be treated on
time by the inconvenience of the business contact.
It should be guided under the professional personnel when the air conditioner unit is moved to
other place.
6.4.3 Installation demonstration
Fig.1

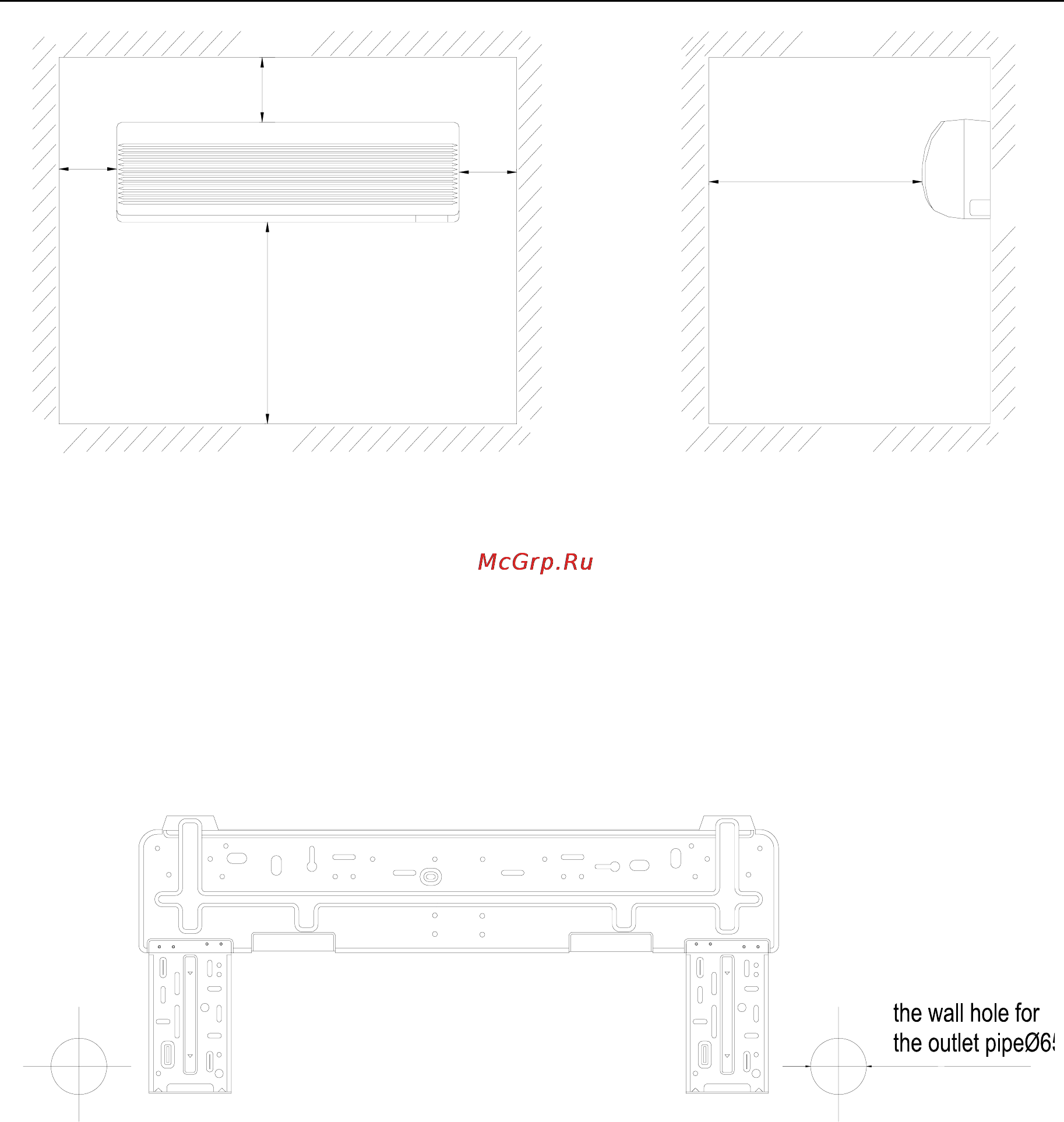

1. Find the horizontal position by seton method; since the drainage hose is on the left side,
adjust the rear panel to make its left side a little bit lower.
2. Fix the rear panel on the wall by bolt.
3. After installing the rear panel, pull it by hand to check if it is firm enough. The hang panel should
support the weight of an adult (60KG), and the weight shared by every bolt for steady should be
fairly even.
4. The diameter showed on the fig.1 is 65mm.
Installation the Wall Mounted Type indoor unit
Make the piping hole (Φ65mm) in the wall at a slight downward slant to the outdoor side. The
center of the hole should be determined refer to Fig.1
Insert the piping -hole sleeve into the hole to prevent the connected piping and wiring from being
damaged when passing through the hole.
